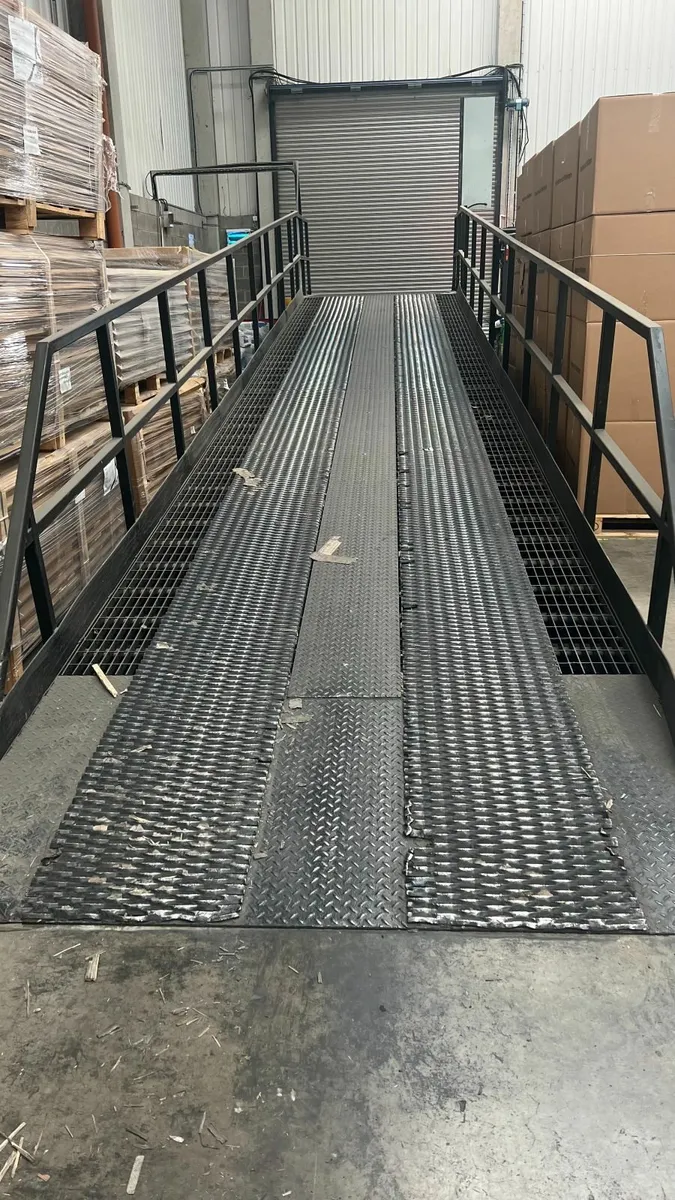

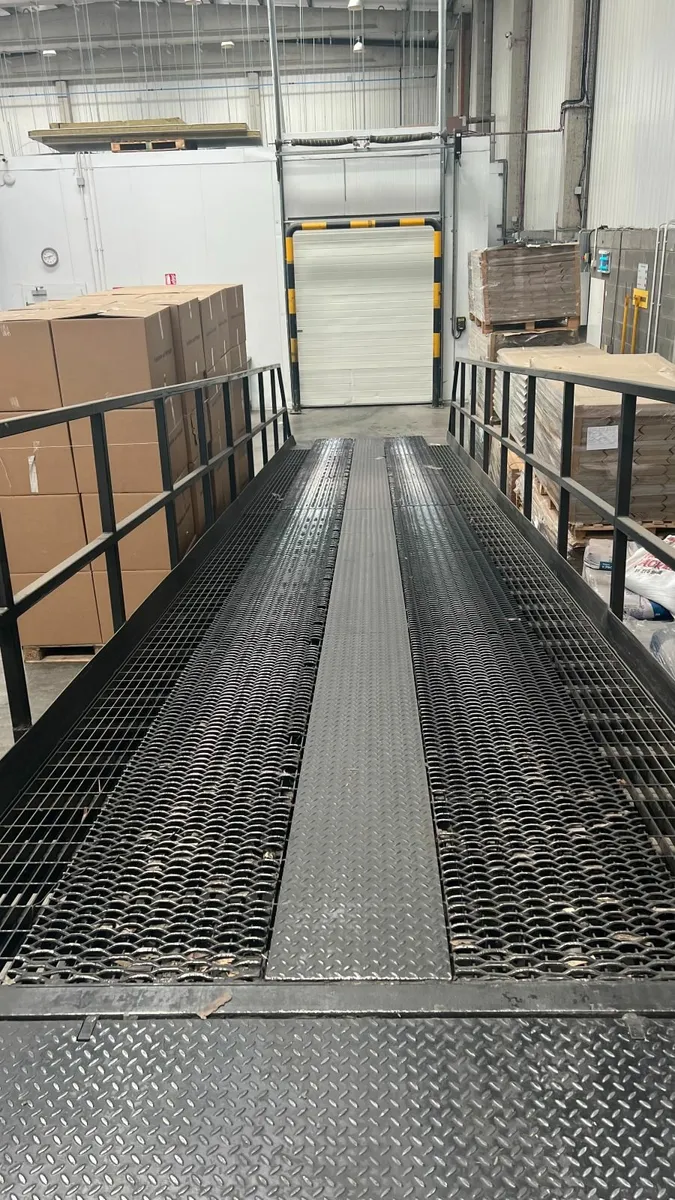

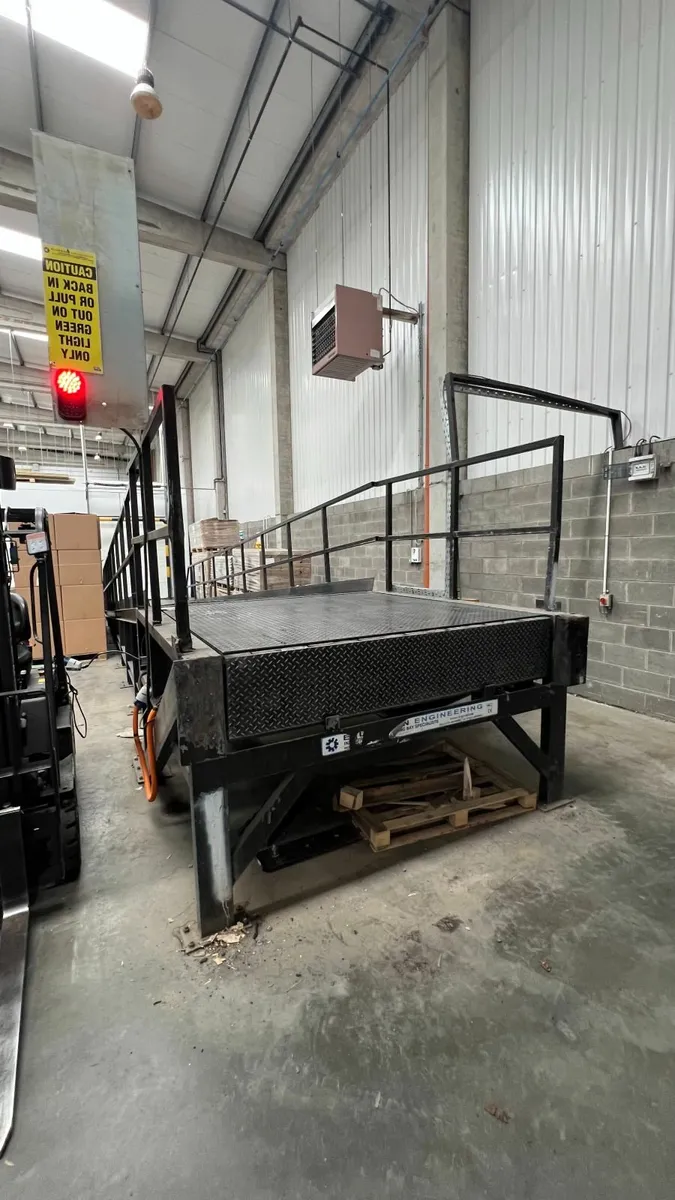

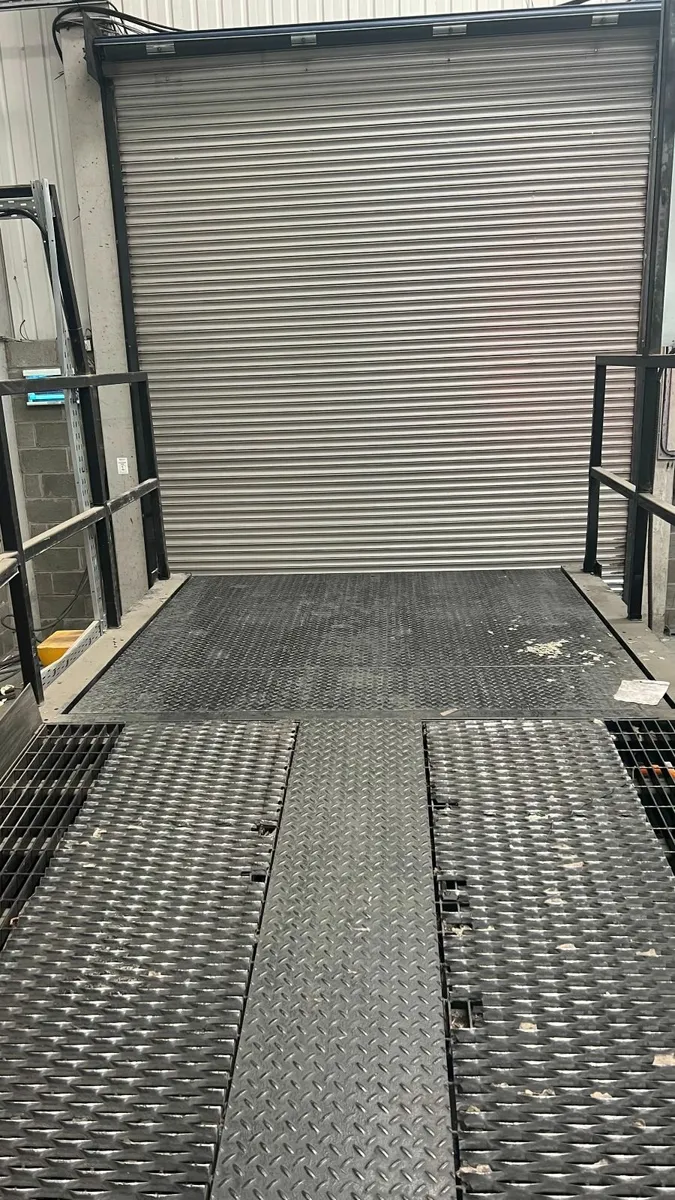

Heavy-Duty Free-Standing Dock Leveller and Ramp

Upgrade your loading operations with this robust, industrial-grade Free-Standing Dock Leveller and Ramp, engineered by Ellickson Engineering to meet the highest standards of safety, durability, and performance. Key Features & Dimensions: Total Length: 12,000 mm Width: 2,375 mm (Ramp), 2,350 mm (Leveller) Height: 1,300 mm Gradient: ≤ 7 degrees for safe forklift access Construction: Heavy-duty steel frame with IPE 100 brace beams Flowforge grating floor with 120x60x5 RHS supports at 350 mm centers 6 mm chequer plate (1,250 mm long) for added durability Explamet anti-slip grating (600 mm wide) for forklift traction Safety & Compliance: 1100 mm high handrails on both sides (not shown in drawings) M16 anchor bolts for secure installation Dock bumpers and kick plates included ISO 9002 quality assured Finish:Painted black Power Requirements: 16 AMP, 3-phase supply with isolator Integrated control panel mounted on the ramp
