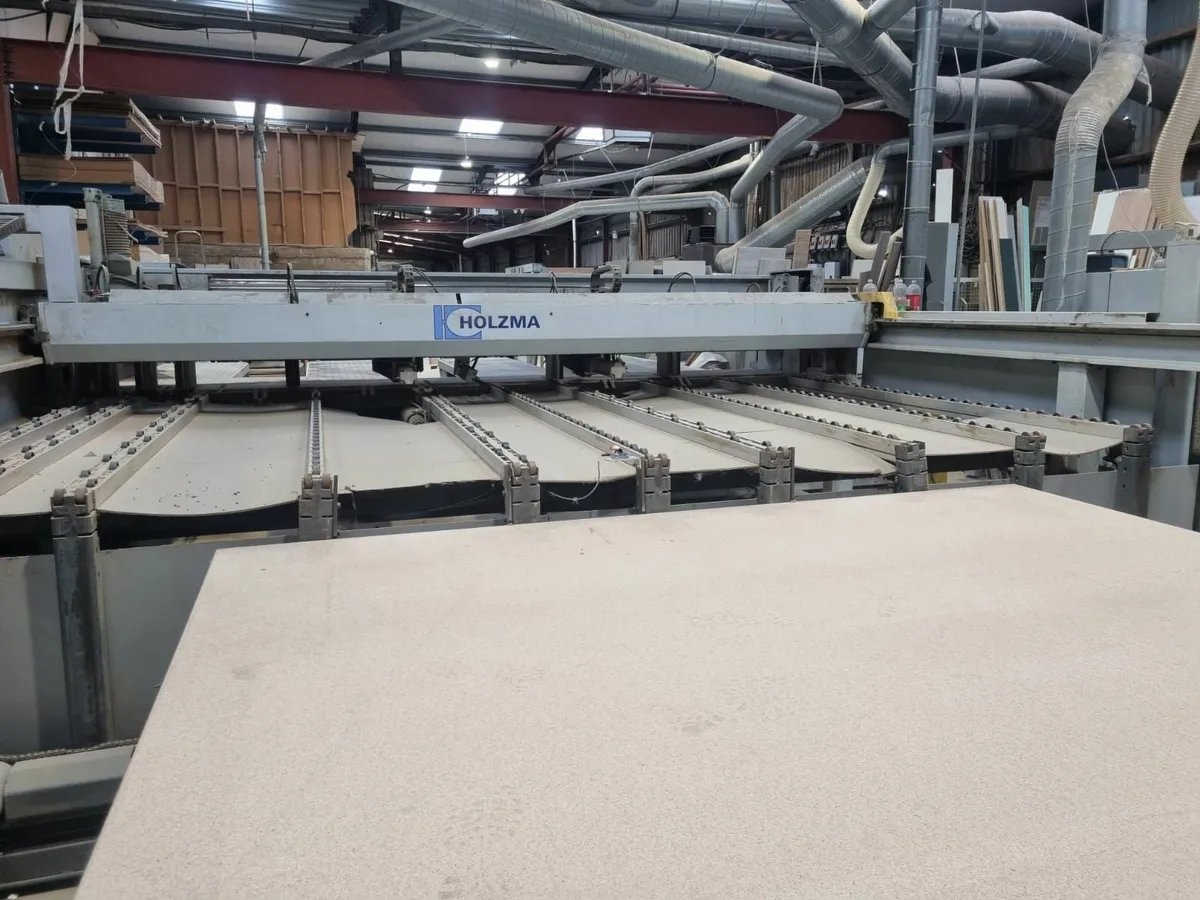

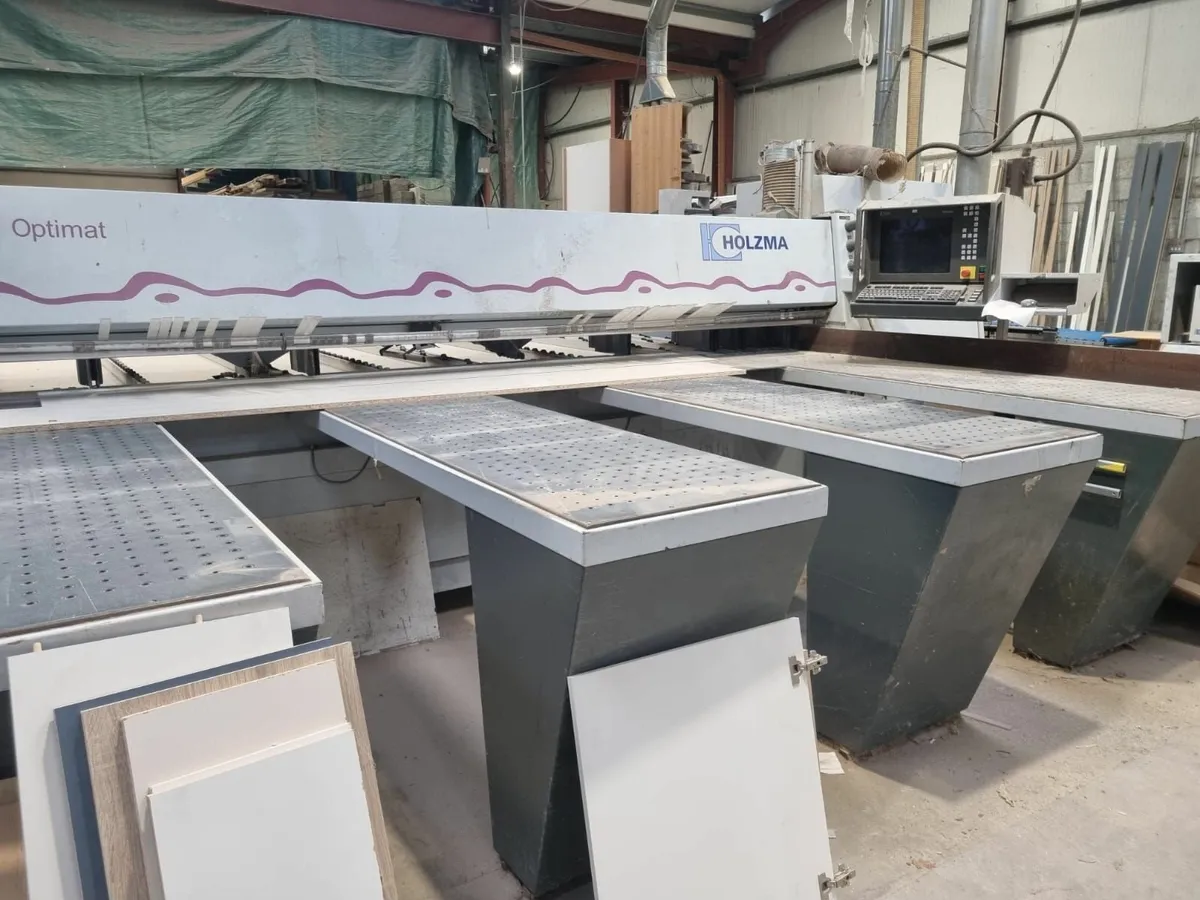

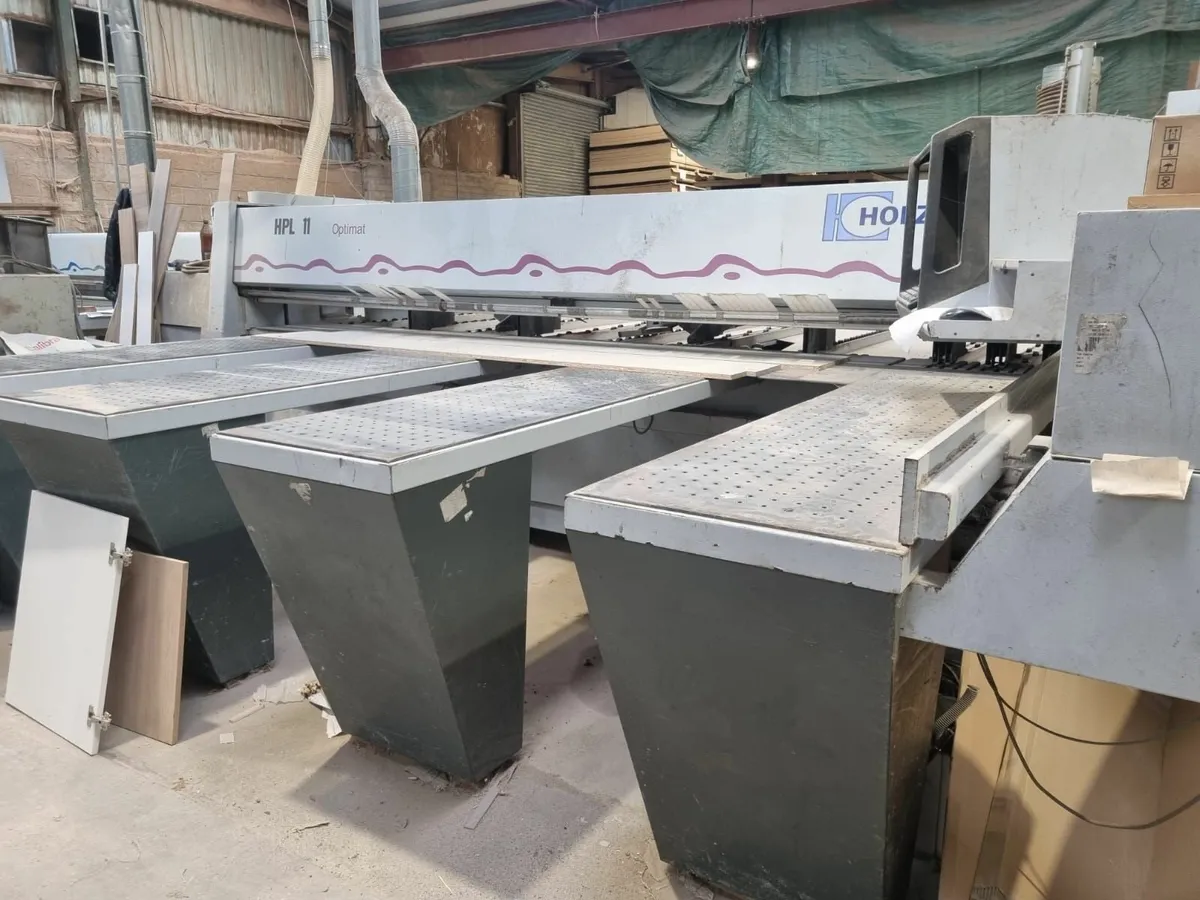

Homag HPL11 Beamsaw with loading table

Maximum panel size: 4300 x 2200 mm Maximum length of the panel that can be cut: 4300 mm Main saw diameter: Ø450X4,8 (3,5) XØ60 72 teeth. Plotter diameter: Ø180X4.8-5.8 (3.5) XØ45 36 teeth. Cutting height: 125 mm Main saw motor power: 18 kw Plotter Motor Power: 2.2 kw Saw Trolley Motor Power: 1.5 kw Cutting speed: Min: 5 m / min, Max: 120 m / min. Saw Trolley Return Speed: 120 m / min. Number of Holder: 8 Holder opening: 130 mm Retaining depth 30 mm Thin Panel Counting Unit feeding height: 100 mm Thin panel counting thickness: Counts materials between 3mm / 8mm. It serves to count the curved plates correctly. Note: This feature is not available in every Holzma. On machines without this system, the machine does not count correctly if the lift is fed from the elevator in thin curved panels (3 mm Back). This may be taken as 18 or 12 when the sample needs to take 15 plates. In this system, 15 takes 15. Program car motor power: 3.8 kw Program car feed rate: 1: 25 m / min. Program car accuracy: 0.05 mm Loading elevator max. Freight: 7 Tonnes Lift Hydraulic system Engine power: 4 kw Lift feed speed: 2.6 m / min Elevator side feeding system: Yes. (I made the machine specifically during the order) This feature does not exist in its counterparts. You can make the side feeding conveyor and integrate directly to the machine. The whole system is compatible with the next side feed. Air Cushioned Table dimensions and count: 2160 x 650 mm 4 pieces, separate fan for each table Airbag fans speed adjustment: YES Roller system to prevent wear of Air-Padded Table Bakelets: YES Main Saw And Plotter Quick Change System: YES Operating system: CADmatic 4 and Windows XP Optimization program: YES. CutRite V7 Cad (optional) Thermal Labeling: VAR (Every size label can be programmed.) It automatically prints the track information in the program to the parts that are oprimized in the Cut-Rite program. You have the option of pressing 1 piece to each piece or pieces of the same size in the cut. This
