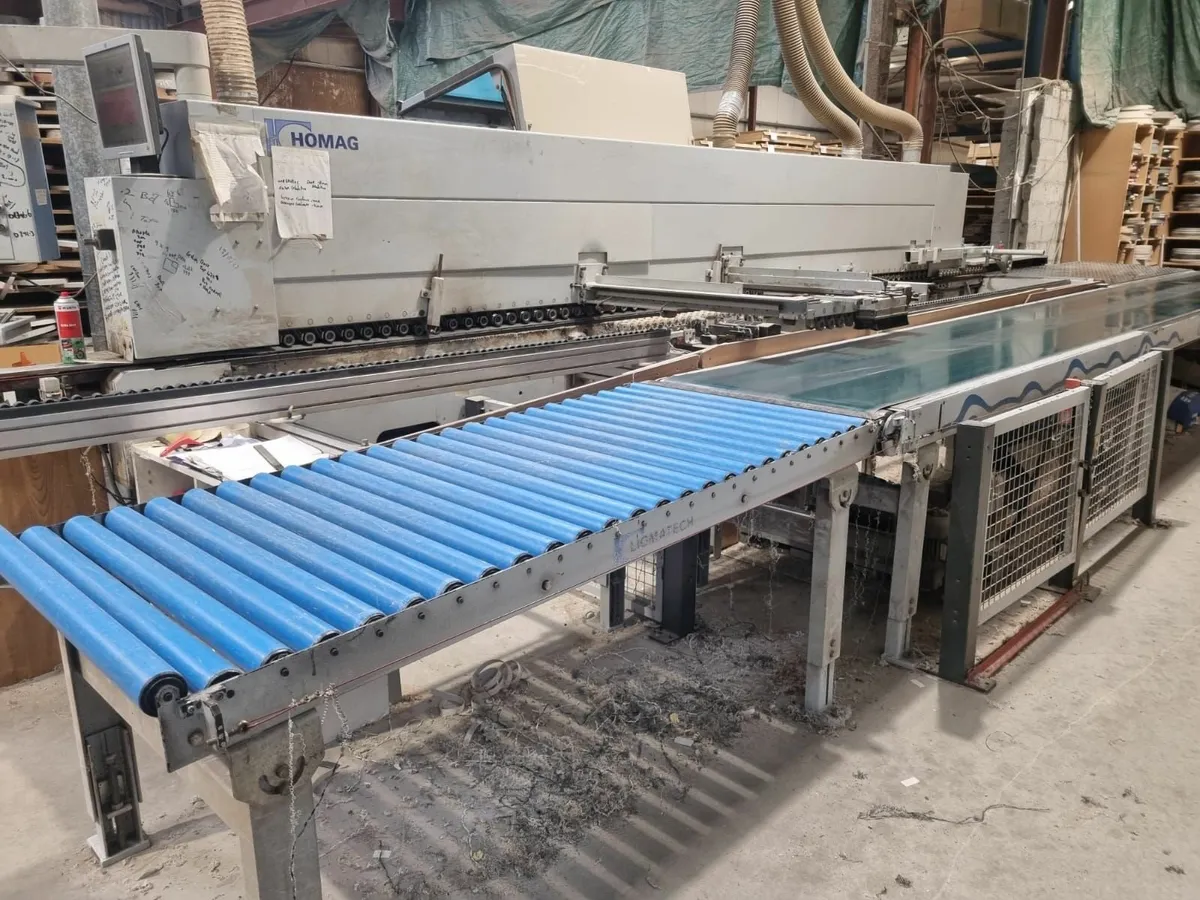

Homag KAL310 Edgebander

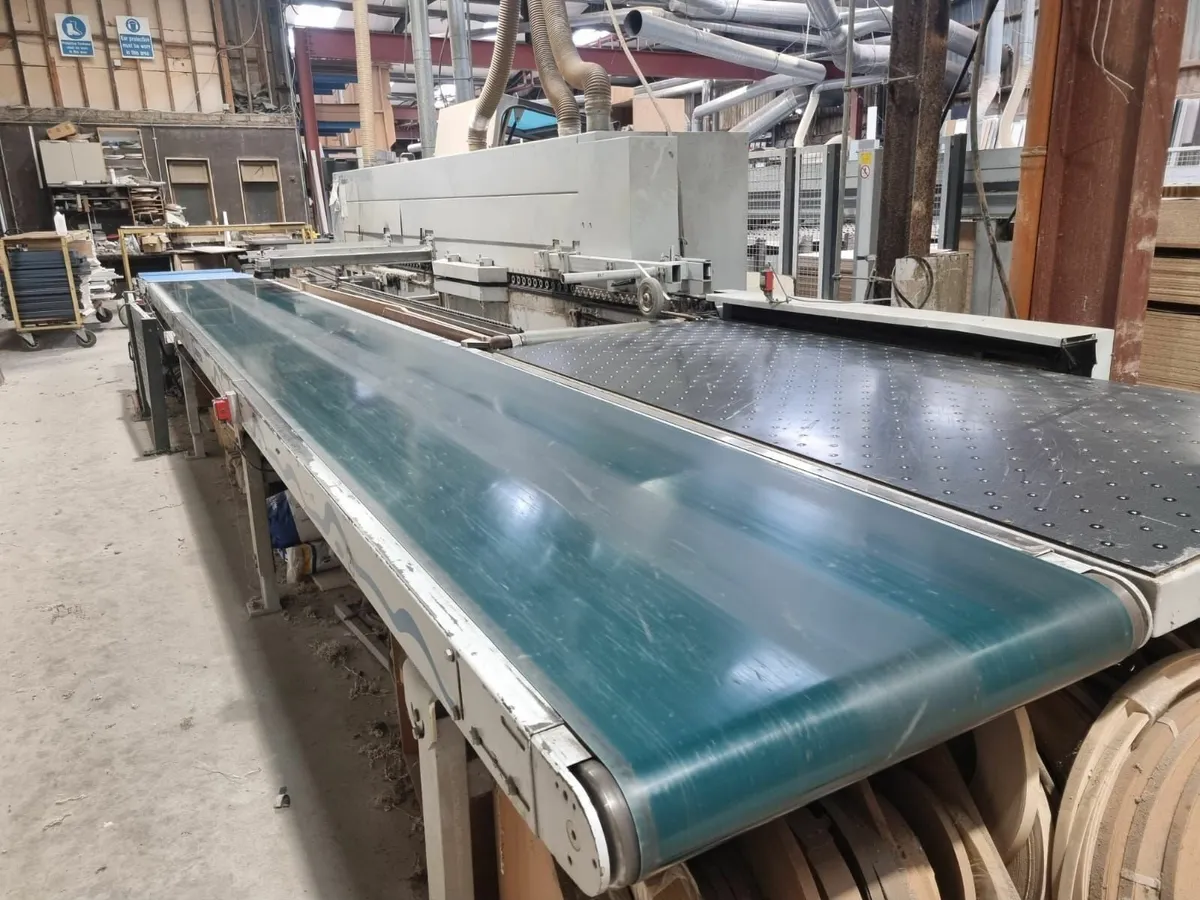

SINGLE-SIDE EDGE BANDER (LEFT-side) Edges (band in rolls) thickness (Min/Max) mm 0,3 / 3 Panels thickness (min/max) mm 12 / 80 Edges thickness in stips / lippings (min/max) mm 0,4 / 20 Numerical Control NC21 Feeding speed m/min 18 - 25 Top pressure system with rubber belt In-feed fence, adjustable by N.C. Pre-milling Unit (vertical joint trimmers) 2 x Kw 3 Glueing Unit (Hot Melt Glue + Quick Melt system) A20 + A34 Band Pressure zone "C" Edge coils supporting unit (No. 1 reel) Bobel Iz Tustw E Rqasdg Snipping (end-cutting) WK 14 (KW 0.8x2 motors at RPM 12000), pneum. adjust. chamfer/straight Rough Trimming unit Optimat (2 x Kw 1,5) Fine Trimming unit MF20 (2 x kw 0,55) Corners Rounding (contour trimming) Unit FF12 (4 x Kw 0,4) CNC (WD40) Free space for Profile Scraping unit Finish processing unit ( Glue scraper + Buffing unit) F Also ZHR-05 Return conveyor system
