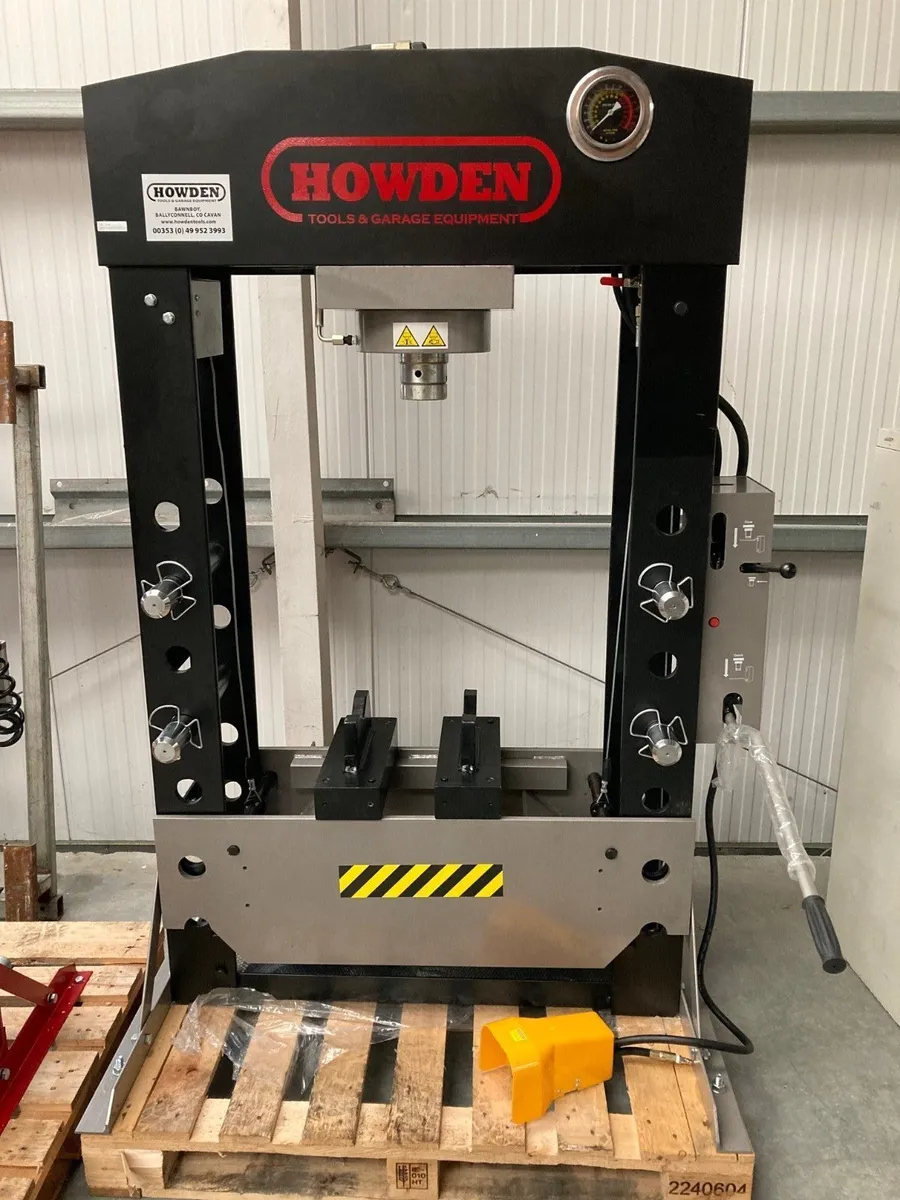

Hydraulic Shop Press 100Ton Heavy Duty

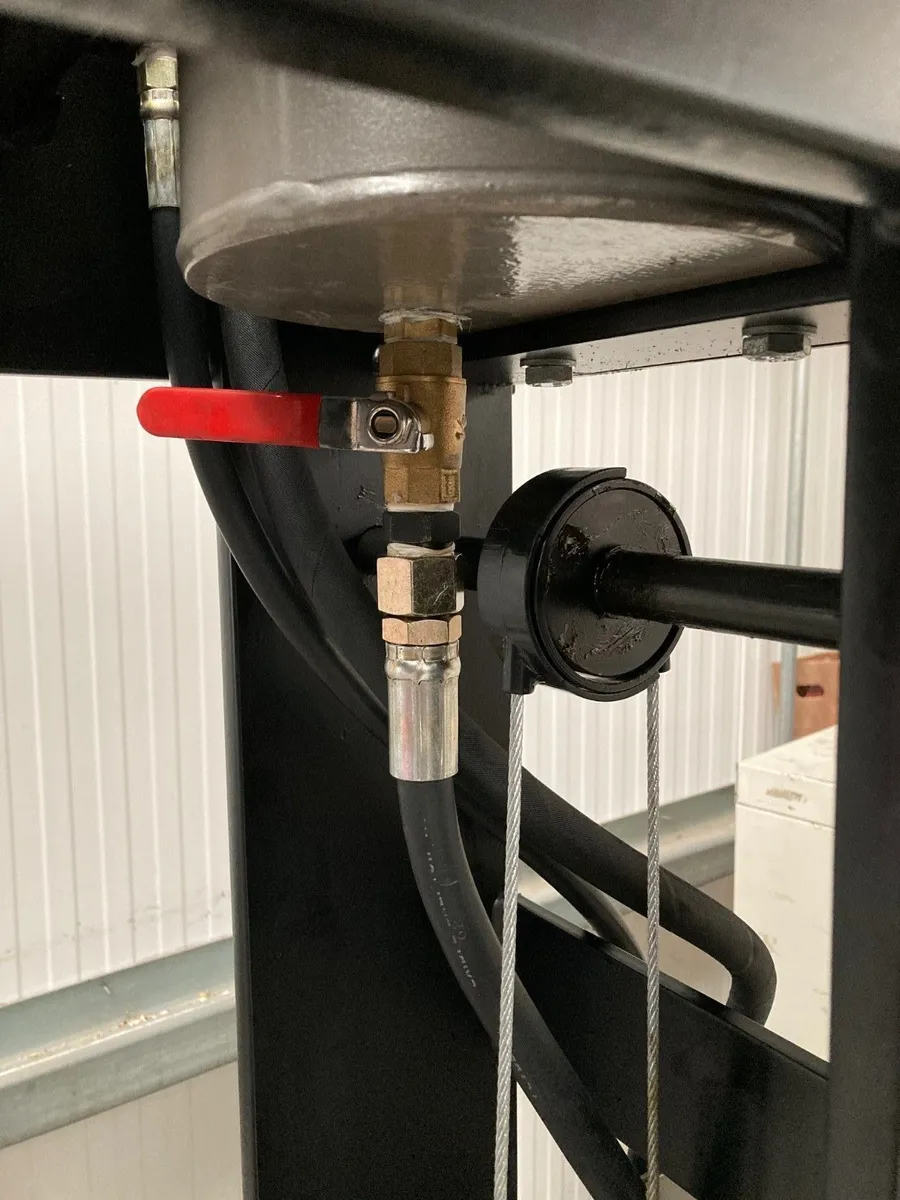

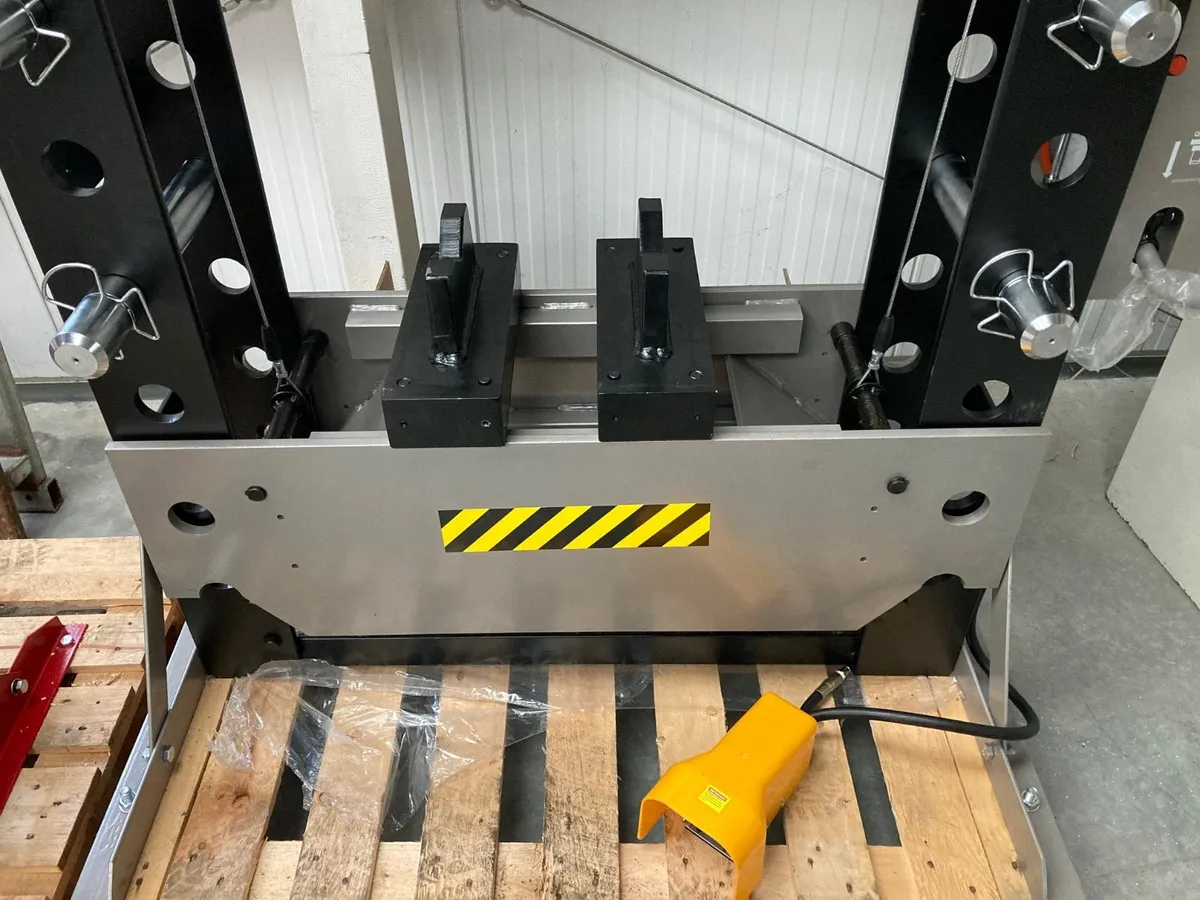

100 Ton Hydraulic Shop Press: These heavy duty machines are designed for the automotive, truck, fleet and industrial repair shops where pressing, bending, straightening, forming and holding are required. Ideal machines for the removal and installation of bearings, wrist pins, universal joints, pulleys etc. Features: Double Acting Ram. The chrome piston on the Ram is 93mm diameter and can be moved left of right by winding a handle. The table can be lowered or raised by a winch system and each of the pins that hold the table at a particular height are 55mm diameter heavy duty steel. The press is coated with a high quality powder coated finish. Specifications: Capacity: 100 tons Press operation: Pneumatic 3 speed pump ~ 2 x handle speeds , 1 x air foot pedal speed Ram stroke: 300mm Side stroke: 250mm Working range: 93 ~ 993mm Bed width: 787mm Air pressure: 0.75 ~ 0.85Mpa Air inlet: 1/4" NPT Overall height: 1840mm Overall width: 1200mm (steel angle floor frame) Overall depth: 1000mm (steel angle floor frame) Inside width between pillars: 785mm Nett weight: 622Kgs Gross weight: 766 kg Oil capacity: 5.6ml These are extremely well built machines and make light work of the most difficult tasks. SALES / SERVICE / PARTS / WARRANTY Next day nationwide delivery on all orders placed before 5pm. For more Information on equipment we stock please see www.howdentools.ie Howden Tools & Garage Equipment Ltd Bawnboy Ballyconnell Co Cavan TELE: 00353 49 952 3993 Press Option no. 2 MOB: 00353 87 6455736 After Hours
