Hyundai 18kW / 22kVA 1500rpm Single Phase Die

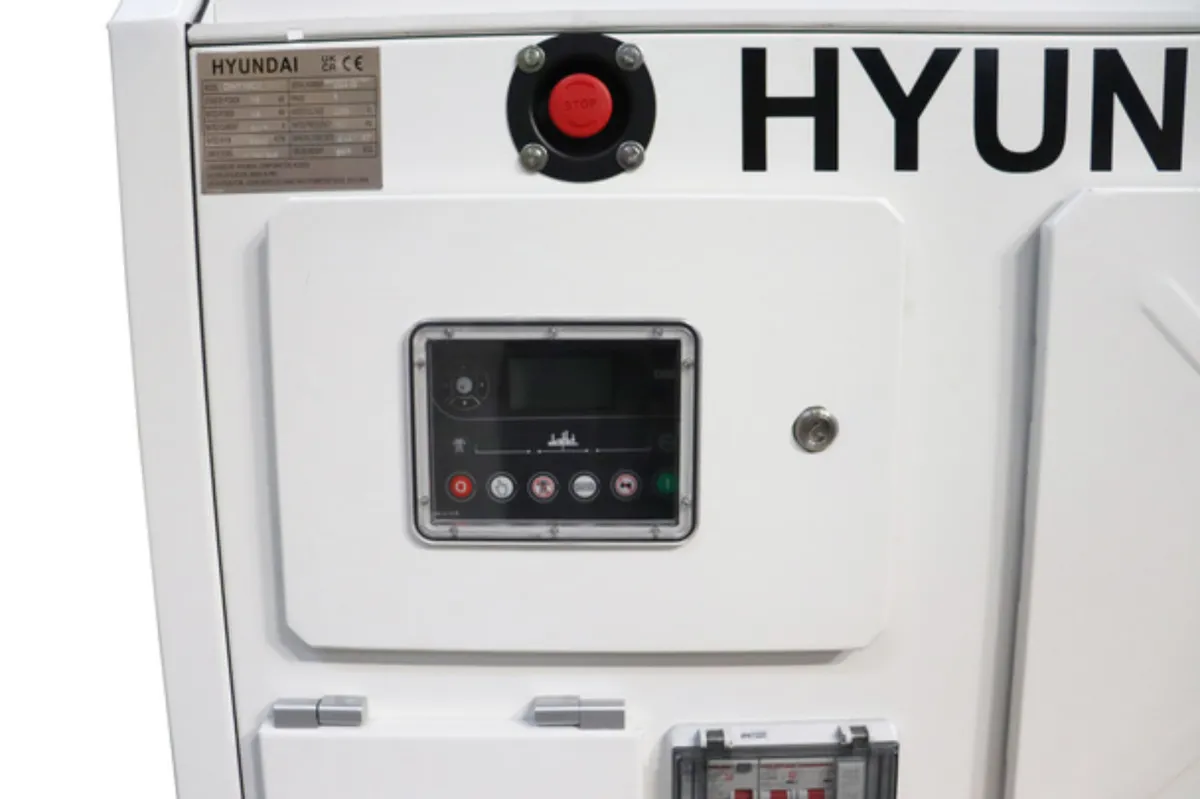

2 WEEK LEAD TIME FROM TIME OF PURCHASE Compact single-phase diesel generator: Produces up to 22kVA of power Powered by a 1500rpm engine: Extends the lifespan of the generator Fitted with an AVR alternator: Able to produce a clean energy output ATS compatible: Automatically transfers power to the generator in the event of a power cut Deep Sea Electronics DSE6120 control panel: Allows you to easily monitor your generator Peace of mind: 12 month Hyundai warranty Model DHY18COM-1 Rated/Prime kVA* 22 Rated/Prime kW 18 Max/Standby kVA* 20 Max/Standby kW 16 Phase Single Voltage 230 Connection Method(s) Busbar Rated Speed (RPM) 1500 Frequency (Hz) 50 Max/Continuous Current (Amps) 69.6 Power Factor (Cosφ) 1 Fuel Type Diesel Fuel Tank (Litres) 40 Runtime (Hours) @ 100% Load 10 Noise Level @ 1m 75% load (dB) 79.5 Noise Level @ 7m 75% load (dB) 70 Hyundai Diesel Engine Model 4DW91-29D Power Output (kw) 16 Displacement (CC) 1809 No. of Cylinders 4 Displacement (Litres) 1.809 Recommended Oil Type SAE 15W40 Oil Capacity (Litres) 8 Oil Filter Part No. 1012015AB01-0000 Aspiration Natural Fuel Regulation/Governor System Electronic Fuel Consumption (100% Load) [Litres] 4.94 Fuel Filter Part No. 1117010-B01-0000B Cooling Water Alternator Model GP184E Breakers Delixi 125A Alternator Type Brushless Voltage Regulation AVR Air Filter Part No. DHP-0029-04 Net Weight (kg) 520 Gross Weight (kg) 597 Dimensions L x W x H (mm) 1600 x 740 x 825 Battery (Ah) 1x12V-60Ah ATS / MTS Compatible Yes Control Panel DSE 6120 MKIII Model EAN 5059608212549 Warranty 1 Year / 1000 Hours
