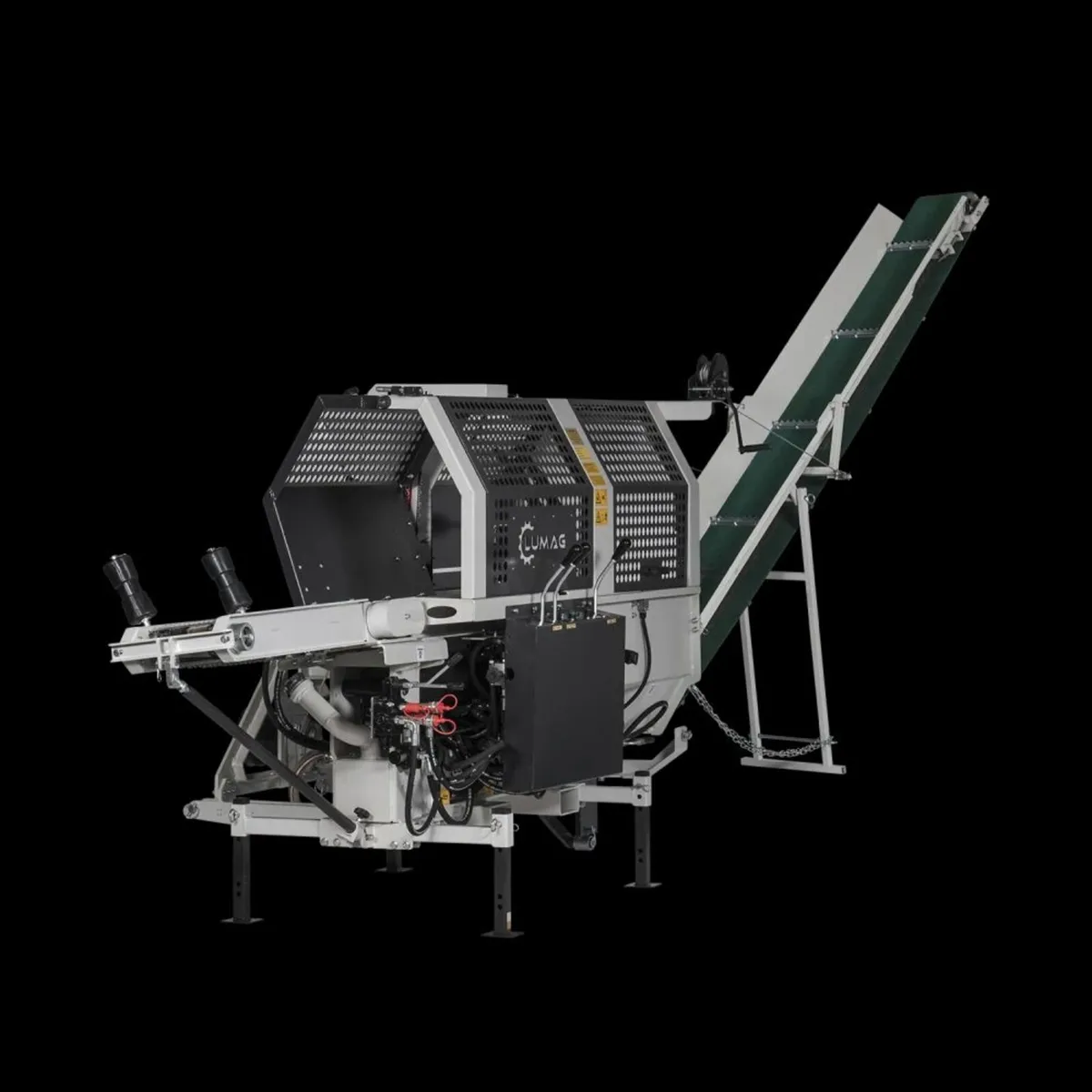

LUMAG SSA-400-12PRO/Z PTO

Lumag -SSA-400-12PRO/Z automatic PTO-powered wood splitter NEW MODEL Price €8,292.68 excl. 23% vat. €10,200.00 incl. vat. New generation SSA-400-12PRO The SSA-400-12PRO series brings a number of design improvements. The most important ones are reinforced carriers on both conveyors, a rotating output conveyor, a flexible log stop, a new holding system and a cleaning hole in the splitting channel . The manufacturer also offers optional accessories, such as a 6- or 8-piece splitting cross, log lifter and log feeder . Cutting, splitting and transport in one machine The SSA-400-12PRO/Z combines the entire firewood production process into one machine. The log is hydraulically fed to the sawmill, cut to the required length, then split with a force of 12 tons and the finished wood automatically continues onto the output conveyor. This significantly reduces the amount of manual handling and increases productivity when processing larger amounts of firewood. TECHNICAL PARAMETERS Parameters Value Model SSA-400-12PRO/Z Drive Tractor PTO / power take-off shaft Required tractor power approx. 20 HP PTO speed max. 540 rpm. Cleavage force 12 tons Trunk diameter 10–38 cm Max. splitting length 55 cm Cleavage cycle 8 seconds Working speed 11 cm/s Reverse speed 18 cm/s Chainsaw hydraulic Chainsaw drive max. 5800 rpm at 250 bar OREGON chain 65 links / 0.375" / 1.6 mm OREGON bar 45 cm PARKER double hydraulic pump max. 4000 rpm at 250 bar Hydraulic feed motor max. 40 rpm / 124 bar / 194 Nm Output belt hydraulic motor max. 70 rpm / 110 bar / 220 Nm Output conveyor L × W × H 3200 × 250 × 2200mm Conveyor speed 0.8 m/s Weight including conveyor 878 kg (755 + 103 kg) For more information 872414334 - -0861020777
