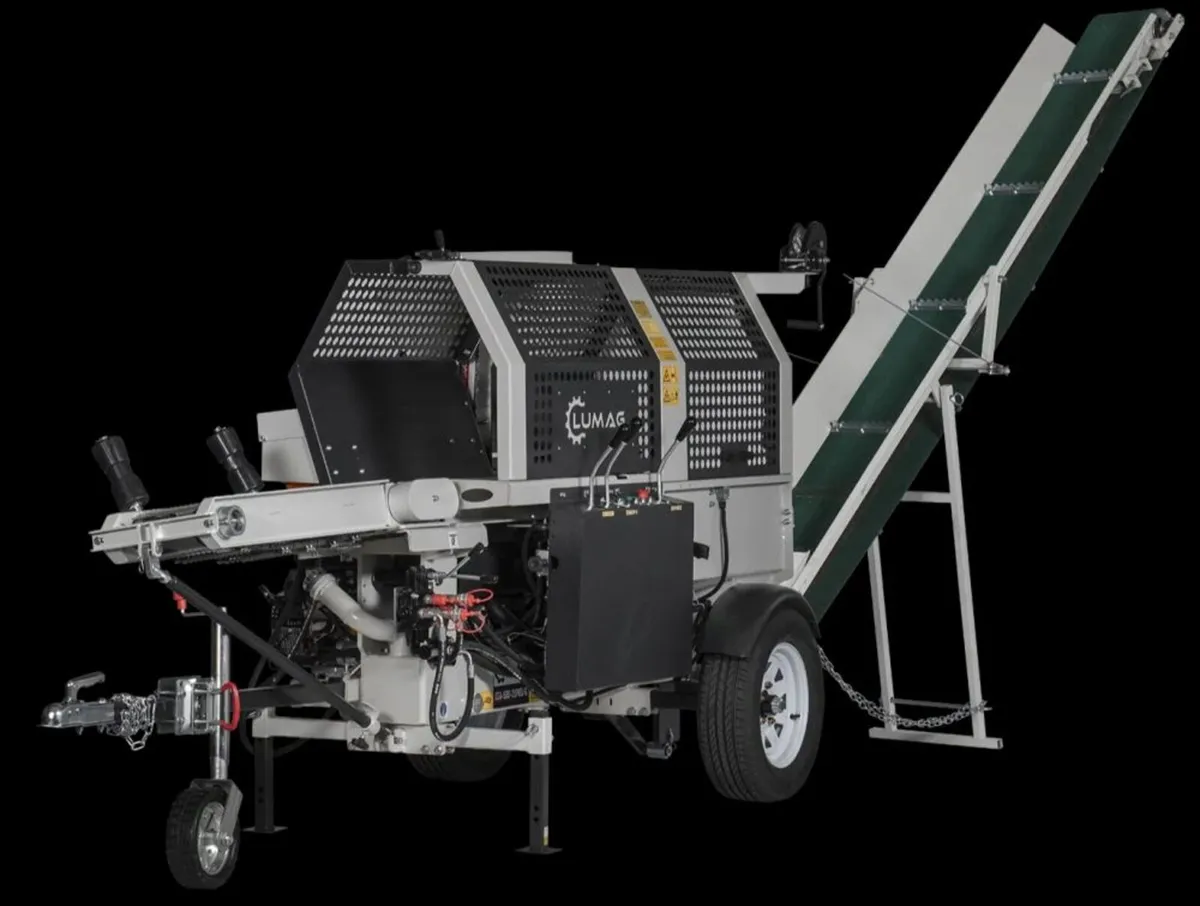

Lumag SSA 500 -20 PRO/G Hydraulic wood processor

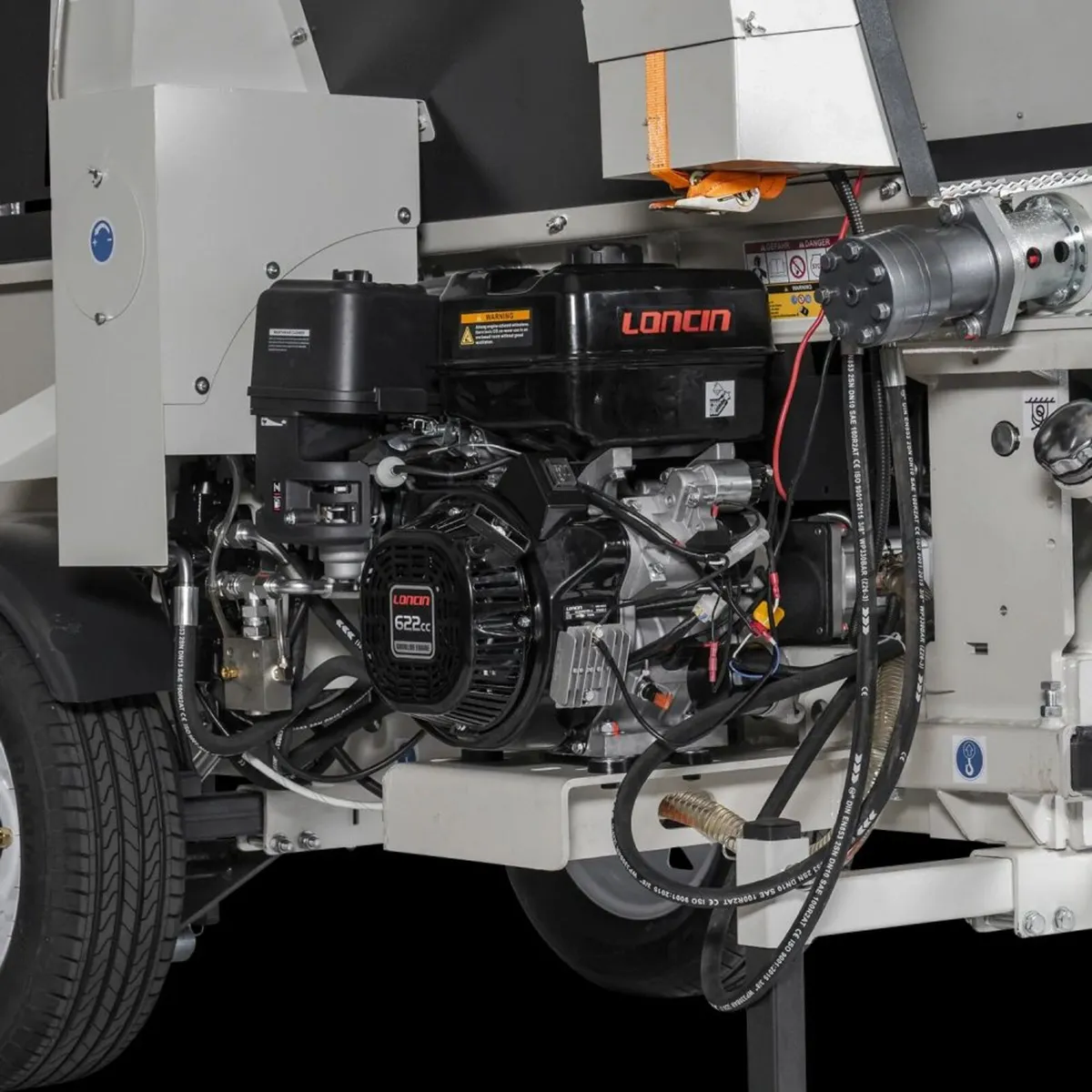

Lumag SSA500 -20 PRO/G hydraulic wood processor New Model RRP Price With petrol engine or PTO €10,500.00 excl. 23% vat. €12,915.00 incl. vat. SALE €9,890.24 excl. 23% vat €12,165.00 incl. vat. With electric motor €10,772.36 excl. 23% vat. €13,250.00 incl. vat. Complete specifications Technical parameters: Engine power 622 cm³, 13.0 kW / 17.5 hp Required tractor power – PTO speed max. – Hydraulic double pump (PARKER) max. 4,000 rpm at 250 bar Hydraulic motor of the output belt max. 70 rpm at 110 bar, 220 Nm Hydraulic feed belt motor max. 40 rpm at 124 bar, 194 Nm Chainsaw Hydraulic (PARKER) Chainsaw drive max. 5,800 rpm at 250 bar Chain (OREGON) 74 links, pitch 0.375, thickness 1.6 mm Bar (OREGON) 50cm Max. splitting length 61cm Max. log diameter 10–50cm Time of one splitting cycle 8 seconds Working speed 11 cm/s Return speed 18 cm/s Splitting force 20 tons Output conveyor (L × W × H) 3200 × 250 × 2200mm Conveyor speed 0.8 m/s Weight incl. conveyor 893 kg Machine packaging dimensions 2150 × 1000 × 1200mm Conveyor packaging dimensions 1900 × 450 × 680mm Features: Manual chainsaw lubrication with separate oil tank Simple log processing – cutting and splitting in one step Mechanical flaps to prevent material jamming New material removal system with reinforced carriers and height-adjustable output conveyor The output conveyor can be folded and secured for transport or storage Powerful drives (combustion engine, electric motor + PTO for the SSA50020PRO/EZ model) for fast work even with logs up to 50 cm in diameter Hydraulic/electric control of chainsaw, log holder and splitting cross adjustment for faster and easier work New holding claw system for more precise work New feed system with wider chain and reinforced carriers Internal LED lighting with on/off option For more info please call 0861020777
