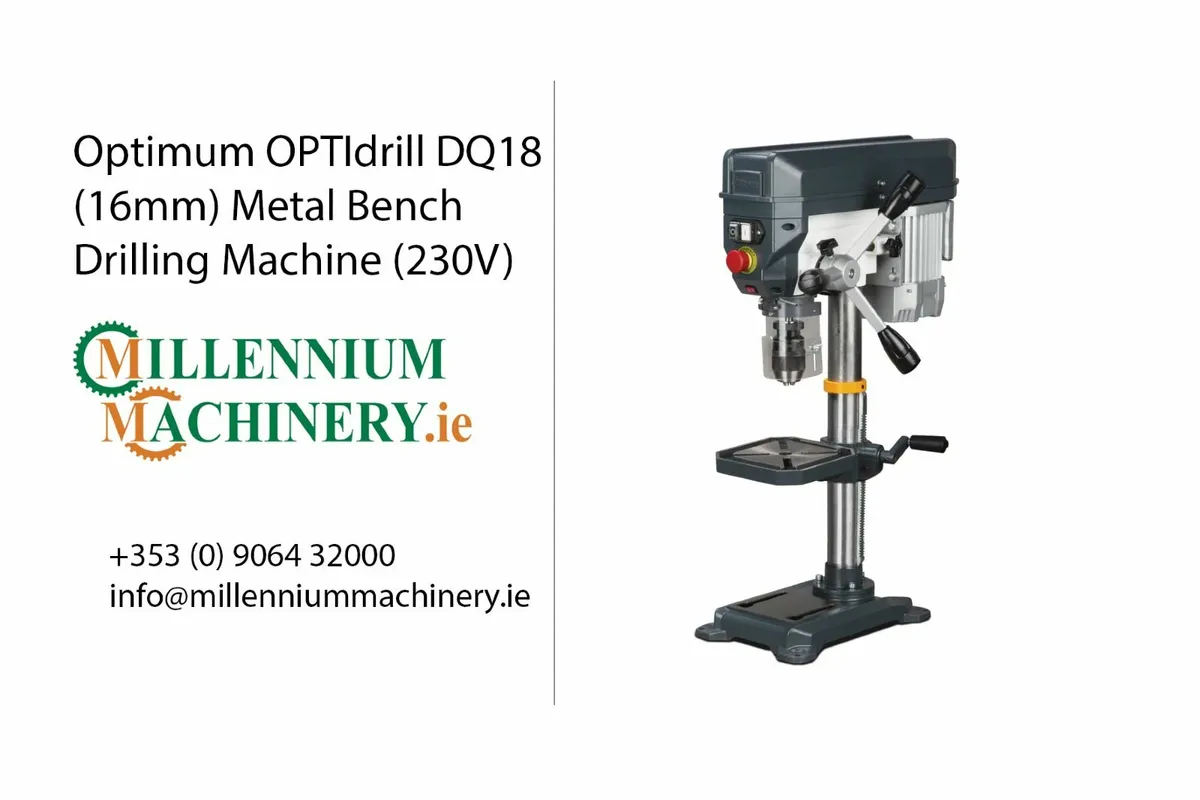

Metal Bench Drilling Machine DQ18

Inexpensive and reliable bench drill with V-belt drive. Compact, precise, and equipped with key safety and performance features for workshop use. Key Features: • Separate emergency stop switch • Measurement scale for drilling depth • Precisely machined, stable drilling table with T-slots & cooling water trough • Drilling table inclinable ± 45° and rotatable 360° • One-piece die-cast aluminium quill lever with soft-grip handles • Precision spindle drilling with ball bearings • Safety electrics 24 V DC • Guaranteed concentricity ≤ 0.03 mm (measured in drilling sleeve) • High-quality quick-action drill chuck • GATES quality belt • Large base plate with T-slots, ribbed on rear • Extensive range of accessories available Dimensions & Weights: • Length: 568 mm • Width: 319 mm • Height: 849 mm • Column diameter: 60 mm • Net Weight: 28.5 kg Drilling Performance: • Steel (S235JR): 15.9 mm • Continuous drilling steel (S235JR): 14 mm Drilling Table: • Workspace length: 200 mm • Workspace width: 200 mm • T-groove: diagonal, size 14 mm, number 2 • Rotation: 360° • Angle: 45° • Load capacity: 12 kg • Max. distance spindle – table: 319 mm Speed Range: • 600–2400 min⁻¹ • Number of gears: 5 steps Machine Base: • Max. distance spindle – base: 518 mm • Workspace length: 145 mm • Workspace width: 143 mm Spindle: • Quill stroke: 65 mm • Spindle chuck: MT 2 • Reach: 127 mm Condition: Brand New Price: Price shown excludes VAT Delivery: Fast nationwide delivery across Ireland Collection: Available from our showroom #OPTIdrillDQ18 #BenchTopDrill #VbeltDrive #MetalworkingMachines #CompactDrill #WorkshopIreland #ForSaleIreland #EngineeringTools #Bandsaw #MillingMachine #LatheMachine #WeldingMachine #CustomBlades #CoolantOil
