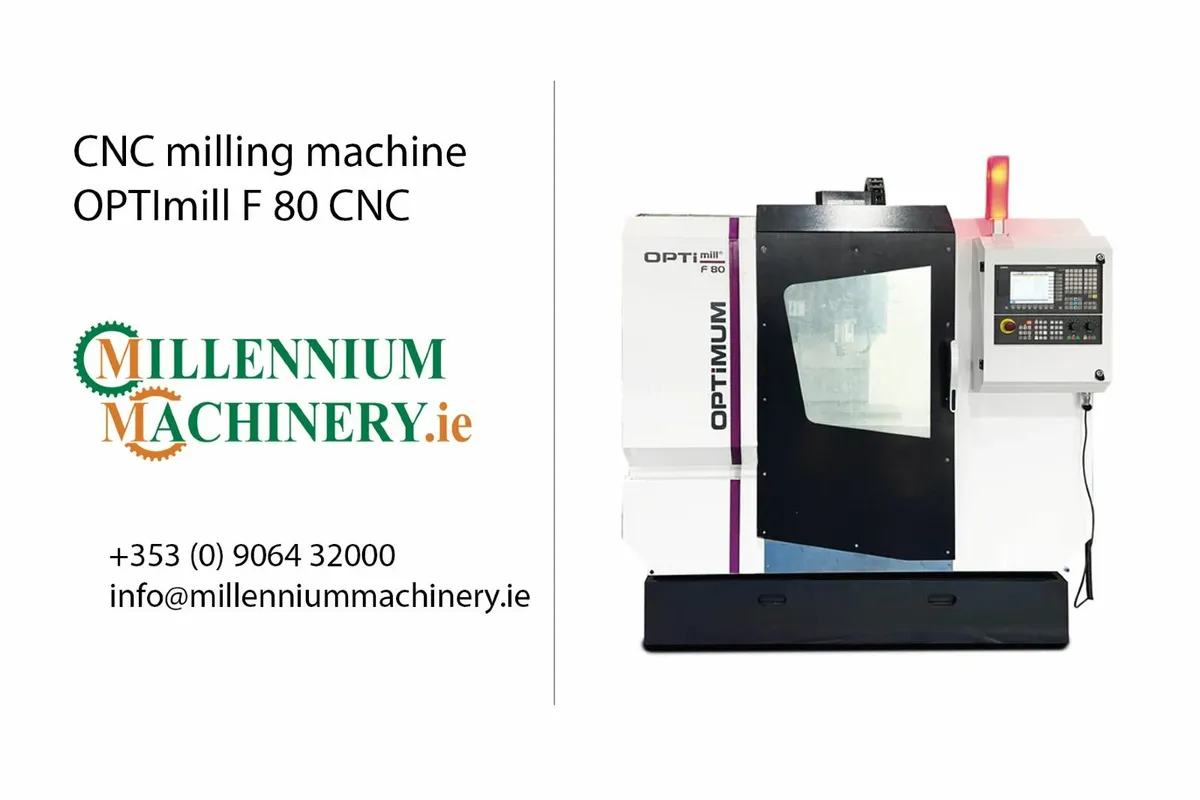

Milling machine OPTImill F 80 CNC

The compact and user-friendly entry-level solution is used for simple milling applications. Features such as simple operation, commissioning and maintenance are the perfect basis for equipping CNC machines. Only 1 in stock! Coolant pump(s) drive power 450 W Cooling lubricant system tank capacity 80 l Explanation vertical spindle speed range Please note that the maximum spindle speed must be reduced by approx. 20 % in continuous operation. Fast motion speed X axis 20000 mm/min Fast motion speed Y axis 20000 mm/min Fast motion speed Z axis 20000 mm/min Feed motor torque X axis continuous operation S1 6 Nm Feed motor torque Y axis continuous operation S1 6 Nm Feed motor torque Z axis continuous operation S1 11 Nm Frequency 50 Hz Height 2750 mm Horizontal milling table length 800 mm Horizontal milling table max. load bearing capacity 200 kg Horizontal milling table width 260 mm Length 1995 mm Max. distance spindle to column 370 mm Max. tool diameter 95 mm Max. tool length 300 mm Max. tool weight 8 kg Net weight 2300 kg Number of tool slots 12 Tools Pneumatic connection operating pressure 7 bar Positioning accuracy ± 0.01 mm Repetition accuracy ± 0.01 mm Supply voltage 400 V Tool change time chip to chip (C to C) 7 s Total rated value 12 kVA Travel X axis automatic 450 mm Travel Y axis automatic 260 mm Travel Z axis automatic 450 mm Vertical spindle drive motor output continuous operation S1 3,7 kW Vertical spindle speed range 50 - 10000 min¯¹ Vertical spindle spindle chuck BT 40 Vertical spindle torque drive motor continuous operation S1 24 Nm Width 1930 mm Condition: Brand New Delivery: Fast nationwide delivery across Ireland Collection: Available from our showroom
