Milling machine

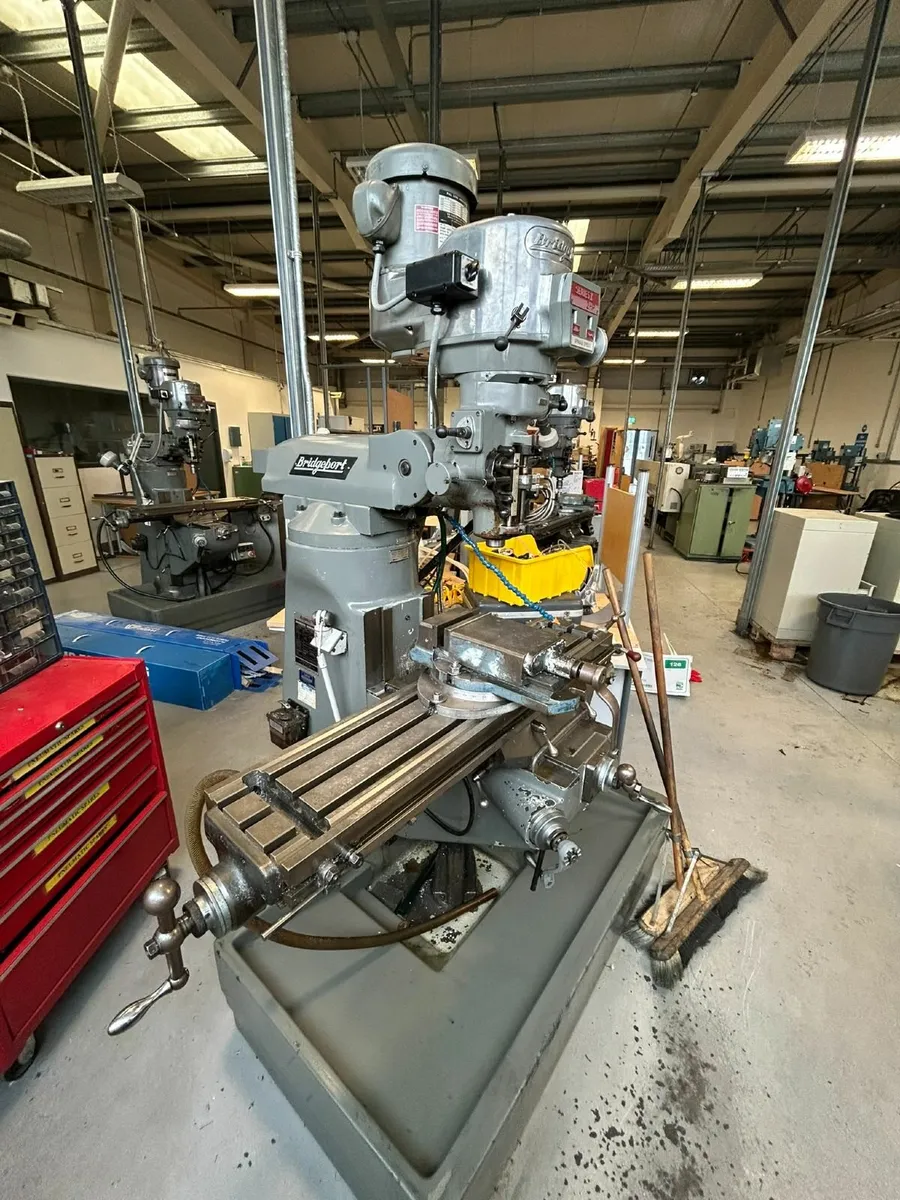

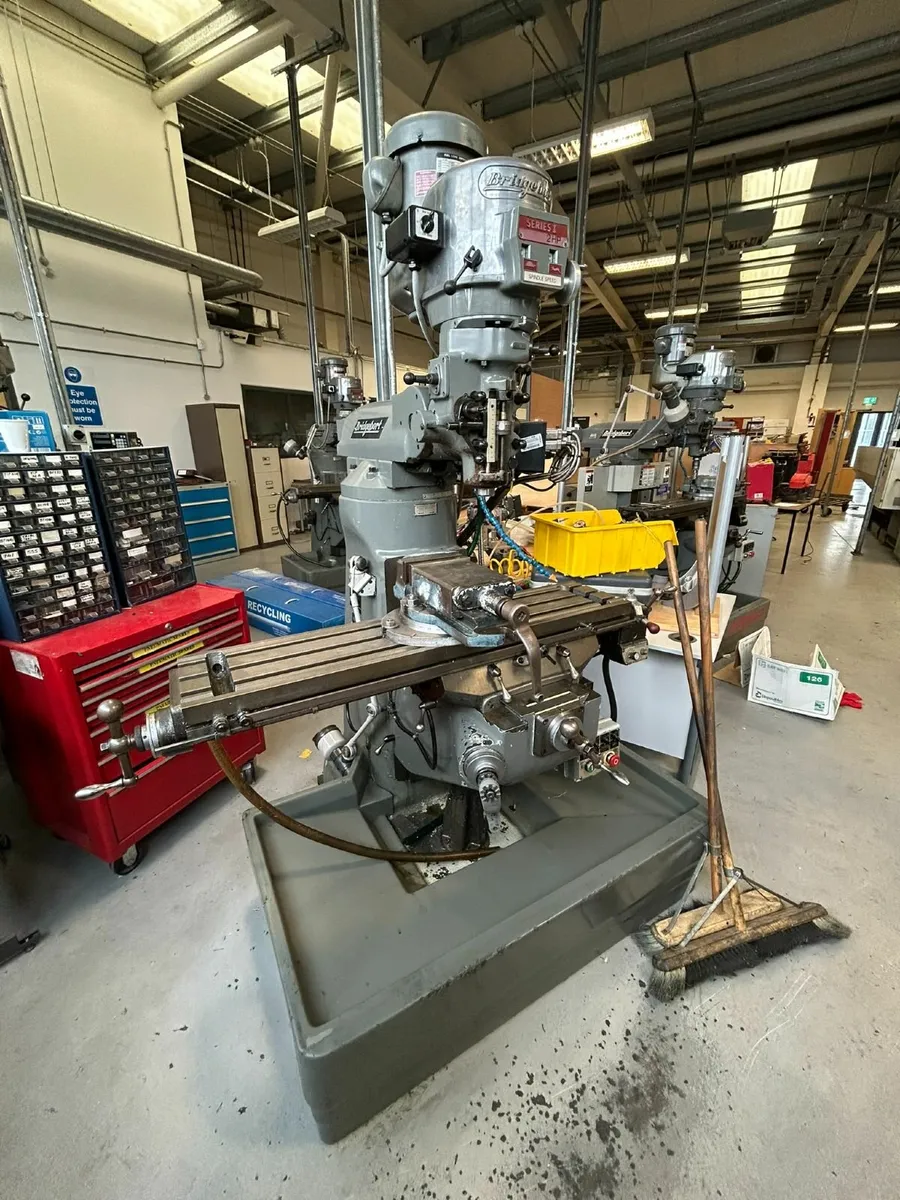

Now available from Lister Machine Tools. BRIDGEPORT SERIES 1 Knee-type milling machine. One of the most popular knee-type mills in the world. Very hard to get a mill of this quality in this condition. X-Axis Table Travel Without Power Feed 36" (914mm) N/A With Power Feed 33" (838mm) 33" (838mm) Y Axis Travel Without Power Feed 12" (306mm) With Power Feed 12" (306mm) Quill Travel 5" (127mm) 4.03" (102mm) Knee Travel 16" (406mm) Ram Travel 12" (306mm) Throat Distance Min 6.75" (171mm) Max 18.75" (476mm) Table to Spindle Nose Min 2.5" (64mm) Max 18.25" (463mm) TABLE Overall Size 9" x 49" (299 x 1245mm) Working Surface 9" x 49" (299 x 1245mm) Number of T-Slots 3 T-Slot Centers 2.5" (64mm) T-Slot Size 0.625" (16mm) Height Above Floor Maximum 47.25" (1200mm) Weight of Workpiece Maximum 750lbs. (340kgs) SPINDLE CONSTRUCTION Spindle Diameter 1.875" (48mm) Quill Diameter 3.375" (86mm) SPINDLE MOTOR HP 30 Min Duty Rated 3HP Continuous 2HP SPINDLE TAPER Standard R-8 Optional NMTB30 SPINDLE SPEED RANGE Low Range 60 - 500 RPM High Range 500 - 4200 RPM QUILL FEED RANGE (3) and 2 Axis CNC 3 Axis CNC Range #1 0.0015 "/rev Program Range Range #2 0.003"/rev 0-100 IPM Range #3 0.006"/rev MACHINING CAPACITIES Power Quill Feed Drilling (mild steel) 3/8" (9.5mm) Miling (mild steel) 2 CI/min Boring Range (mild steel) 6" Dia (152mm) POSITIONING Feedrate Range N/A 0-100 IPM Minimum Increment N/A 0.0001" SPACE AND WEIGHT Floor Area 84" x 120" (2140 x 3048mm) Height 87" (2210mm) Net Weight 1930lbs (875kgs)
