Milling Machine

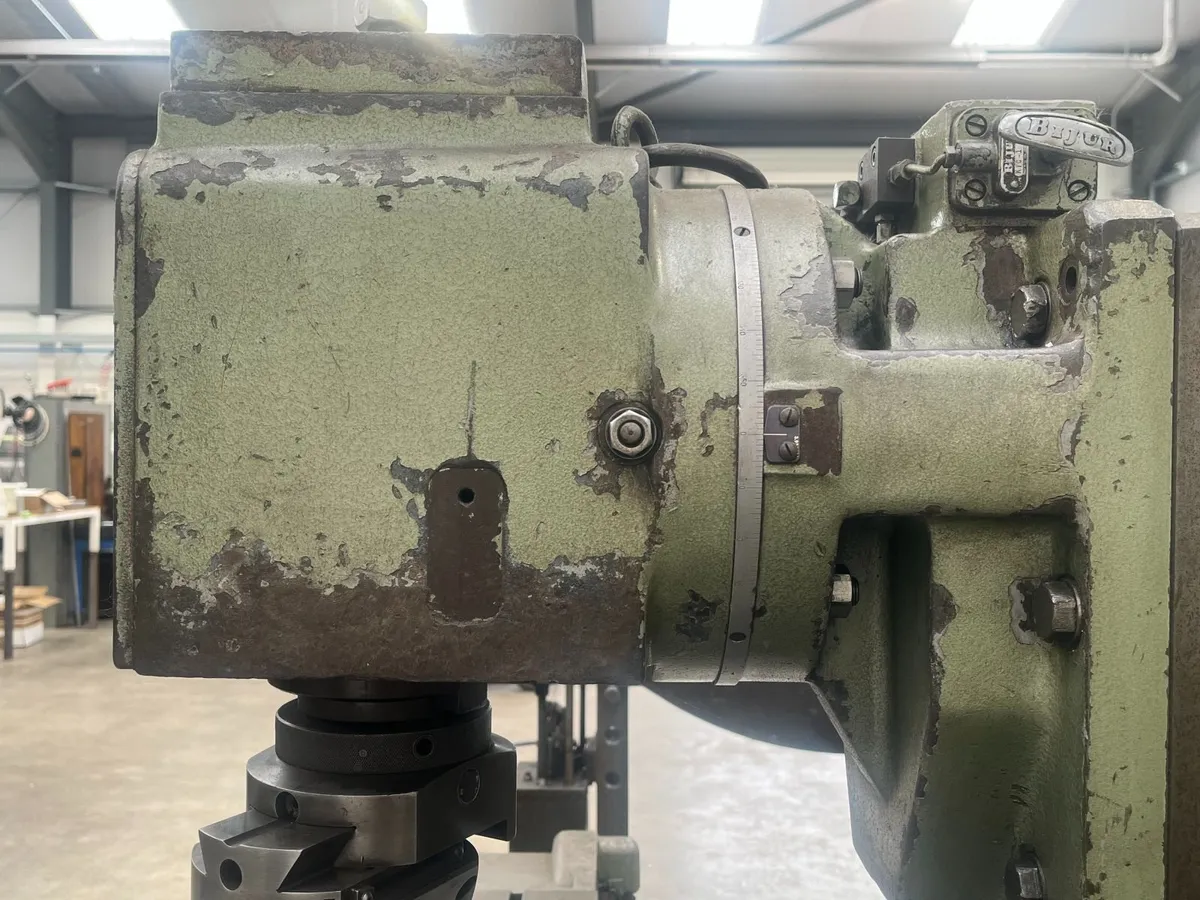

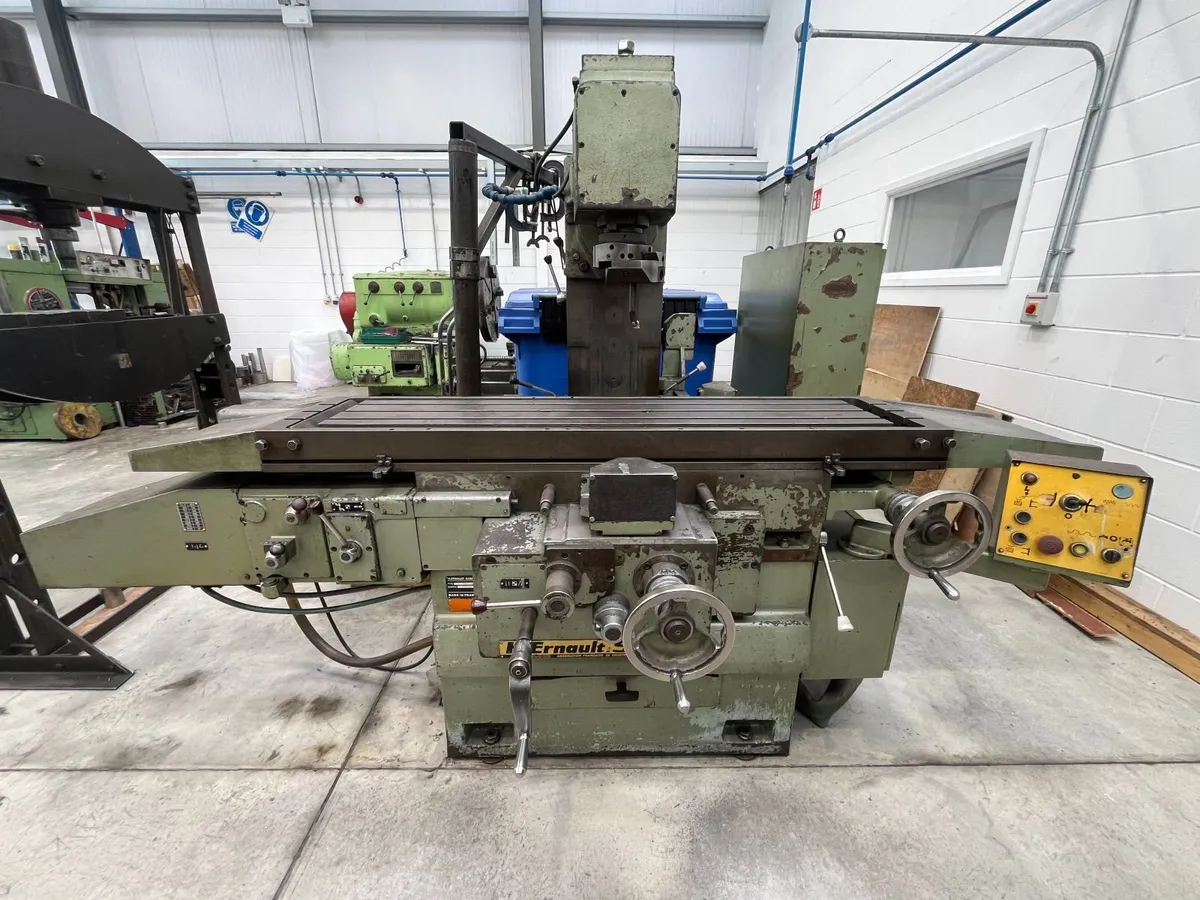

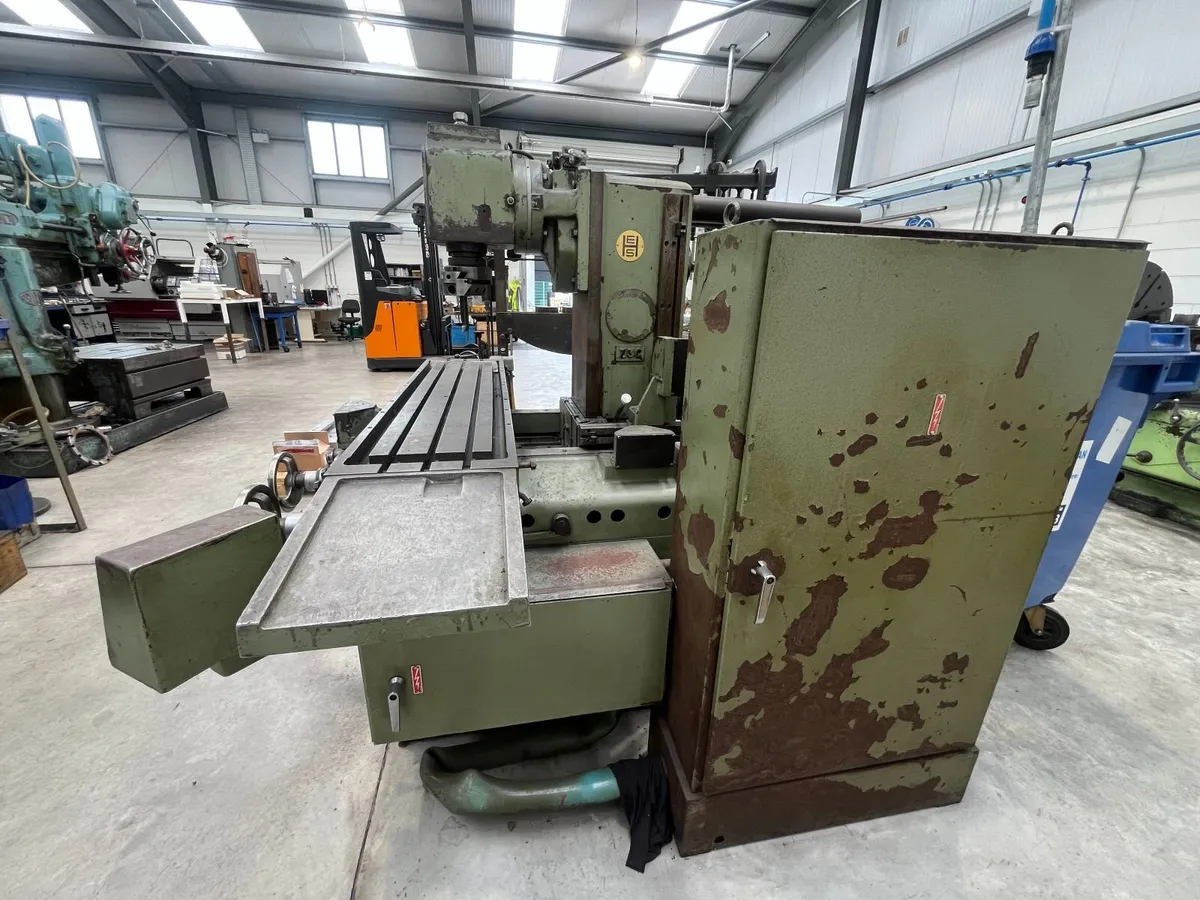

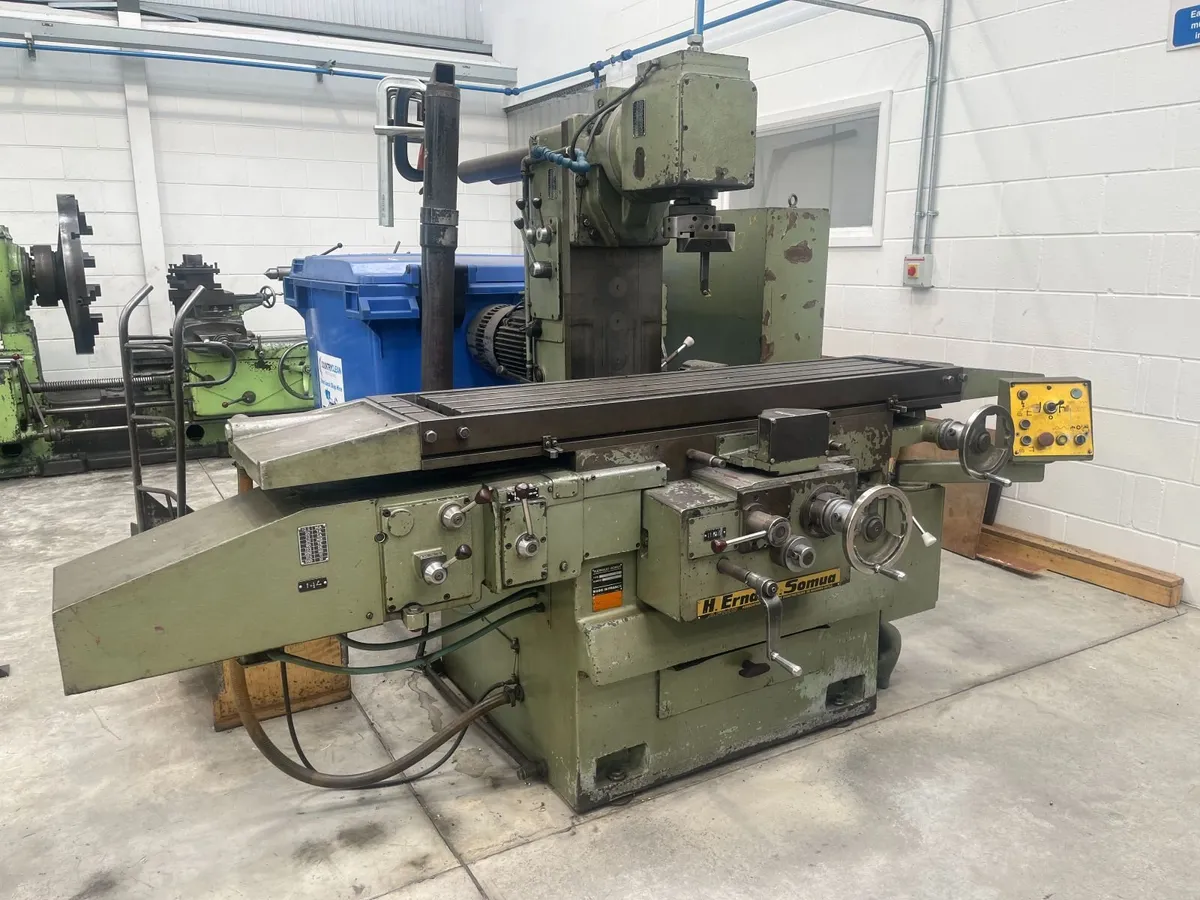

H. Ernault Somua Z3C Horizontal and vertical manual milling machine, with automatic feed on 3 axis. 3 phase machine. Travel : X axis 1000mm , Y axis 320mm , Z axis 440mm. This is a very universal machine as the head can be swivelled to the desired angle and the head can also be removed to allow the arbor be fitted for horizontal milling. Floorspace required for this machine Length : 3280 mm Width : 2225 mm Height : 1835 mm. This machine comes fully kitted out with everything seen in the photographs : machine vice, Boring head and accessories, box of well over 100 hss slot drills and end mills ranging from 6mm to 40 mm diameter, variety of face milling cutters , slot drill arbors and collets, a rotary table and an arbor and bridge for horizontal milling.
