Non Mandrel Pipe Bender

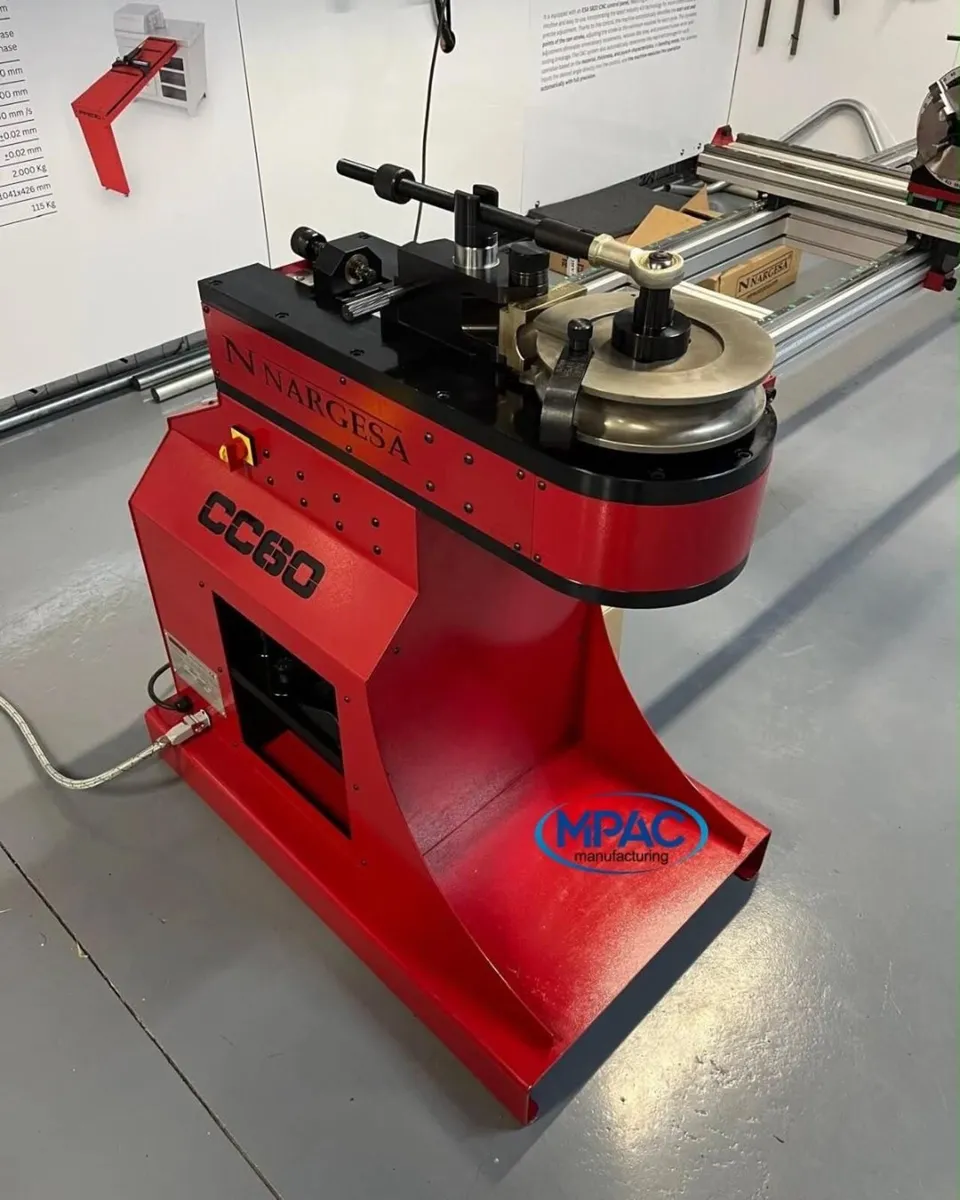

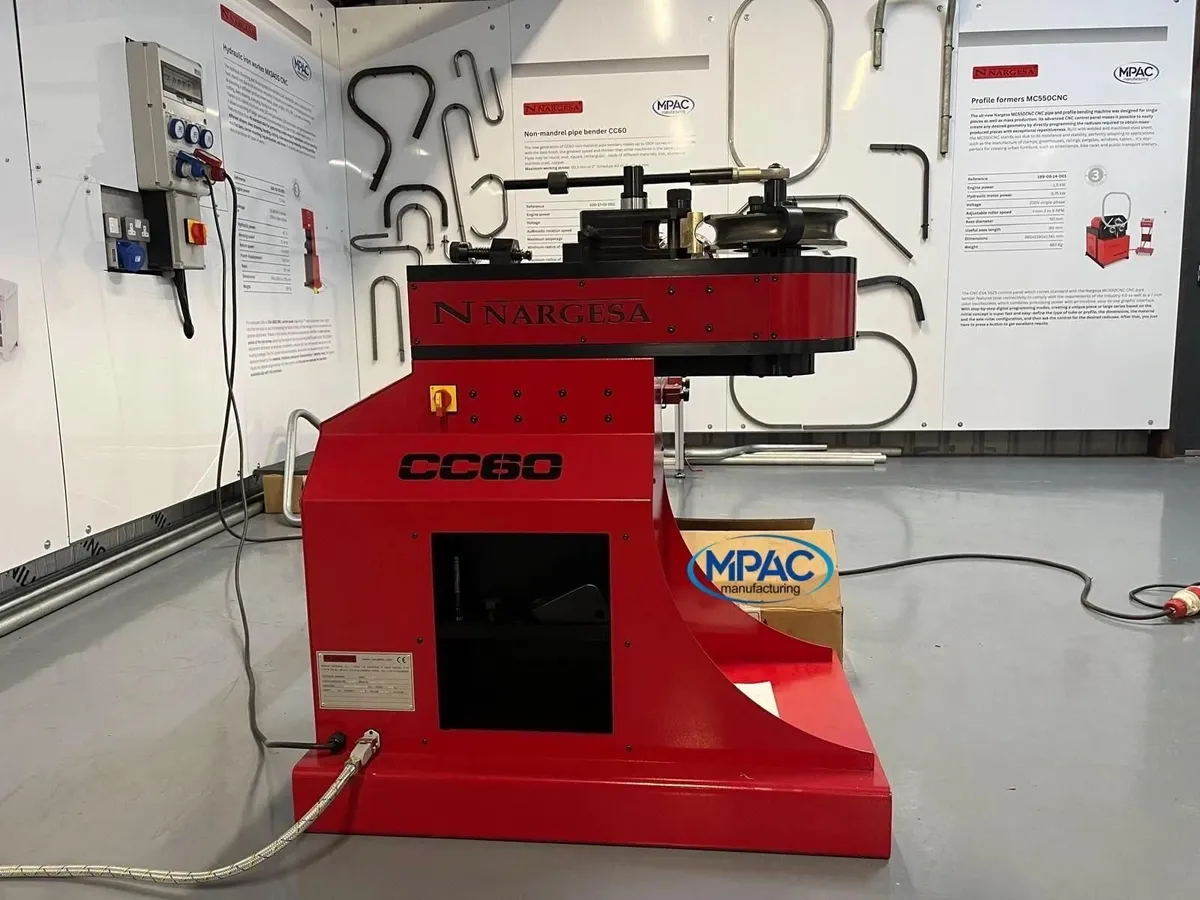

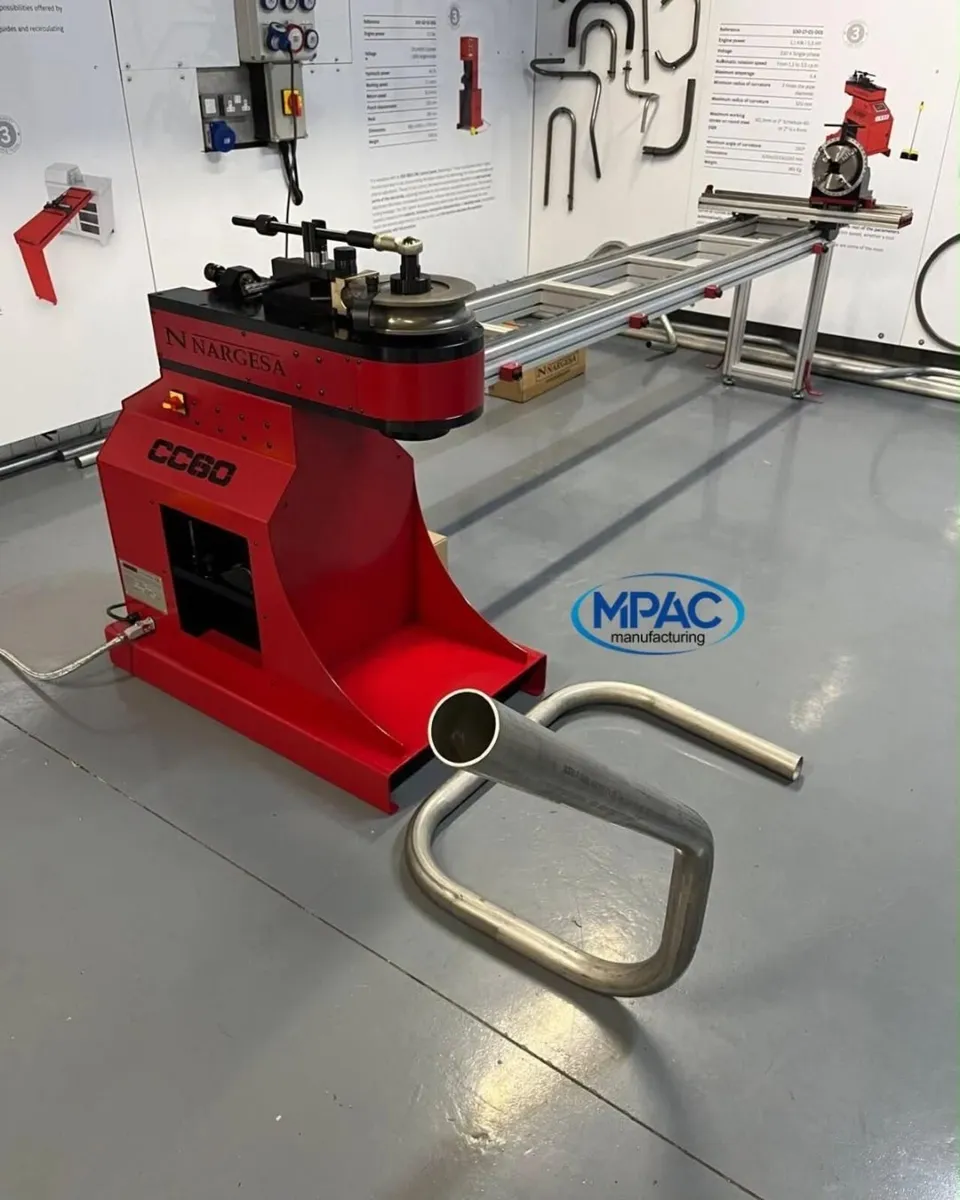

The new generation of Nargesa CC60 Non-mandrel rotary tube and pipe bender can bend up to 180º curves on hollow profiles. The sleek look, versatility and faster bending speeds also allow us to have one of best machines offered in our industry. Materials can be round, oval, square, rectangular and made of different metals such as steel, aluminium, stainless steel, copper. This machine is also available with a 2-Axis Positioning Gauge as seen in the pictures. Machine demos available, call to arrange a visit. • 3 Year Warranty • Maximum size on S275 round steel pipe: 60.3 mm or 2” Schedule-40 or 2” 1/4 x 4 mm. • Maximum size on aluminium pipe: 60.3 mm x 8 mm / 2.375” x .315” • Maximum size on stainless steel pipe 304 / 316: 60.3 mm x 3 mm / 2.375” x .160” • Maximum size on square tube: 40 x 40 x 4 mm / 1.50” x 1.50” x .160” • Maximum angle of curvature: 180º • Minimum radius of curvature: 3 times the pipe diameter. • Maximum radius of curvature: 320 mm • Automatic rotation speed from 1,1 up 3,5 rpm • Repetition on the curve of +/- 0.1 degrees • Reinforcement tool post support arm for pipes with diameters over 40 mm included. • Two bending directions, right or left for easier bending. • All bend dies are made of tempered steel for longer tool life. • The counter dies are made of bronze alloys to help prevent markings on the outside of the bent profiles. • Stores up to 10,000 programs. • Up to 50 different angles on the same piece can be programmed. • Dimensions can be programmed in inches or millimetres. • Pivot system with automatic unlocking to help remove material. • Automatic and programmable spring back correction. • Automatic and programmable springback • Electrical voltage: 230V single phase 50/60Hz • Machine weight: 365 Kg More information can be found on our website. Mpac Manufacturing. https://mpacmanufacturing.ie/nargesa-non-mandrel-tube-pipe-benders/ Follow us on Facebook, Instagram, TikTok. mpac_manufacturing Price €11,550 excl VAT
