Oil Dispensing Pump with Retractable Reel

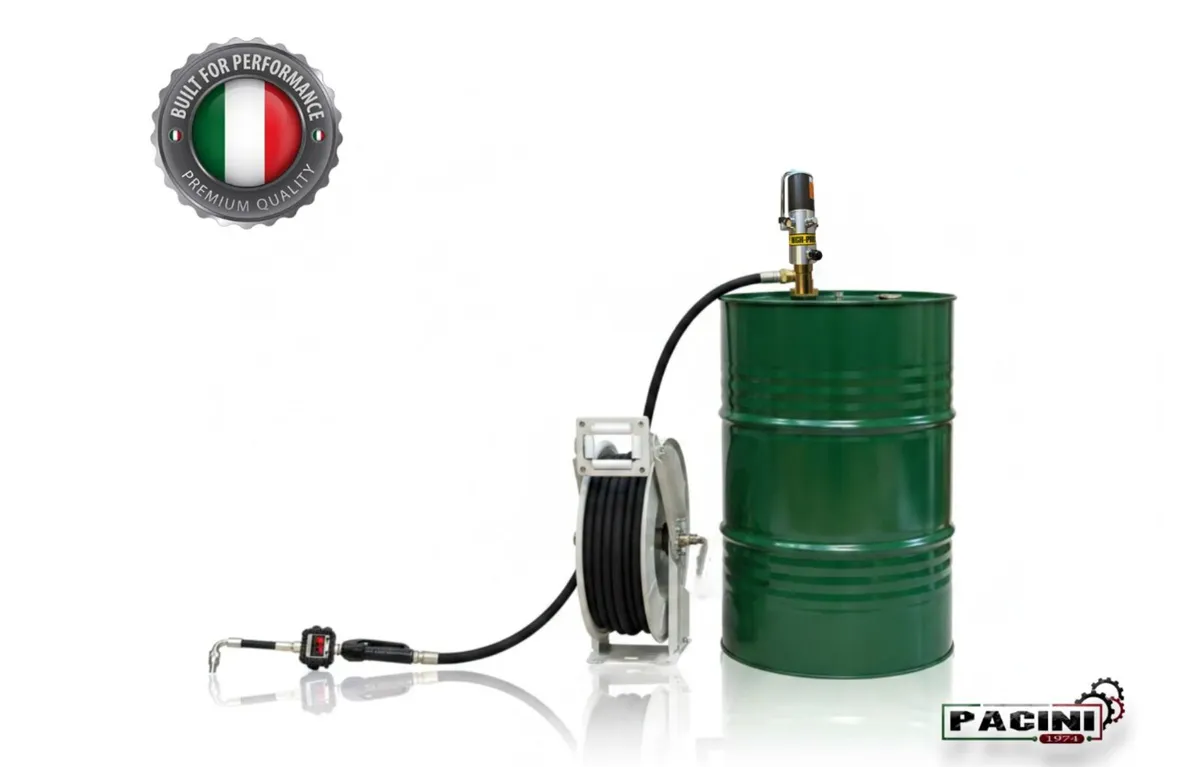

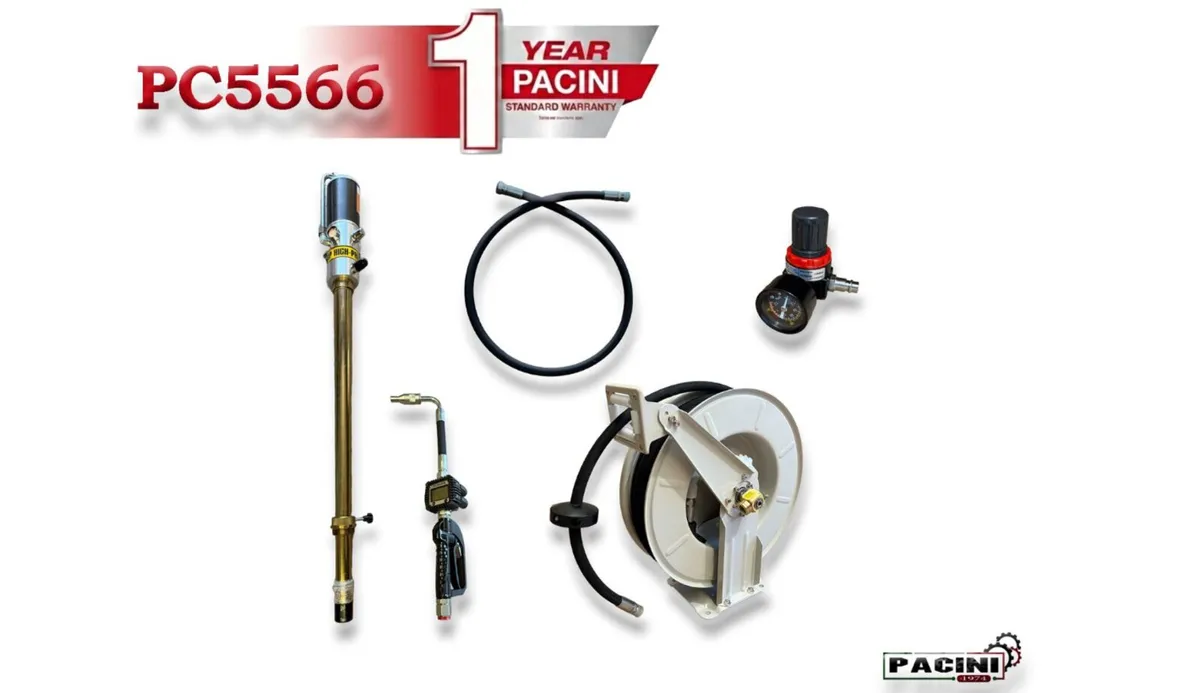

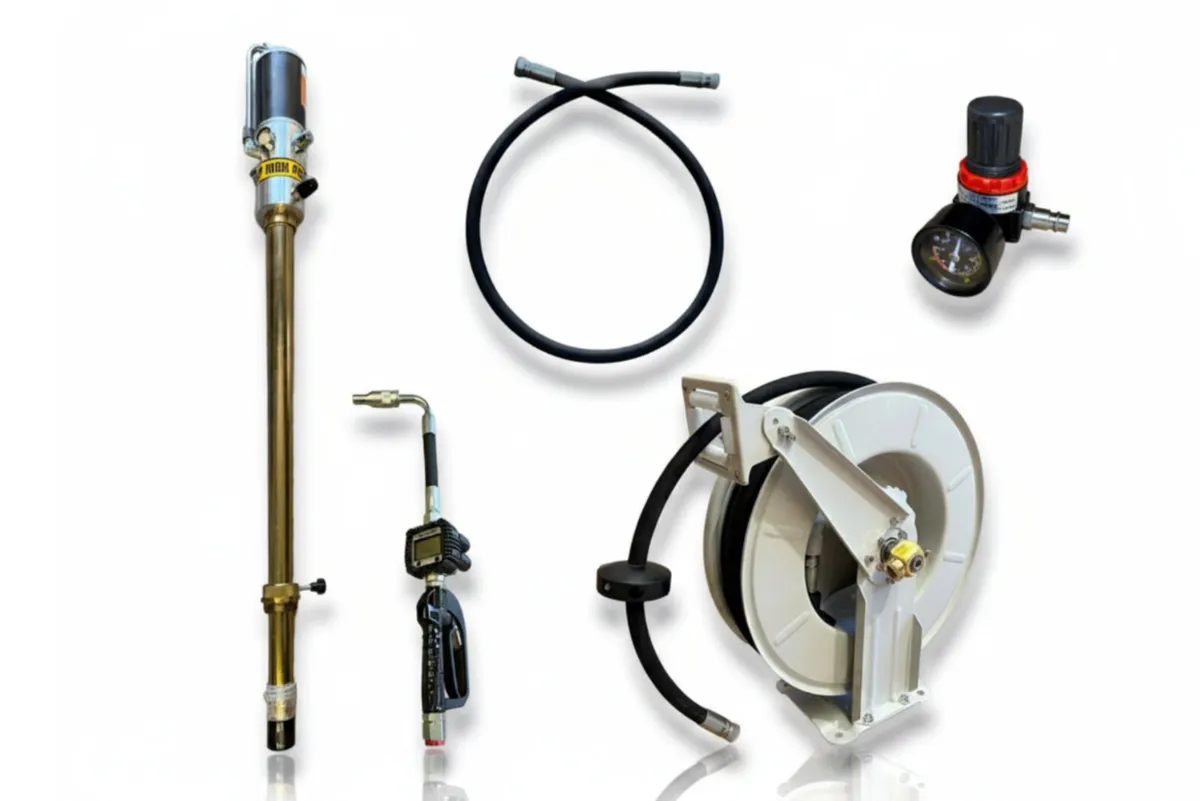

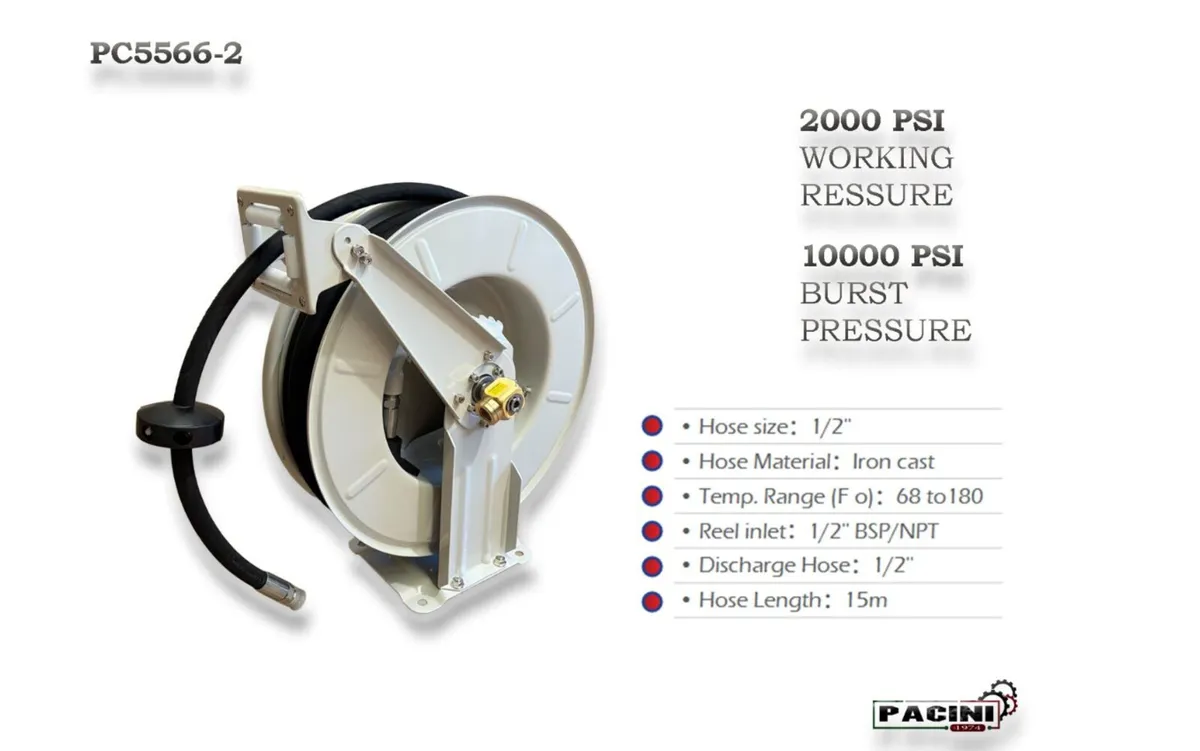

Pacini PC5566 – Pump with Reel and Meter Kit Pacini PC5566 Oil Barrel Kit is a professional-grade pneumatic oil dispensing system designed for workshop and industrial lubrication applications. It is engineered for handling a wide range of lubricants and oils with high accuracy and controlled dispensing. Details Pump with Reel and Meter Kit (SKU: PC5566) Brand: PACINI Type: Heavy-duty oil dispensing pump with hose reel and integrated meter Key Specifications Pump & Performance Flow rate: 8–30 L/min (typical working range 12–14 L/min) Pressure (working): up to 5–270 MPa (system dependent specification noted) Air inlet pressure: 0.6–0.8 MPa Pressure ratio: 5:1 Accuracy of meter: ±1% Media Compatibility Designed for heavy-duty oil / lubricants Hose & Reel System Hose size: 1/2" (DN1/2") Hose length: 15 meters Hose material: Cast iron reinforced structure Reel inlet connection: 1/2" BSP / NPT Discharge hose: 1/2" Spout type: Flex spout Meter Specifications One-time count range: 0.1 – 9999.9 liters Total count range: 0.1 – 9999.9 liters Accuracy: ±1% Operating Conditions Temperature range: 68°F – 180°F (20°C – 82°C approx.) Working pressure (hose system): 2000 PSI Burst pressure: 10,000 PSI Physical Details Volume capacity: 200 L Weight: 6.5 kg Length: 975 mm Packing size: 1250 × 160 × 160 mm Typical Applications Automotive workshops Industrial lubrication systems Fleet maintenance stations Heavy machinery servicing Oil dispensing and transfer systems
