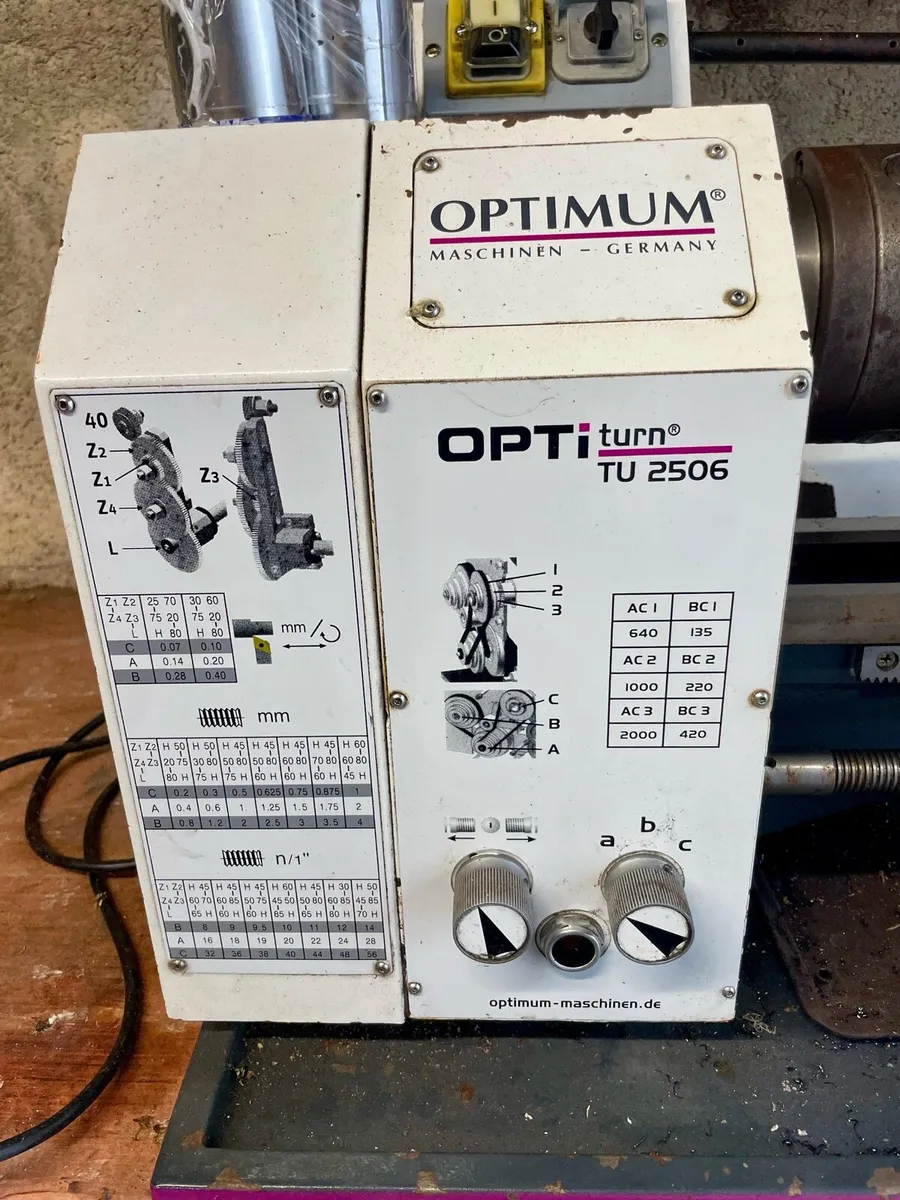

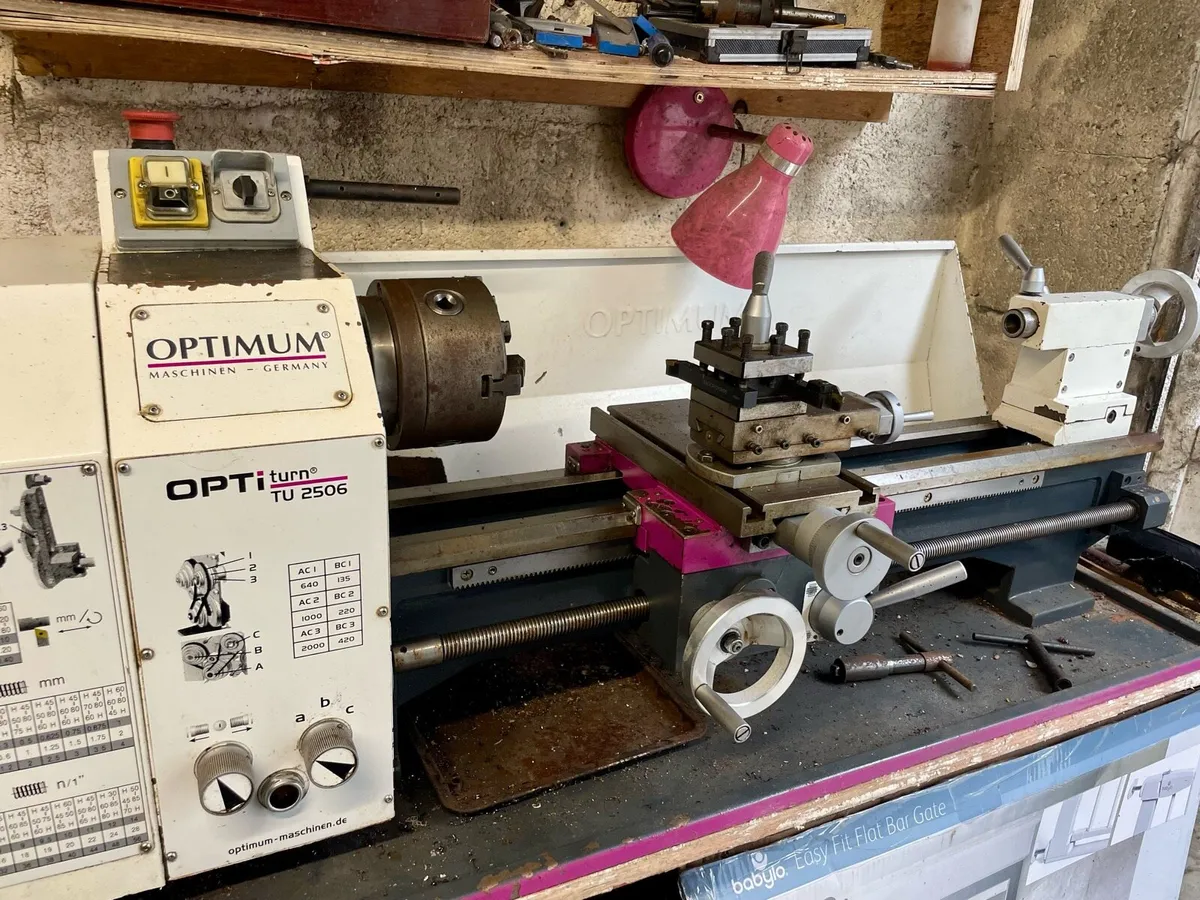

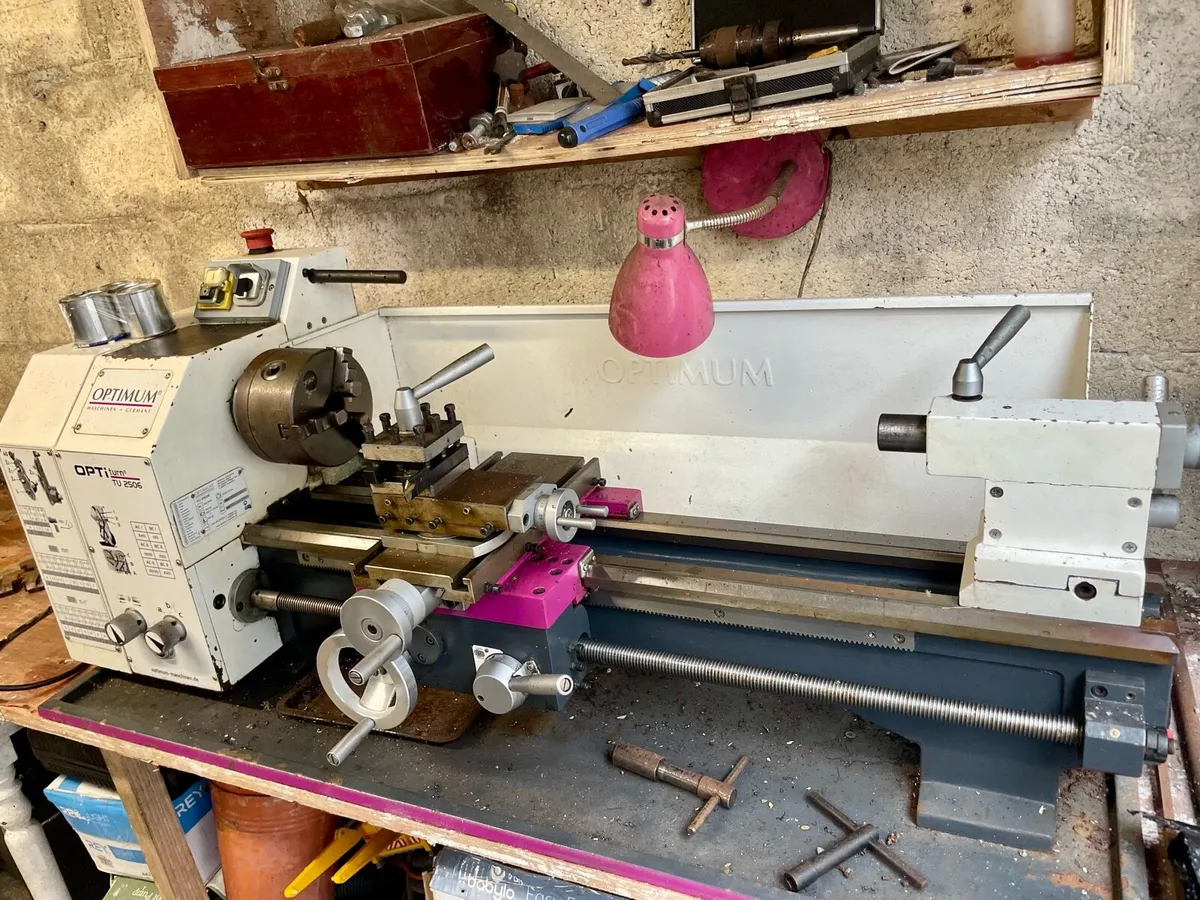

Optimum tu2506 lathe

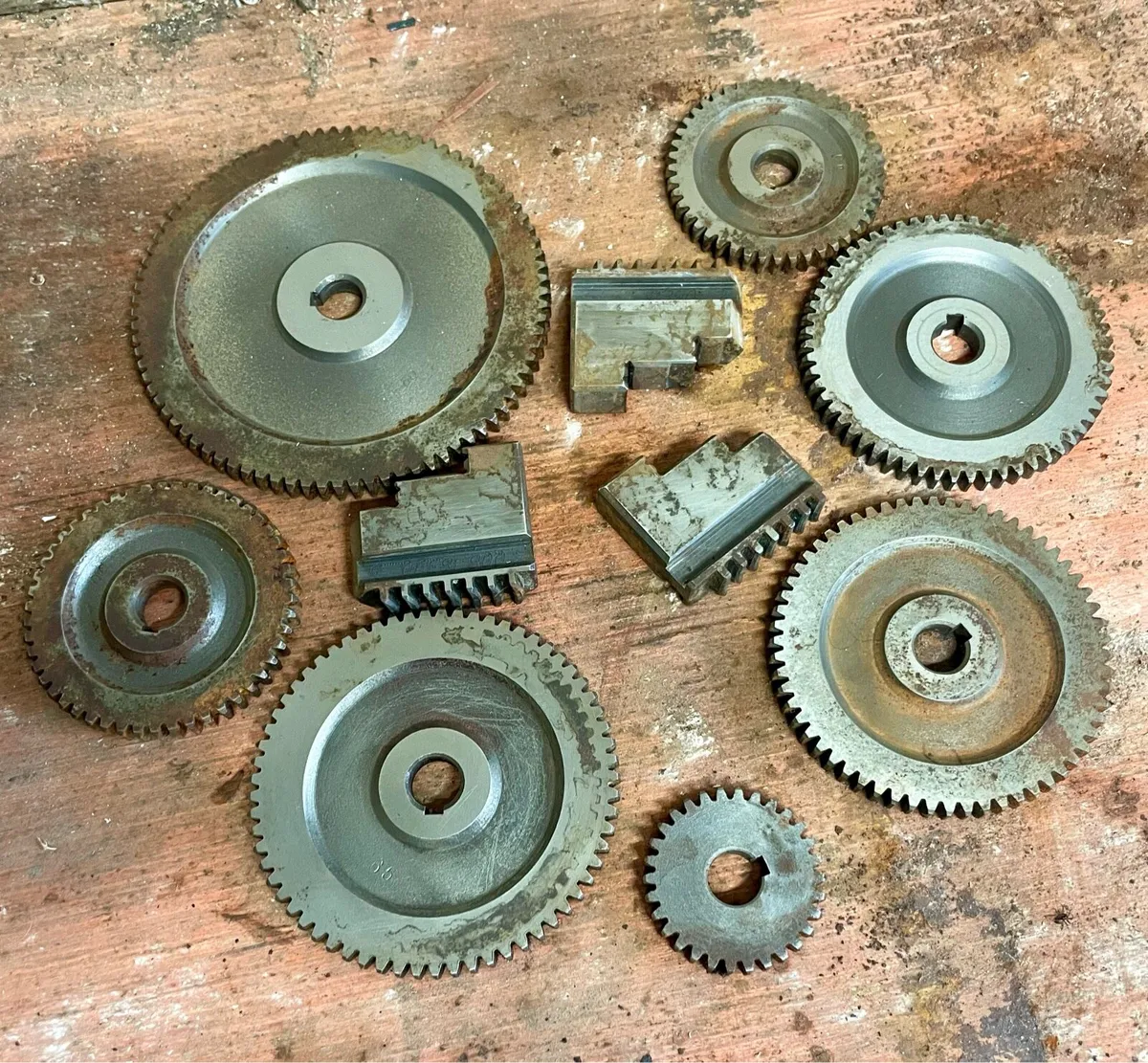

125 – 2000 min¯¹ Bed width 134 mm Frequency 50 Hz Height 475 mm Imperial pitch 56 – 8 Gg/1" Length 1250 mm Longitudinal feed range 0,07 – 0,4 mm/rev Max. height 125 mm Max. width 550 mm Metric pitch 0,2 – 4 mm/rev Motor power 0,75 kW Net weight 138 kg Number of gears 6 Steps Number of imperial pitches 21 Number of longitudinal feeds 6 Number of metric pitches 21 Spindle bore 26 mm Spindle cone MT 4 Supply voltage 230 V Swing diameter above machine bed 246 mm Swing diameter above planing slide 149 mm Tailstock chuck MK 2 Tailstock quill diameter 30 mm Tailstock quill stroke 65 mm Tool holder max. chuck height 12 mm Travel carriage saddle 550 mm Travel cross slide 110 mm Travel upper slide 70 mm Width 585 mm Lots of tools there too, boring bars, knurling tool, all change gears and a few dial indicators. Lack of use forces sale. Was mainly used for pins and threading
