Pillar Drill

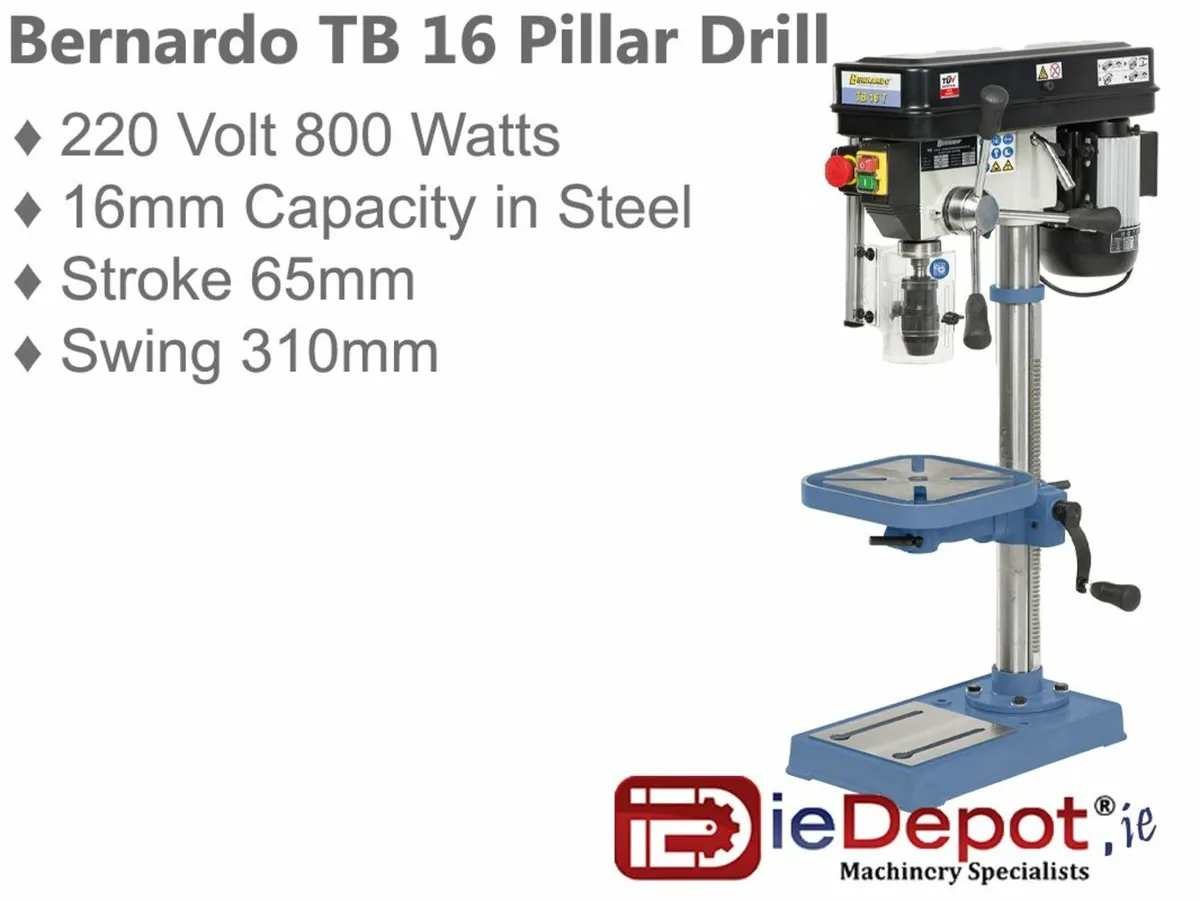

Bernardo TB 16 T Bench Pillar Drill - 230 V View and buy at https://www.iedepot.ie/sip-16-wood-band-saw/ or call 091876595 Nationwide delivery is available or pick it up from our warehouse in Loughrea today. Pre-order before traveling to avoid disappointment or delay. Quality ball bearings ensure high concentricity of the quill Large dimensioned drill table with diagonal T-slots Extremely smooth running thanks to balanced drive pulleys and quality belts Drilling table can be swiveled (±45°), height adjustment via toothed rack T-slots in the base plate as standard Powerful and high-torque aluminum motor according to IP 54 Precision keyless chuck included Machined base plate for clamping higher workpieces Ergonomic handles for comfortable working 220 - 240 Volts | 800 Watts Drilling capacity max: 16 mm Drill chuck: 1 - 16 mm / B 16: Morse taper: MT 2 Spindle speeds: (12) 300 - 2550 rpm Distance spindle to column: 155 mm Table tiltable: -45° to 45° Distance spindle to table max: 445 mm Distance spindle to base: 600 mm Spindle stroke: 65 mm Column diameter: 58 mm Table size / T-slot size: 245 x 245 mm / 16 mm Working surface of base: 85 x 200 mm Machine dimension (W x D x H): 400 x 570 x 920 mm Weight approx: 36 kg Standard Accessories Keyless drill chuck 1 - 16 mm / B 16 Drill chuck arbor MT 2 / B 16 Height adjustable protective cover Separate emergency stop switch T-slot nuts
