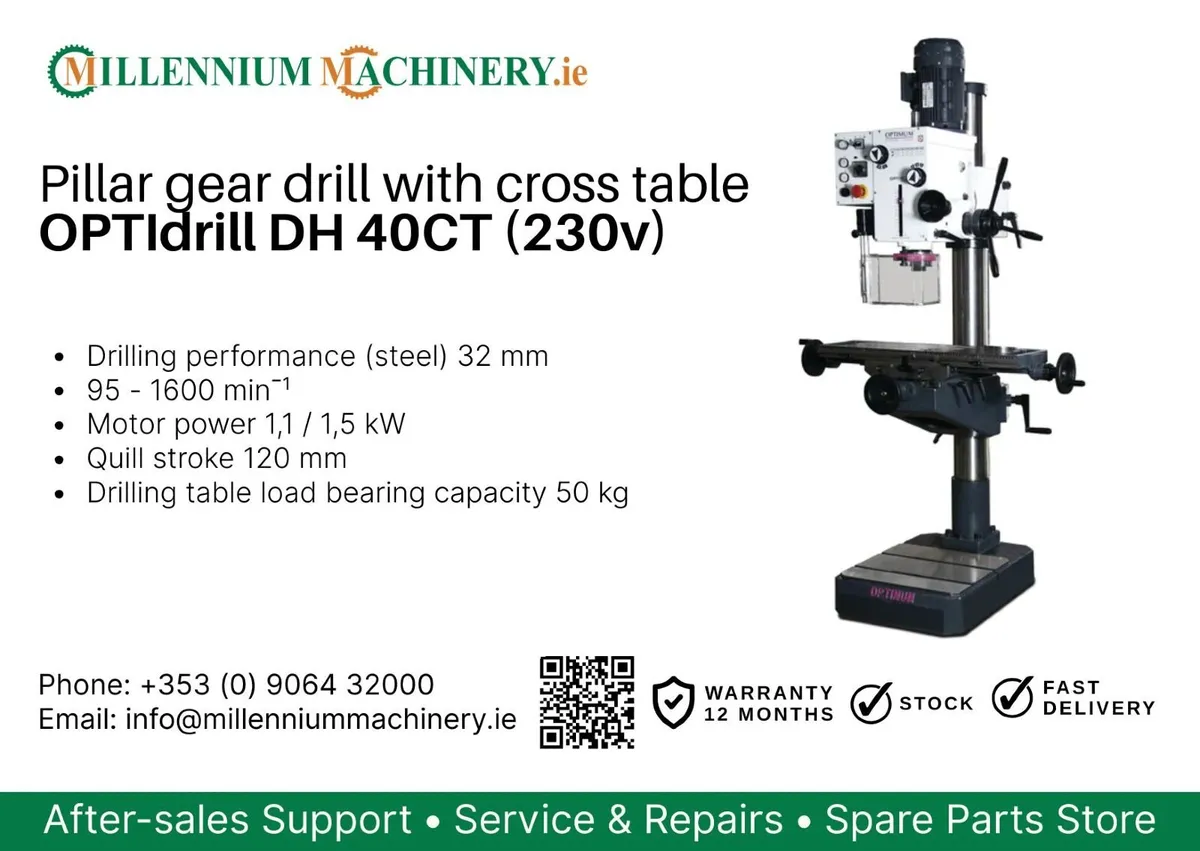

Pillar gear drill with cross table DH 40 CT 230V

The OPTIdrill DH 40CT (230V) is a heavy-duty pillar gear drill designed for precise and reliable workshop use. Its solid cast construction provides excellent stability, while the ground gearwheels running in an oil bath ensure smooth and quiet operation. The machine offers a wide speed range from 95 to 1,600 rpm and is powered by a high-quality dual-stage industrial motor. It features a large, solid cross table with a precision-machined surface, operated by three handwheels and equipped with an integrated longitudinal scale and adjustable end stops. Both the gear head and the table are height-adjustable, while the table guides can be precisely set using adjustable wedge strips. The massive, finely finished base plate can also be used as a work surface for taller workpieces when the cross table is swivelled away. Additional features include forward and reverse rotation, an adjustable drilling depth stop and a thread-cutting function. This is a strong, accurate and versatile drilling machine, suitable for professional workshops, engineering applications and demanding fabrication work.
