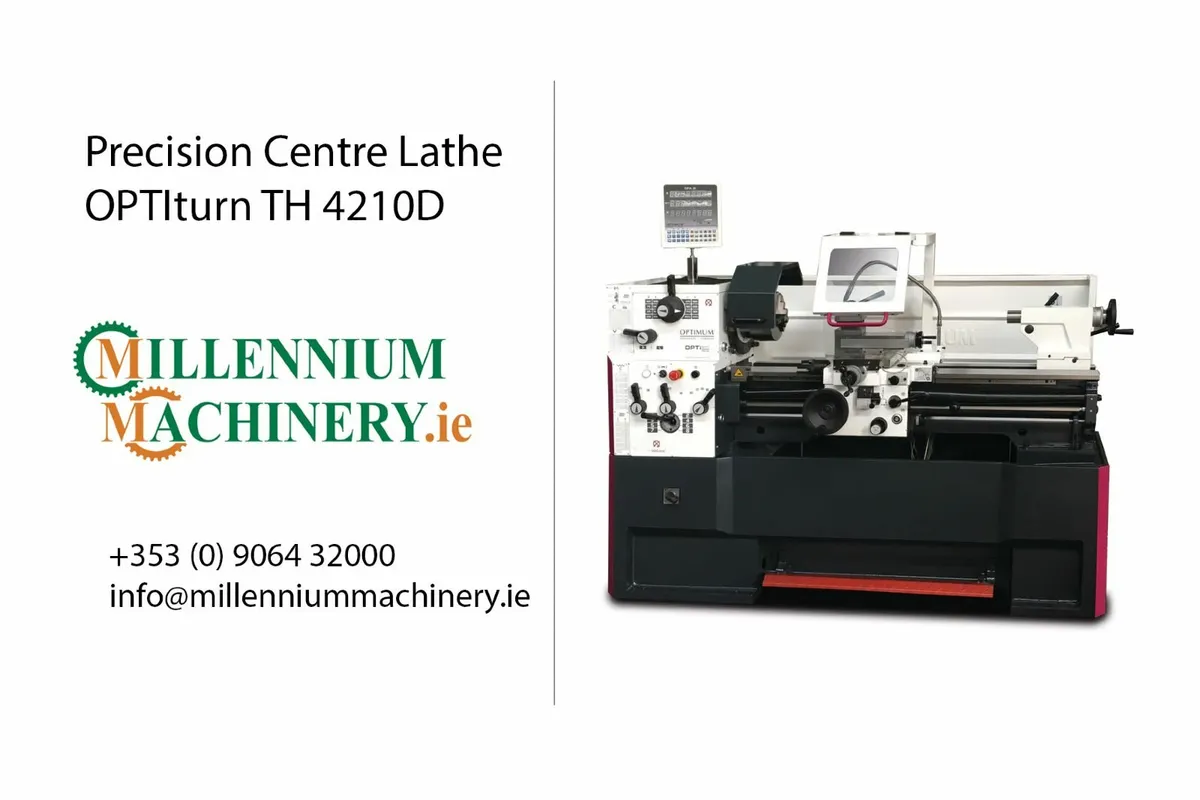

Precision Centre Lathe - OPTIturn TH 4210D

OPTIturn TH 4210D – Heavy-Duty Precision Lathe with Digital Position Indicator | Brand New Sophisticated technology and complete equipment in one machine. Precise lathe with digital position indicator DPA 31 Plus, designed for professional workshops and heavy-duty applications. Key Features: • Digital position indicator DPA 31 Plus • Hardened and ground Z-axis guideway • Guaranteed spindle concentricity ≤ 0.015 mm • Precisely machined slide • Spindle holder Camlock DIN ISO 702-2 No. 6 • Smooth-running gear wheels, hardened & ground • Main spindle runs in oil bath with 2 precision tapered roller bearings • Central lubrication in bed slide • Upper slide adjustment range ± 90° • Lead screw cover • Right/left rotation switchable via switching spindle • Handwheels with fine scaling 0.04/0.02 mm • Safety handwheels with disengagement (X & Z axis) according to EN 23125 • Two-channel safety electronics • Switch tested to EN ISO 13849 life cycle calculation • Metric pitches 0.2–14 mm/rev & inch threads 72–2 TPI adjustable without gear changes (via control panel lever) • Heavily ribbed prism bed, induction-hardened & precision-ground (gray cast iron) • Substructure & machine bed cast in one piece (Meehanite cast iron) • Coolant system with separate tank, oil separator & DIN-compliant easy cleaning • Quadruple steel tool holder • Emergency stop device with foot control • Supplied fully equipped for immediate operation • Extensive range of accessories available Dimensions & Weights: • Length: 1940 mm • Width: 915 mm • Height: 1375 mm • Net Weight: 1162 kg Work Areas: • Max. workpiece height: 210 mm • Max. workpiece length: 1000 mm • Swing diameter over bed: 420 mm • Swing diameter in bed bridge: 590 mm • Swing diameter over cross slide: 250 mm • Turning length in bed bridge: 260 mm • Bed width: 250 mm Condition: Brand New Delivery: Fast nationwide delivery across Ireland Collection: Available from our showroom *Price shown excludes VAT
