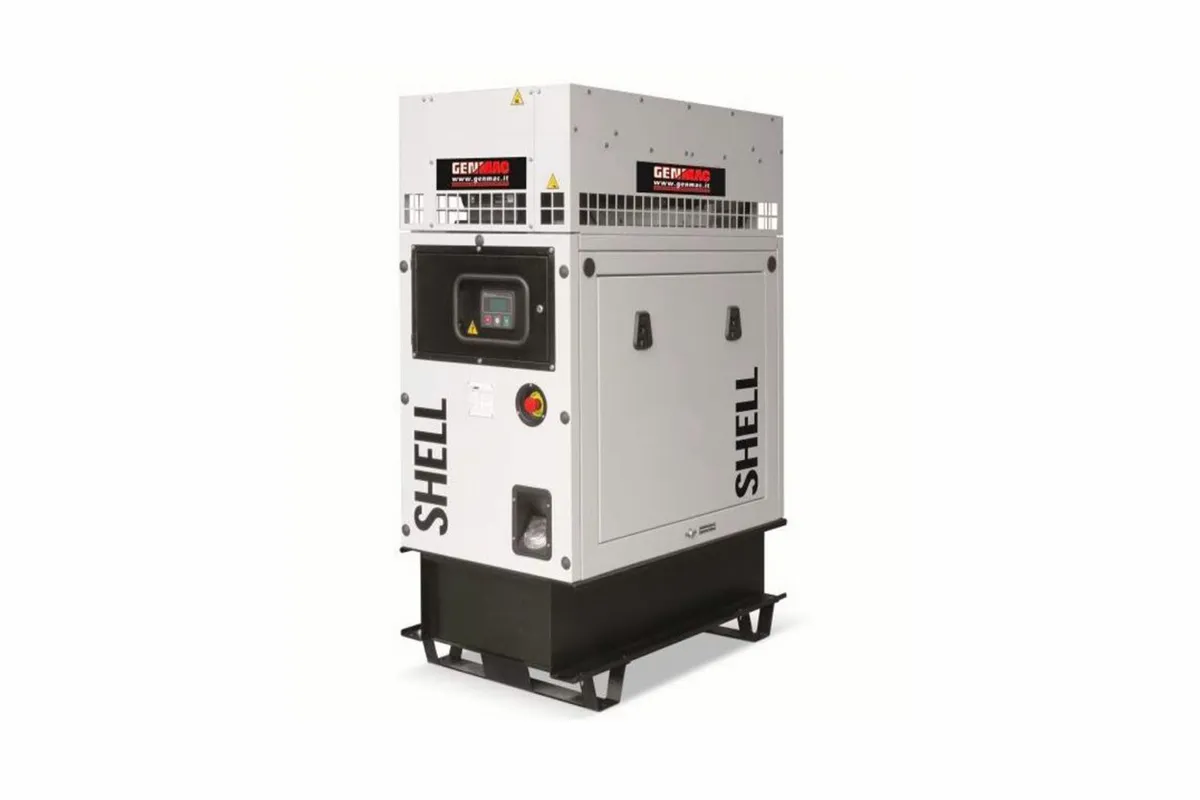

SHELL RG20PS Generator Single Phase

General Specification Silent generator with modular canopy having following specifications: Frame: Heavy duty fabricated welded base plate High quality steel with sandblasting and cataphoresis treatment sealed with powder coat paint High precision sheet cutting with nitrogen laser technology to avoid oxidation Heavy duty rubber anti-vibration mountings Fuel tank with drain plug and retention basin Feet and four lifting points Canopy: Small foot print and vertical shape to facilitate installation even in narrow spaces Two Full length doors for easy access for service and maintenance Electro-galvanized sheet DC01+ZE25/25 (EN 10152: 2009) (Optional SHELL-INOX Stainless Steel AISI 304 sheet) Weatherproof sealed joints Lockable handles in each door Grey RAL 7035 “orange peel” specific powder coat paint for outdoor usage Coolant refilling specific hatch Fuel filler outside enclosure Central lifting hook Ecological Sound foam: 100% Recyclable, 40mm thickness, fire-proof self-extinguishing class1 fire-reaction compliant washable, mechanically fixed to the roof with zinc plated metal supports Muffler: Supersilent, Residential type integrated in the canopy Control Panel: Metal Control panel with protective back cover Dedicated area to make easier the electrical connection to the load All units and components are prototype tested, factory build and production tested. A specific control procedure during the several stages of production ensures long life and reliability.
