Universal Drill Mill - OPTImill MB 4P

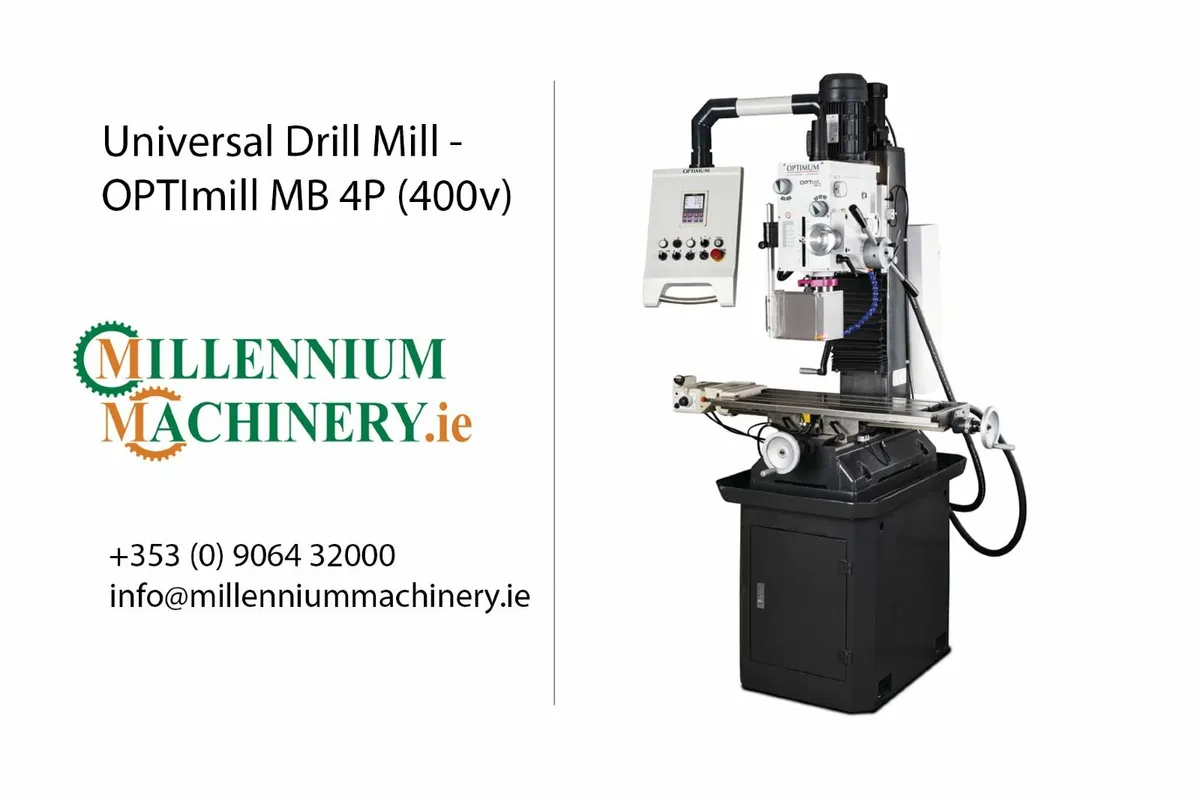

OPTImill MB 4P – Premium Universal Drilling & Milling Machine with DRO The OPTImill MB 4P is a top-tier universal drilling and milling machine, designed for serious workshops. With a heavy-duty cast iron base, DRO 5 digital position display, and motorized axis feeds, it delivers high-precision machining, reliable performance, and long-term durability. Key Features: • DRO 5 digital position indicator for X and Y axes • Robust cast iron machine base with integrated chip chute • Smooth-running gearbox with ground gears in oil bath • Two-stage quality industrial motor with 12 switchable speeds • Wide speed range: 95 – 3,200 RPM • Motorized Z-axis positioning and X-axis power feed • Automatic quill feed with manual fine adjustment • Gear head swivels ±45° for angled operations • Right/left rotation, drilling & tapping function • Large, solid cross table (800 x 240 mm) with T-slots and adjustable guides • Height-adjustable safety screen with microswitch • Drilling depth stops • Coolant system and built-in work lamp • Hand-scraped dovetail column guide for maximum stability and precision Table & Travel Capacity: • Table load capacity: 80 kg Travel: • X-axis: Manual 560 mm / Auto 480 mm • Y-axis: 195 mm • Z-axis: 350 mm T-slots: 14 mm (3 slots, 80 mm spacing) Max spindle-to-table clearance: 420 mm Dimensions & Weight: • Size: 1600 x 930 x 2110 mm • Weight: approx. 495 kg Condition: Brand new Delivery: • Fast delivery available throughout Ireland • Collection available from our showroom #MillingMachine #OPTImillMB4P #UniversalMill #DrillingMachine #MetalworkingTools #WorkshopMachinery #EngineeringWorkshop #PrecisionMachining #MachineTools #BuyMachineryIreland #IndustrialMachines #WorkshopEquipment
