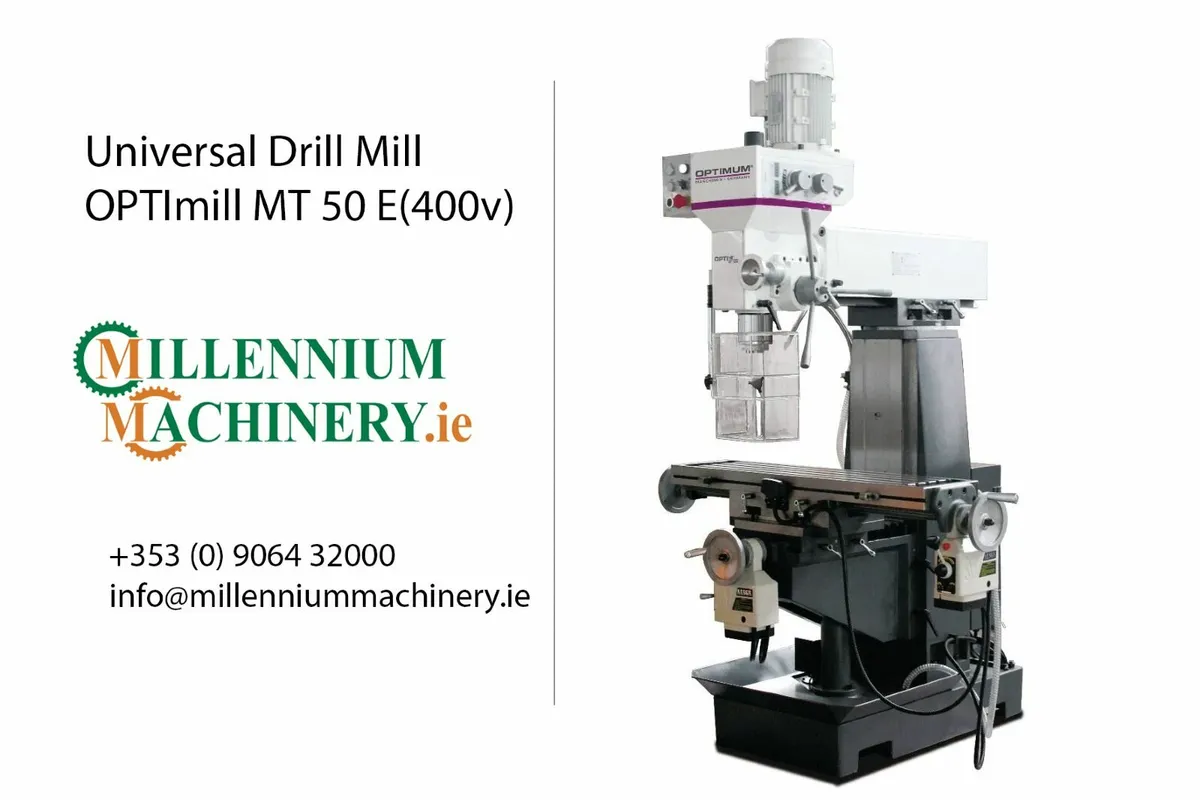

Universal Drill Mill - OPTImill MT 50 E

OPTImill MT 50E – Universal Drilling & Milling Machine with X/Y Table Feed The OPTImill MT 50E is a high-performance universal drilling and milling machine, ideal for heavy-duty workshop and industrial use. With table feed in both the X and Y axes, a solid cast design, and precise machining capability, this machine offers excellent durability and versatility for demanding tasks. Key Features: • Vibration-dampening cast design for maximum stability • Oil bath gearbox with hardened, ground gear wheels • Power feed on X and Y axes for increased efficiency • Coolant system and built-in LED work light • Large, precision-ground cross table (1000 x 240 mm) with T-slots and adjustable gibs • Adjustable guide rails and X-axis limit stop • Mechanical quill adjustment via hand lever • Right/left spindle rotation • Clutch for easy switch between coarse and fine feed • User-friendly control panel with emergency stop • Height-adjustable safety screen with microswitch for added protection • Horizontal table can rotate ±45° for angled operations Spindle & Table Capacity: • Spindle chuck: SK 40 DIN 2080 • Spindle speed range: 115 – 1,750 RPM (8-step gearbox) • Quill stroke: 120 mm • Spindle tightening bar: M16 • Vertical spindle reach: 250 – 650 mm • T-slots: 14 mm (4 slots) Max load on table: 150 kg Clearance (spindle to table): 60 mm min / 360 mm max Dimensions & Weight: • Size: 1360 x 1150 x 2080 mm • Net weight: approx. 760 kg Condition: Brand new Delivery: • Fast delivery across Ireland • Collection available from our showroom #MillingMachine #OPTImillMT50E #DrillingMachine #WorkshopMachinery #HeavyDutyMill #MachineTools #EngineeringWorkshop #MetalworkingTools #PrecisionMachining #IndustrialMachines #BuyMachineryIreland #WorkshopEquipment
