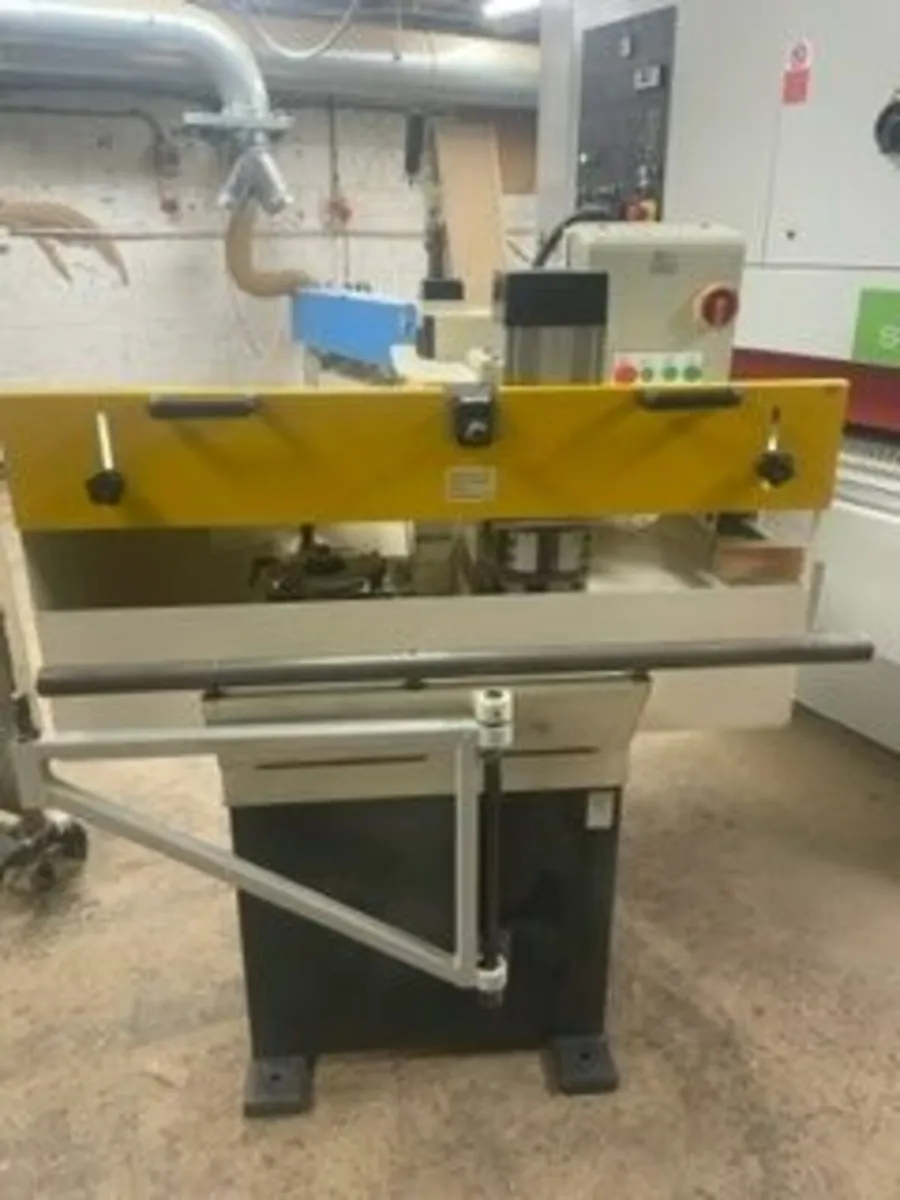

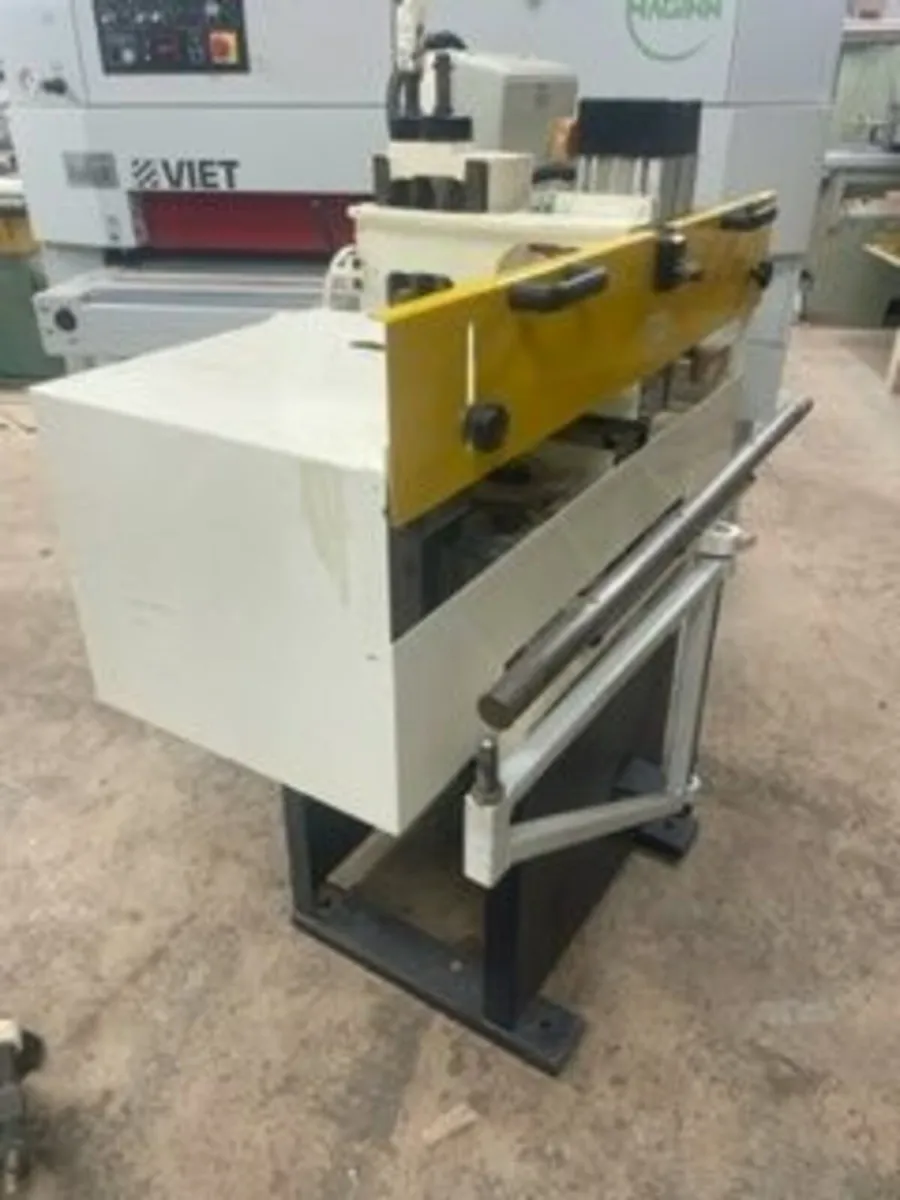

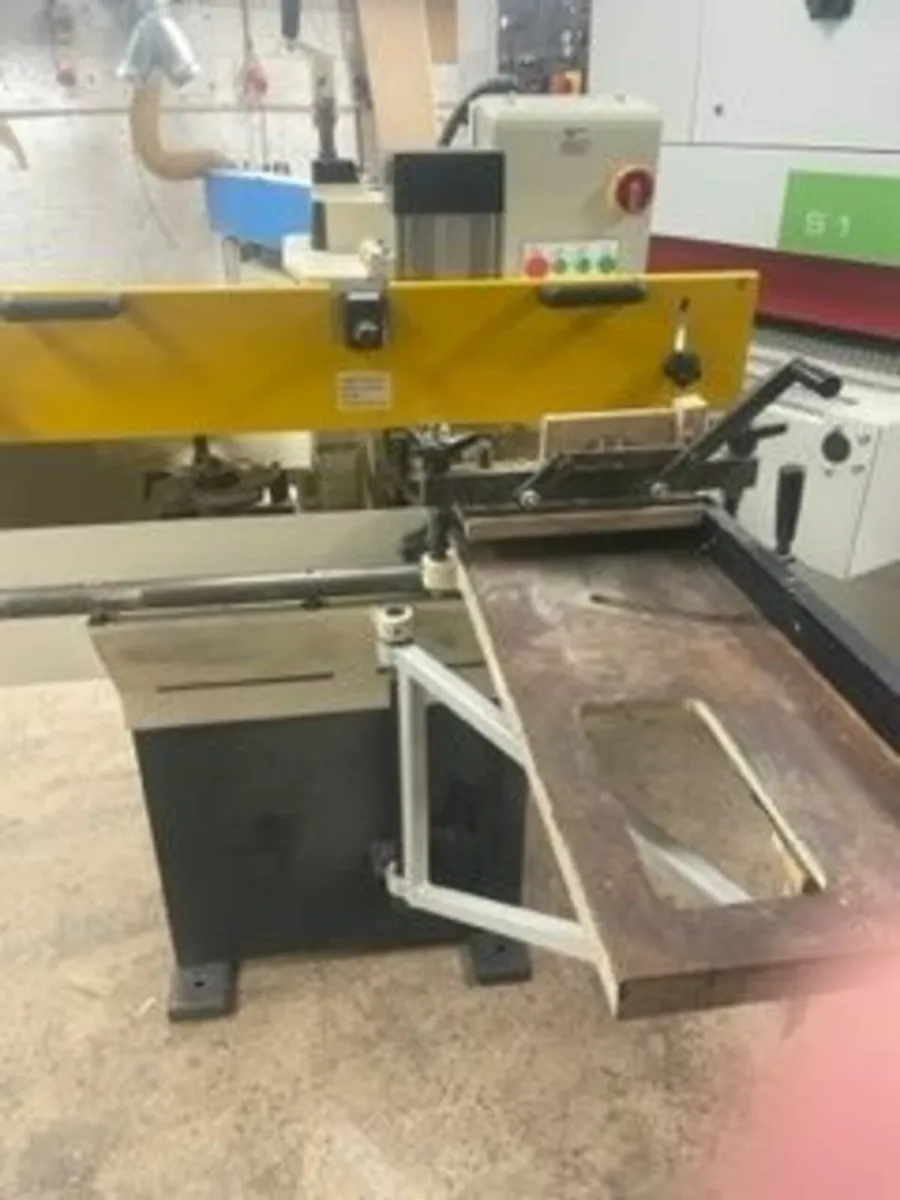

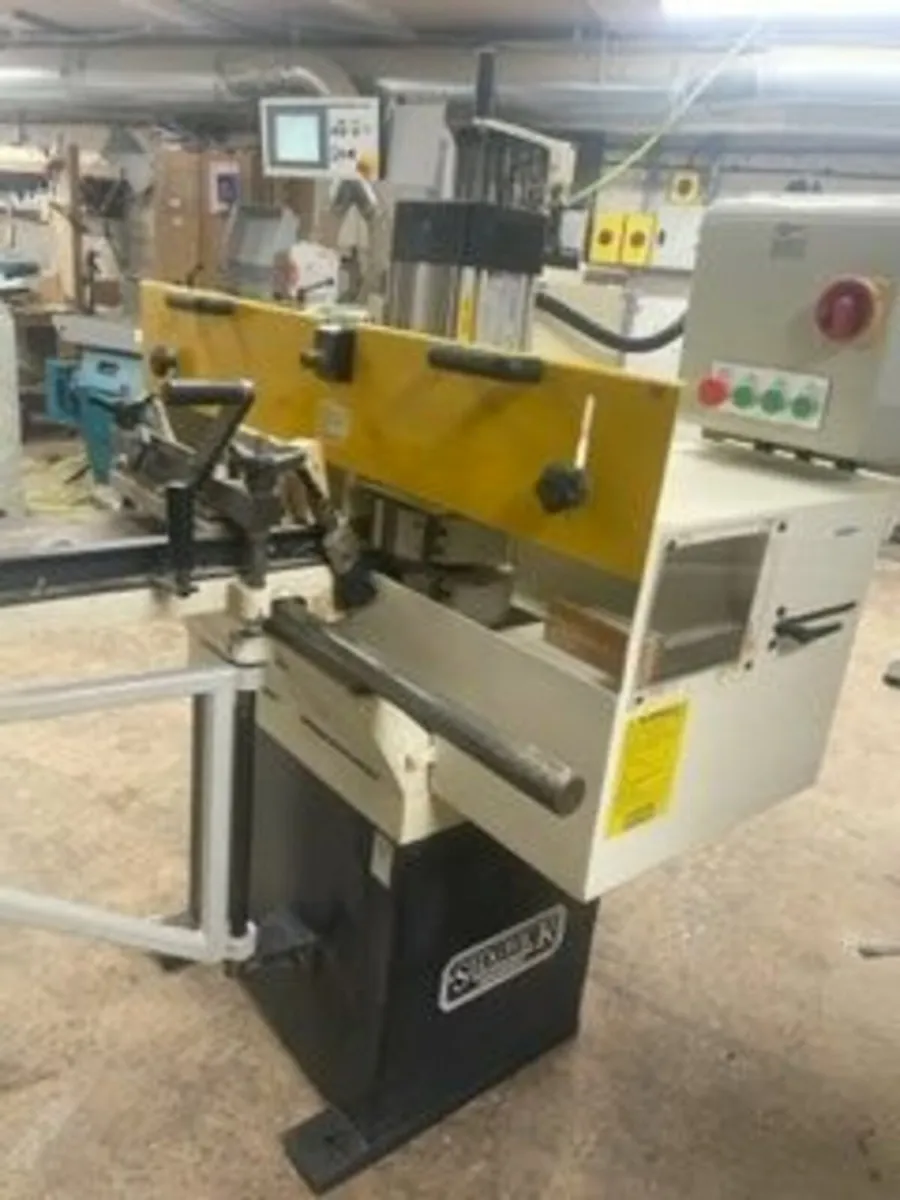

Used Sedgwick 3 Head Tenoner - Woodworking Machine

Heavy-duty tenoner designed for reliable and precise shoulder and cheek cuts. Well-maintained and ideal for workshop joinery production. Manufacturer: Sedgwick Model: TESH (3-phase) Condition: Good - fully functional and in regular working order Technical Specifications: • Timber capacity: Up to 130 mm (height) × 310 mm (width); 250 mm wide with fence at 45° • Maximum tenon length: 155 mm in a single pass; 205 mm in two passes • Main cutterheads: Two 175 mm × 60 mm blocks, each with 4 shear-cut knives and 2 spur cutters • Adjustable cutterhead positions: Top block adjustable vertically (0–120 mm) and horizontally (±32 mm) • Optional scribing head: 30 mm shaft, max tooling Ø 210 mm, vertical adjustment 0–95 mm • Table size: 800 mm × 310 mm; working height: 860 mm • Power supply: 400V / 3-phase • Motor power: 2.2 kW standard • Dust extraction outlets: Two 150 mm diameter ports • Safety features: Automatic braking, thermal overload protection, no-volt release, emergency stop • Machine weight: Approx. 350 kg Available for collection only.
