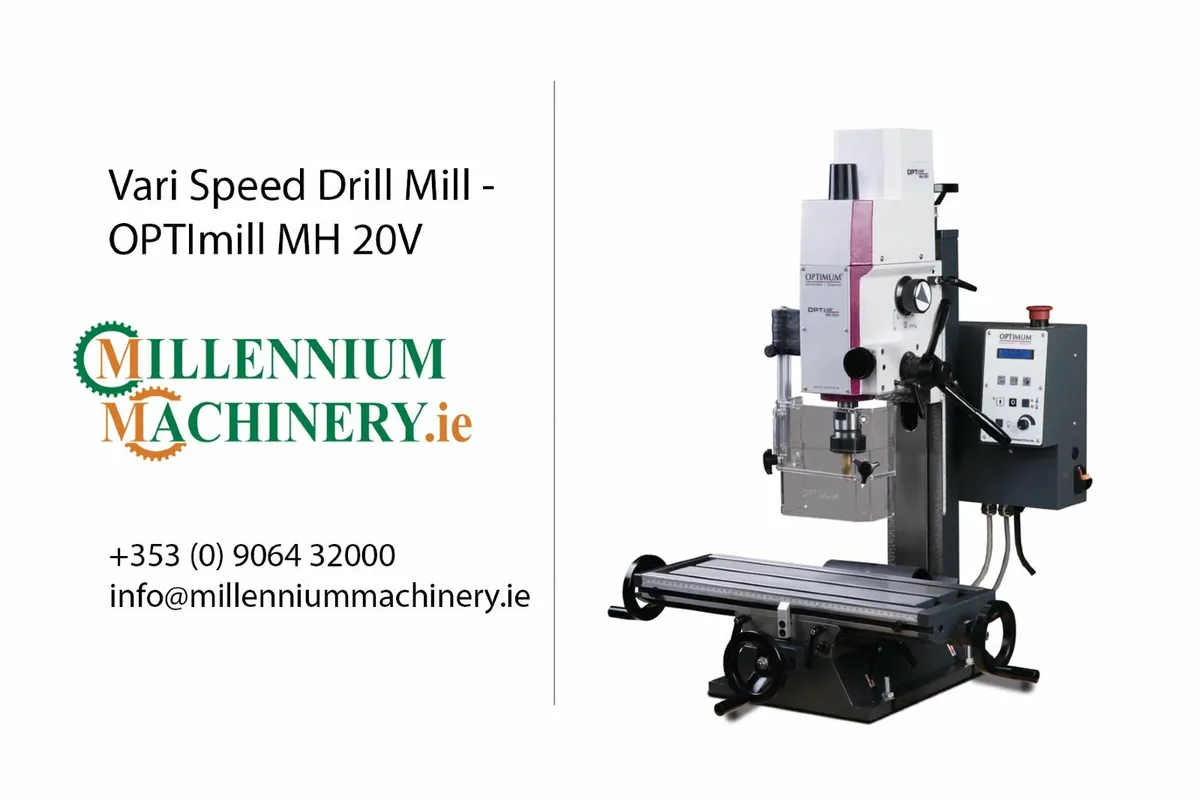

Vari Speed Drill Mill - OPTImill MH 20V

OPTImill MH 20V Drilling-Milling Machine – Precision and Power for Demanding Users A robust and precisely machined drilling-milling machine, ideal for workshops needing performance, flexibility, and reliability in one compact design. Key Features: • Electronically adjustable variable speed (100–3,000 RPM) • Two-stage gear drive for efficient power transmission • High concentricity: ≤ 0.015 mm via tapered roller bearings • Powerful DC motor with permanent current monitoring and air filter • Updated electrical system with enhanced EMC protection • 24V safety electronics and integrated relay control • Tilting head ±60° for flexible drilling and milling angles • Right/left spindle rotation and emergency stop switch • Precision dovetail guides with adjustable gibs on all axes • Play-free double-row angular contact bearings for accurate movement • Massive cross table with T-slots, adjustable stops, and gibs • Height-adjustable protective screen with microswitch for user safety • Pre-fitted for optional DRO5 digital position readout (X and Y axes) • Lockable main power switch for added security • Built-in work light included Dimensions & Capacity: • Size: 750 x 650 x 820 mm • Weight: approx. 94 kg Max drilling in steel: Ø16 mm (Ø12 mm continuous) Max milling head: Ø52 mm Max shaft milling cutter: Ø20 mm Travel: X – 280 mm, Y – 175 mm, Z – 210 mm Quill stroke: 50 mm Spindle chuck: MT2 Motor power: 0.75 kW (S6 - 30% duty) Condition: Brand new Delivery: • Fast delivery available across Ireland • Collection from our showroom also available #MillingMachine #OPTImill #DrillingMachine #MetalworkingTools #EngineeringWorkshop #MachineTools #WorkshopEquipment #IndustrialMachinery #PrecisionMachining #CompactMill #BuyMachineryIreland #EngineeringSolutions
