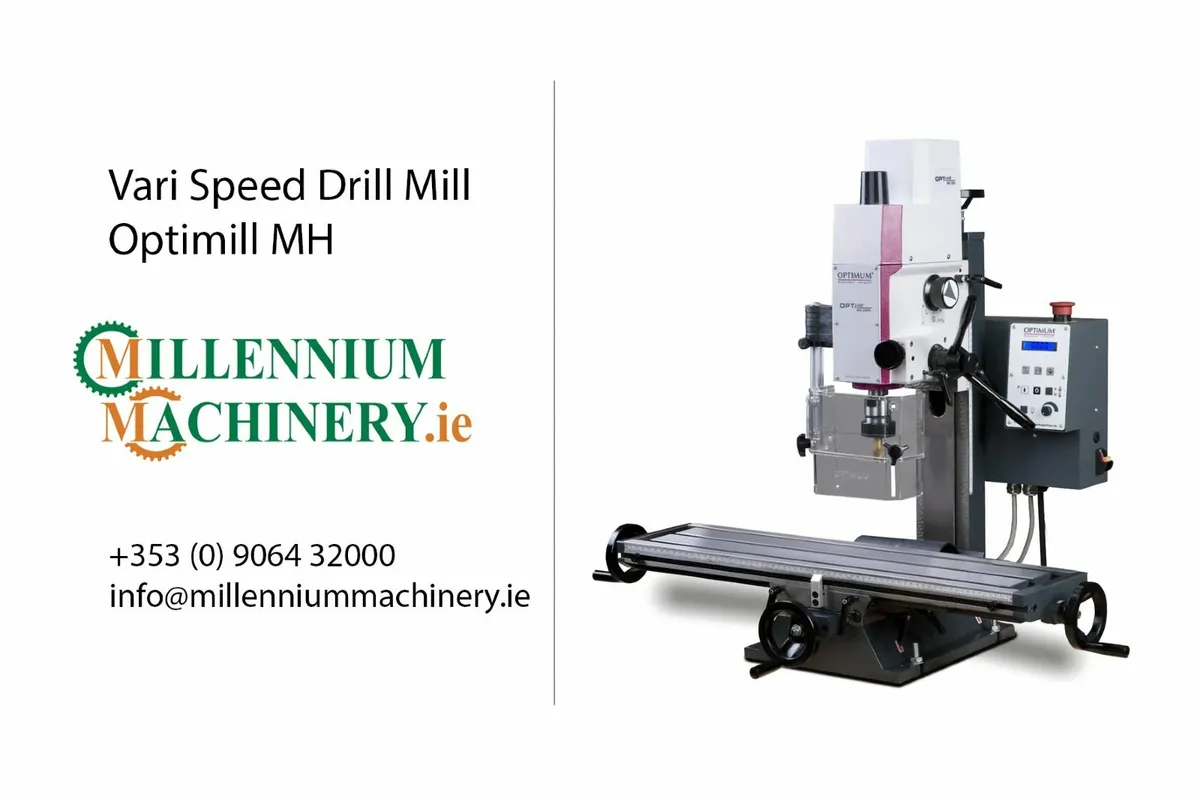

Vari Speed Drill Mill - Optimill MH 20VL

OPTImill MH 20VL Drilling-Milling Machine – Extended Travel & Precision Performance The OPTImill MH 20VL is a stable and precisely engineered drilling-milling machine with extended X-axis travel, making it ideal for advanced workshop use where accuracy and flexibility are key. Key Features: • Electronically adjustable speed range: 100 – 3,000 RPM • Two-stage gear system for high torque transmission • High concentricity (≤ 0.015 mm) with tapered roller bearings • Powerful DC motor with continuous current monitoring • Motor air filter and EMC-compliant electrical system • Upgraded motor protection with extended control board • 24V safety electrics and integrated relay control • Cross table with T-slots, adjustable gibs, and end stops • Extra-long 480 mm X-axis travel for added workspace • Stable dovetail guides and adjustable spindle play • Tilting milling head ±60° for angled operations • Right/left spindle rotation, machine lamp, emergency stop • Play-free double-row angular contact bearings in all axes • Protective screen with microswitch for user safety • Prepped for DRO5 digital readout (X and Y axes) • Lockable main power switch Dimensions & Capacity: • Machine size: 770 x 714 x 917 mm • Net weight: approx. 99 kg Max drilling in steel: Ø16 mm (Ø12 mm continuous) Max milling head: Ø52 mm Max shaft milling cutter: Ø20 mm Travel: X – 480 mm, Y – 175 mm, Z – 210 mm Quill stroke: 50 mm Spindle chuck: MT2 Motor: 0.75 kW (S6 - 30% duty cycle) Condition: Brand new Delivery: • Fast delivery across Ireland • Collection available from our showroom #MillingMachine #OPTImillMH20VL #DrillingMachine #PrecisionMachining #MetalworkingMachines #WorkshopTools #EngineeringWorkshop #MachineTools #BuyMachineryIreland #XaxisTravel #WorkshopEquipment
