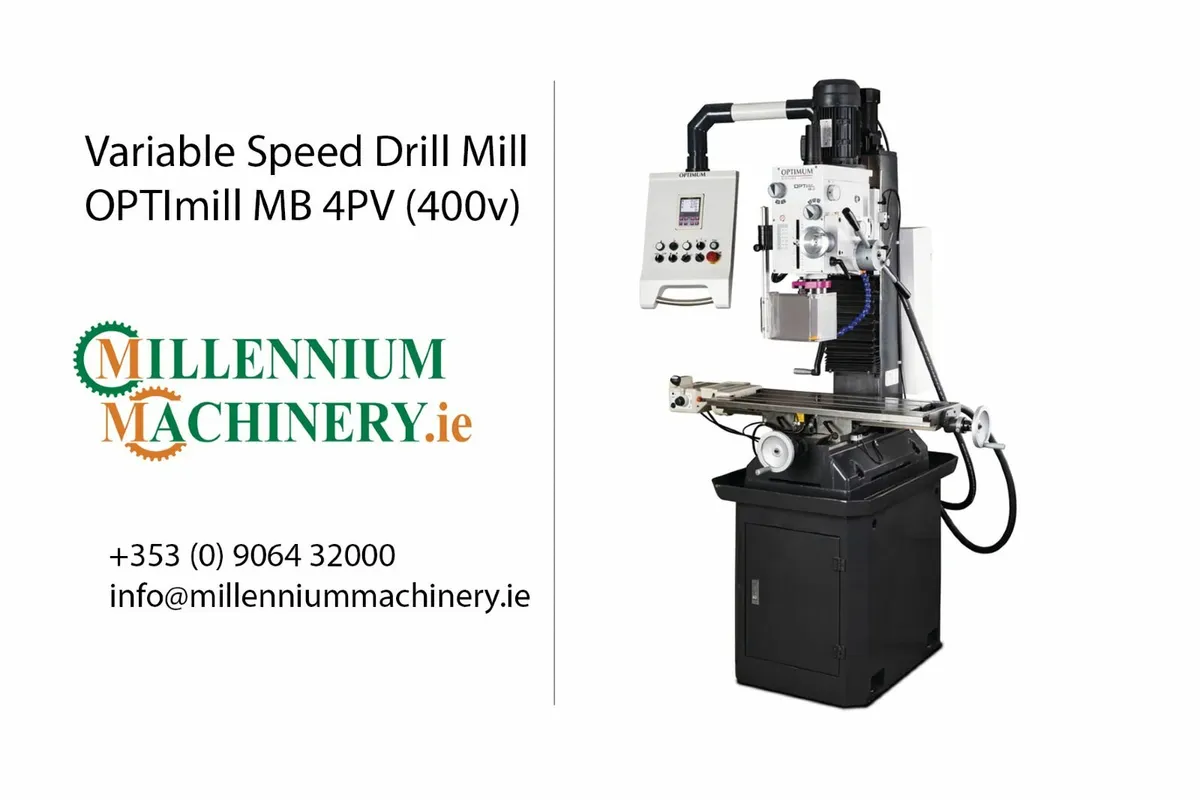

Variable Speed Drill Mill - OPTImill MB 4PV

OPTImill MB 4PV – Variable-Speed Universal Drilling & Milling Machine with DRO & Inverter The OPTImill MB 4PV is a premium-grade universal milling and drilling machine featuring a SINAMICS V20 Siemens inverter, DRO 5 digital readout, and infinitely variable speed control. Built for industrial use, this machine combines precision, power, and durability in a robust cast iron body. Key Features: • Electronically variable speed (60 – 2,760 RPM) with 2-stage range • SIEMENS SINAMICS V20 inverter for smooth, efficient power delivery • DRO 5 digital position indicator included (X and Y axes) • Solid cast iron base with integrated chip chute • High-torque single-stage industrial electric motor • Ground gear wheels in oil bath for smooth, quiet operation • Right/left spindle rotation, drilling and tapping functionality • Automatic quill feed with manual fine feed • Motorized X-axis feed and motorized Z-axis positioning • Large, precisely finished cross table (800 x 240 mm) with T-slots • Adjustable guides and keyways for maximum accuracy • Spindle head swivels ±45° for angled machining • Drilling depth stop, machine lamp, and coolant system • Protective screen with microswitch for operator safety • Hand-scraped dovetail column guide for unmatched stability Spindle & Table Specs: • Spindle chuck: MT4 • Spindle reach: 258 mm • Quill stroke: 120 mm • Quill diameter: 75 mm • Spindle tightening bar: M16 • Max spindle-to-table clearance: 420 mm • T-slots: 14 mm (3 slots, 80 mm spacing) Travel: • X-axis travel: Manual 560 mm / Motorized 480 mm • Y-axis travel: 195 mm • Z-axis travel: 350 mm Dimensions & Weight: • Machine size: 1600 x 930 x 2110 mm • Net weight: approx. 495 kg Condition: Brand new Delivery: • Fast delivery available across Ireland • Collection from our showroom welcome #MillingMachine #OPTImillMB4PV #VariableSpeedMill #SINAMICSV20 #DrillingMachine #WorkshopMachinery #DRO5 #SiemensInverter #EngineeringWorkshop #PrecisionMachining #MachineTools #MetalworkingMa
