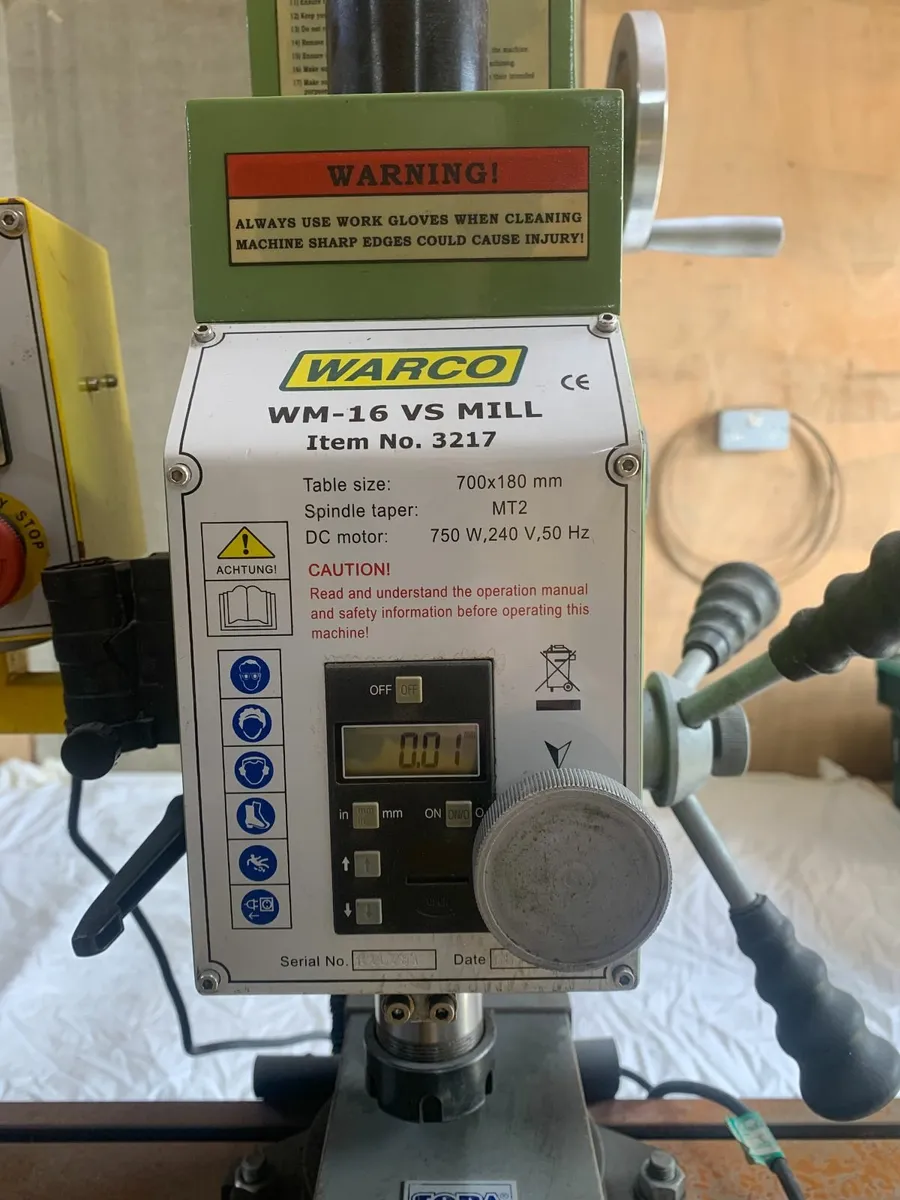

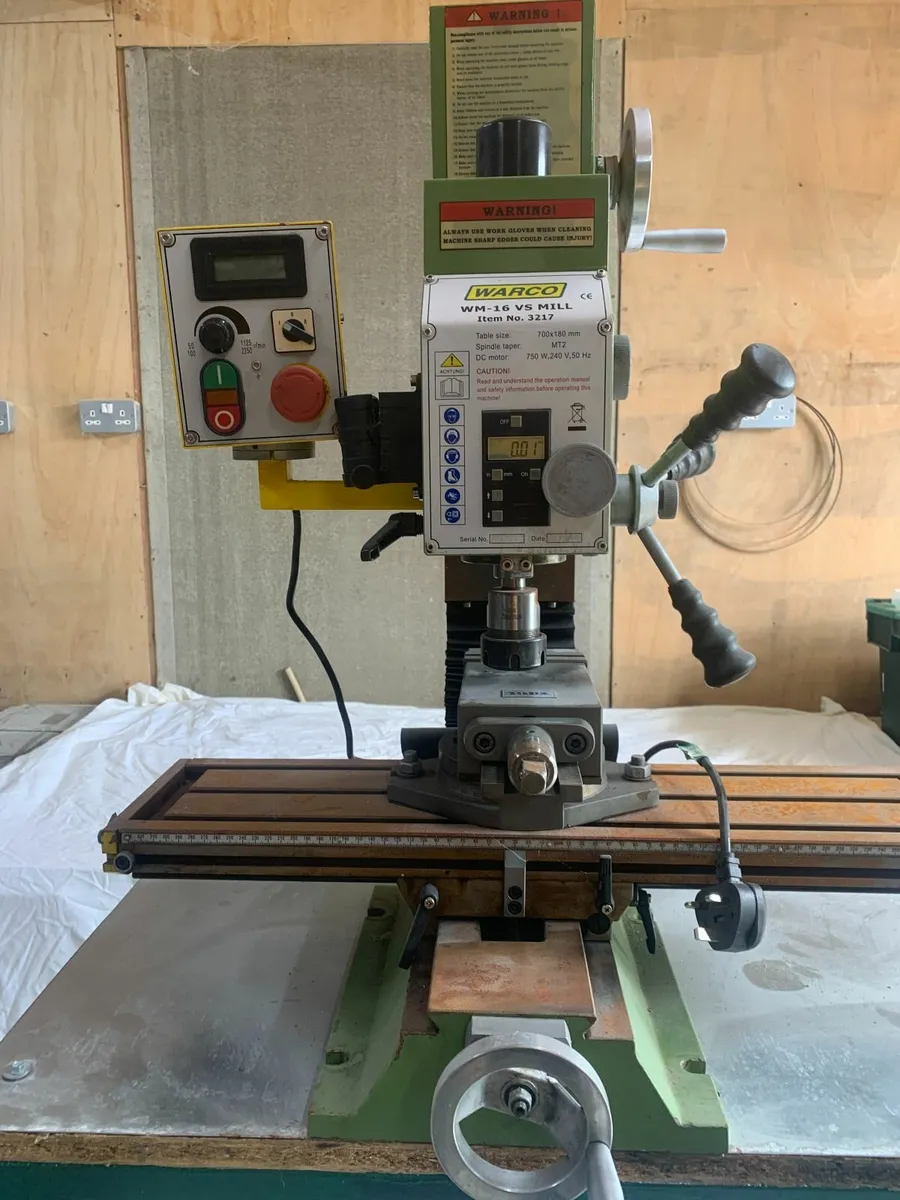

WM16 Milling Machine

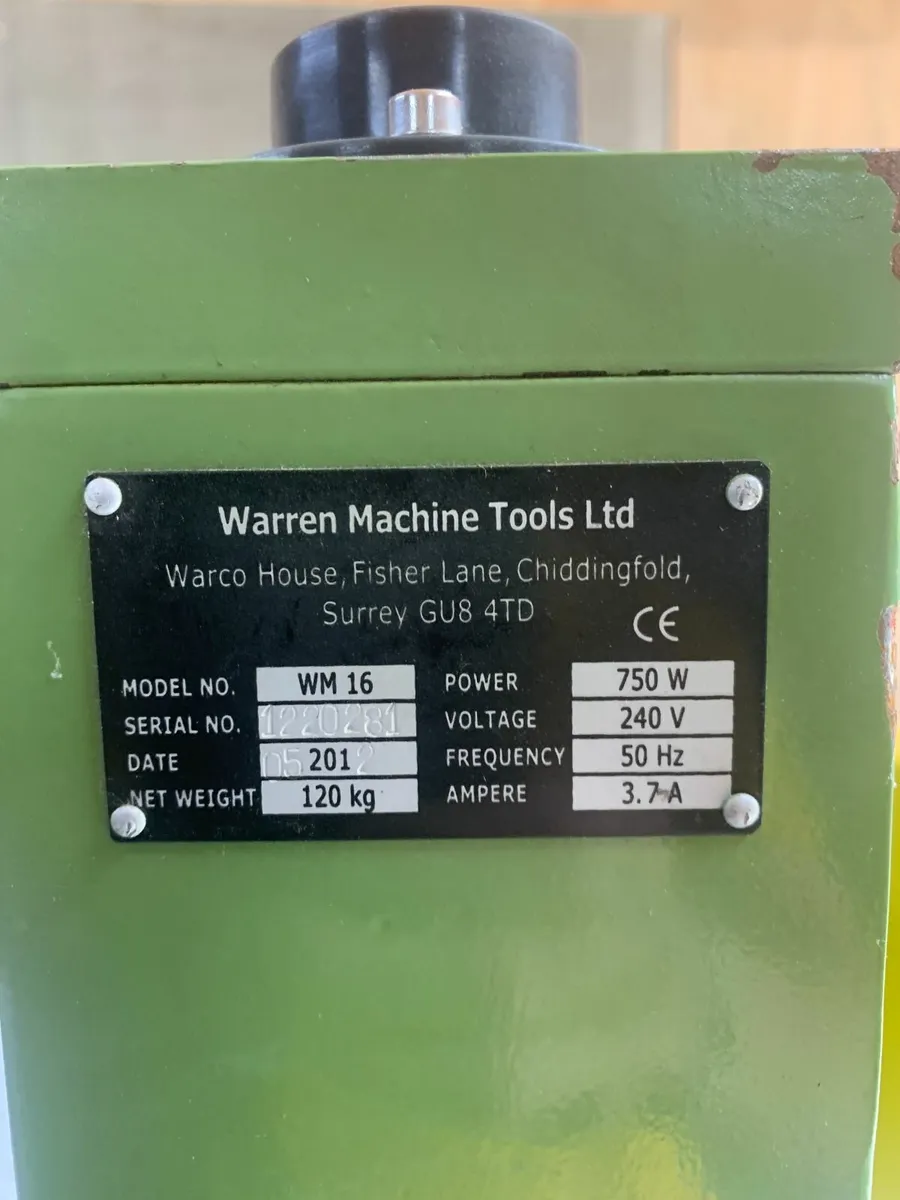

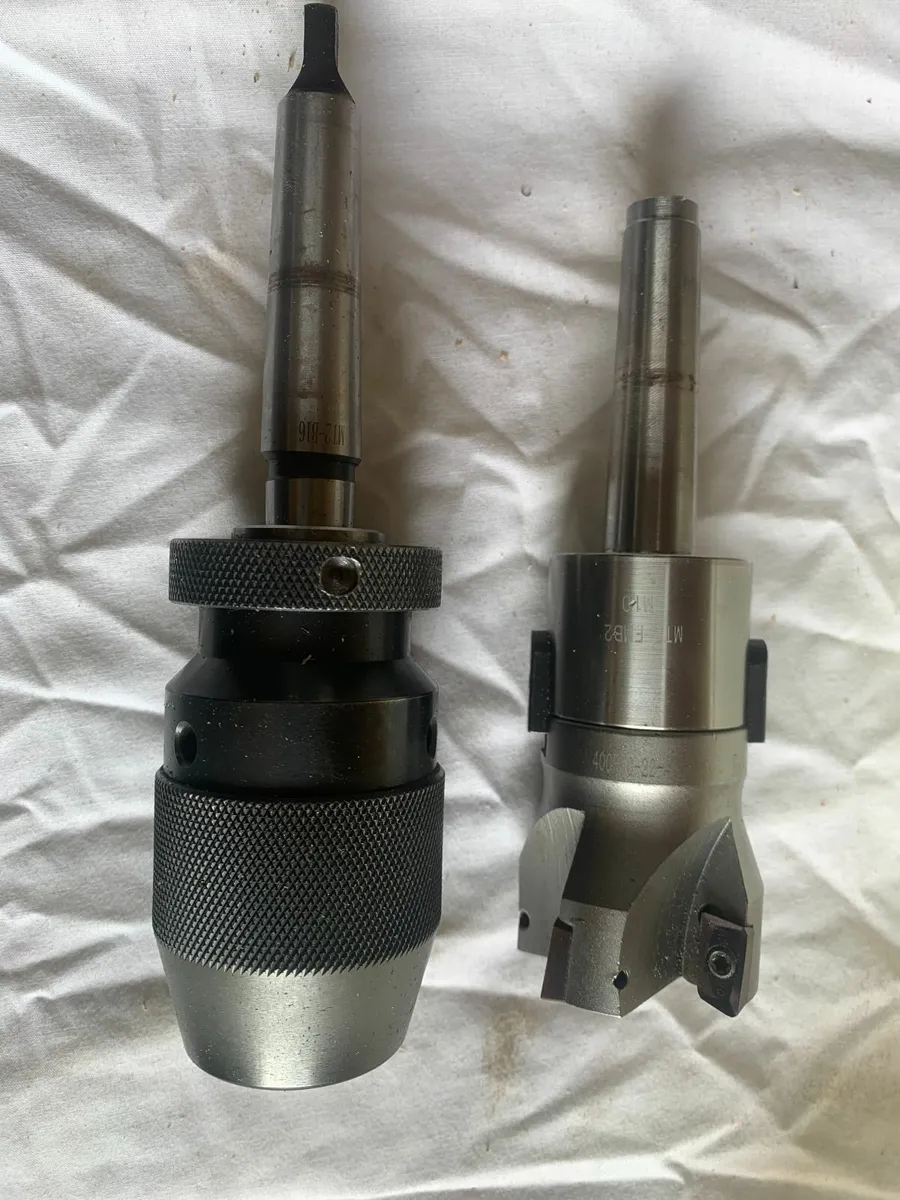

On heavy duty stand with castors. Plus extras. Sold as one lot! Full Specification Machine: 3217R Range WM16 Mills Product Dimensions: Weight 150KG Length x Width x Height 1030 X 600 X 955mm Tray Length x Depth 525 x 480 Shipping Dimensions Length x Width x Height 705 x 705 x 890mm Power/Motor Motor size 900W Power Transfer (GH) gearbox or (VS) variable speed VS Voltage (240v single) (440v 3 Phase) 240V Fitment (Plug connection type) 3 Pin Plug Current 50hz 3.9A Spindle speeds (No: and achievable speeds) 50-1500 / 100-3000rpm Main Specifications Table size 700 x 180mm Longitudinal travel (X) 500mm Cross Table travel (Y) 183mm Head Travel or Knee (Z) 255mm Quill/Spindle stroke 50mm Distance spindle to table 300mm Throat (Spindle middle to Column) 160mm Table height from base 185mm Spindle Taper size and thread R8 7/16 unf Head tilt left to right and Head tilt front to back 90-90 (45-45 calibrated) Drilling capacity 16mm Milling capacity 20mm Spindle Bearing type Taper Roller Other Specifications Country of origin China Warranty 12 Months Approximated assembly and setup time 30 mins CE approved Certificate CE CERT No.6 07/02/23 Additional products Optional stand 3207DL Optional power feed 3205.16 Optional Digital Read Out Kit 8123 dro X axis scale (left to right) 500mm Y axis scale (forward to back) 200mm Z axis scale (head) 300mm Tee Nut size and no of slots AA=12 B=17.5 C=6.5 D=7.5mm (3 SLOTS) 9523 M10 Machine/Stand Hole positions A=320 B=22 C=75 D=30mm
