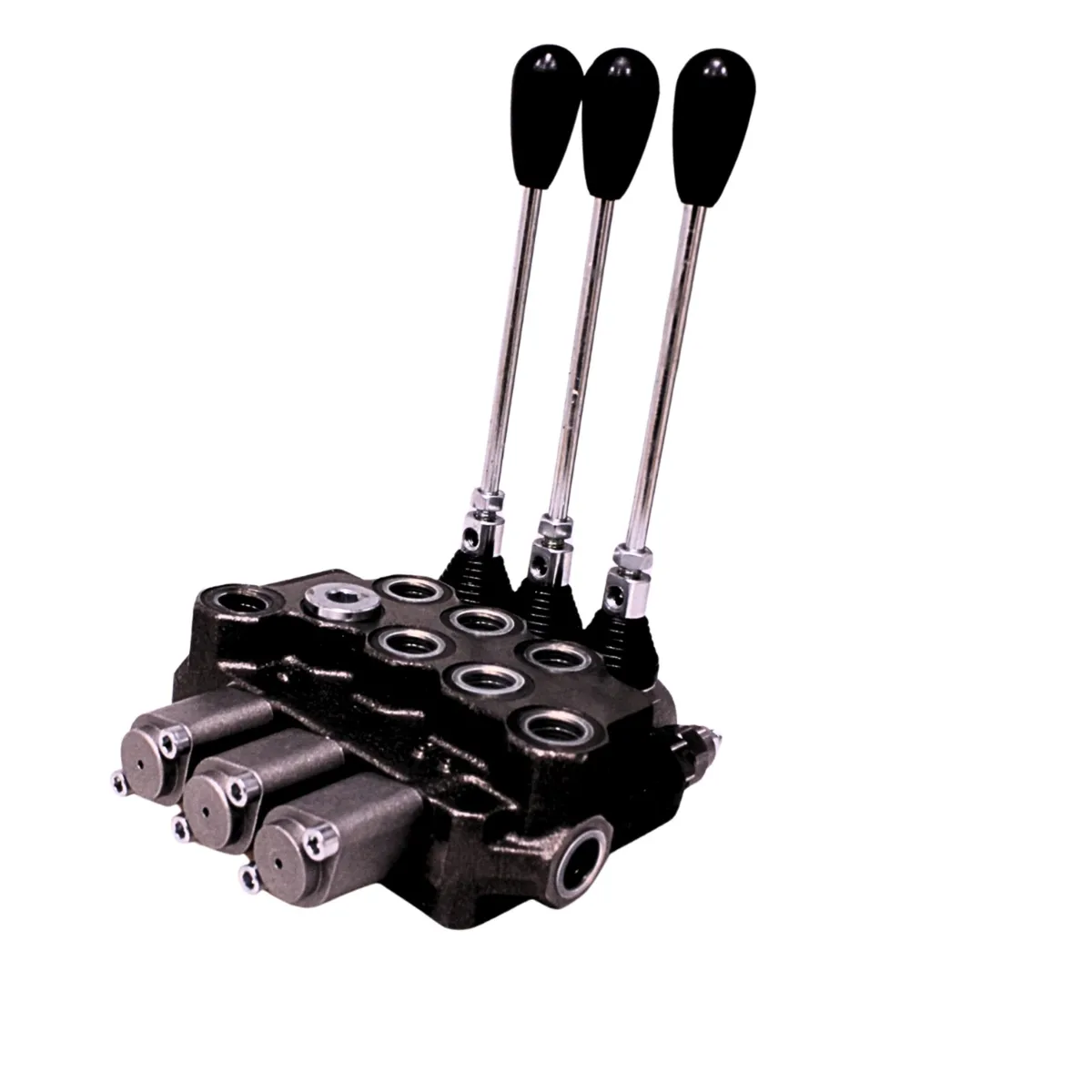

Hydraulic Monoblock Valve Block — 3 Manual Lever

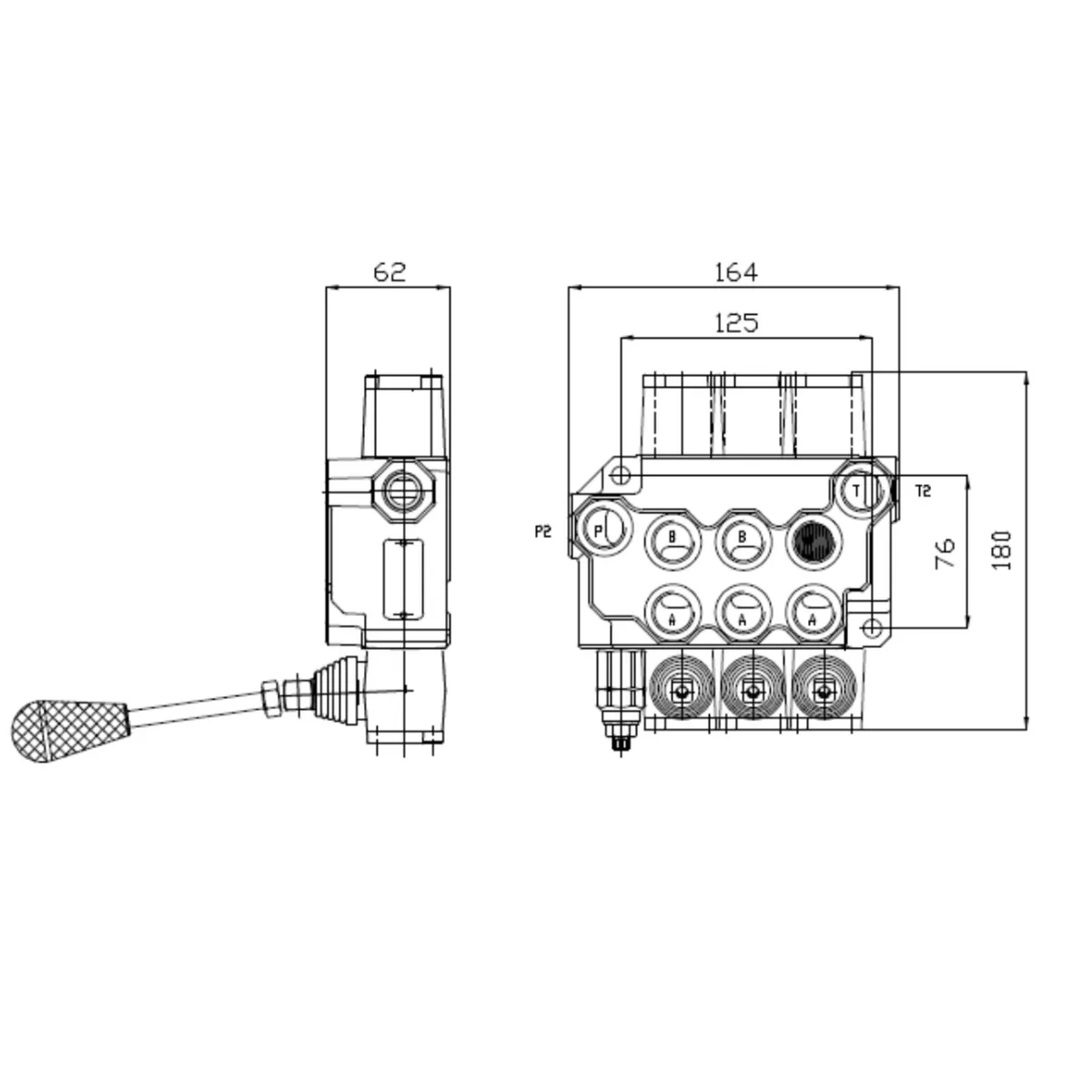

BLB BM50/3 Series 3-Spool Hydraulic Monoblock Valve Block with 3 manual lever operation. Italian-made, cast iron body — no tie rods or intermediate seals low maintenance and long service life. New old stock, available from Irish stock in Naas. TECHNICAL SPECIFICATIONS: - Model: BLB BM50/3 (Part Code: 952122) - Spools: 3 spool, 3 lever manual control - Nominal flow: 50 l/min (13 GPM) - Nominal pressure: 250 bar (3,600 PSI) - Max pressure on ports: 320 bar (4,700 PSI) - Max tank line pressure: 80 bar (1,100 PSI) - Port threads (all ports): 1/2" BSP / SAE 10 - Internal leakage: 4–8 cc/min - Body: Cast iron monoblock - Prepared for Power Beyond (high-pressure carry over) - 2 inlet and outlet ports DIMENSIONS: - Overall length: 164mm - Inner length: 125mm - Height: 180mm | Width: 62mm | Depth: 76mm SUITABLE FOR: Agricultural tractors, construction equipment, and industrial hydraulic systems. CONDITION: New — clearance stock PRICE: €120 (was €202.50) — VAT invoice available Contact Hydraquip Ltd., Naas, Co. Kildare Tel: +353 45 438415 | Mon–Thu 8:30–5pm, Fri 8:30–4pm www.hydraquip.ie
