2 no. Schwarzmüller Trailers

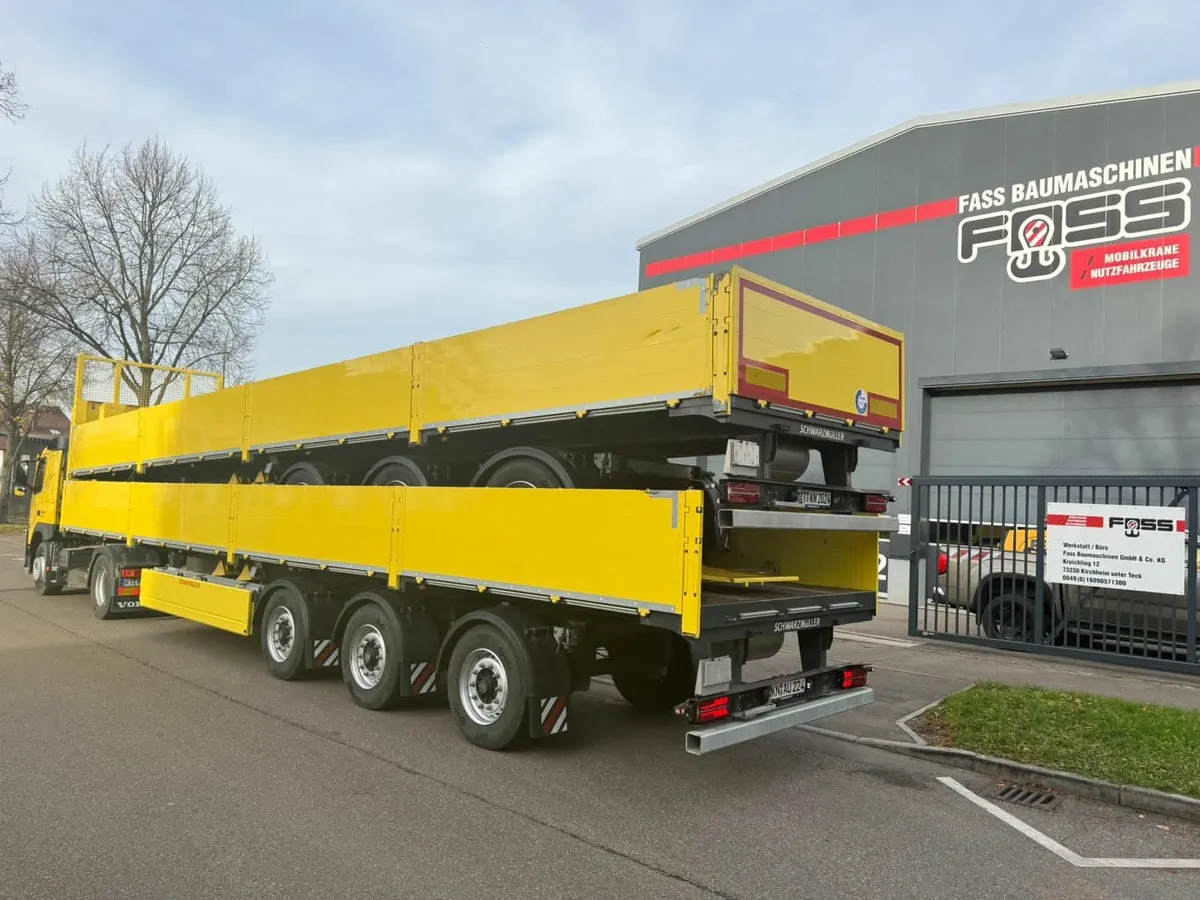

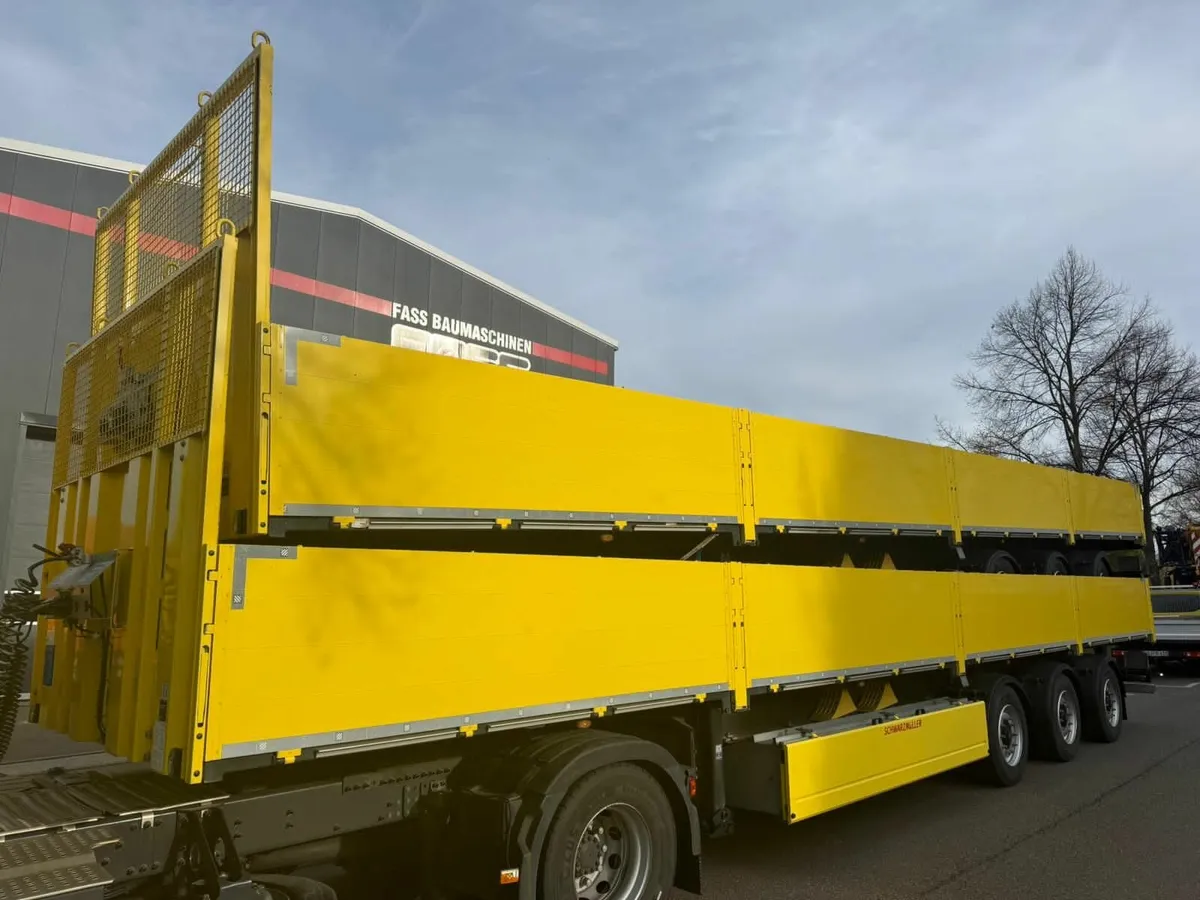

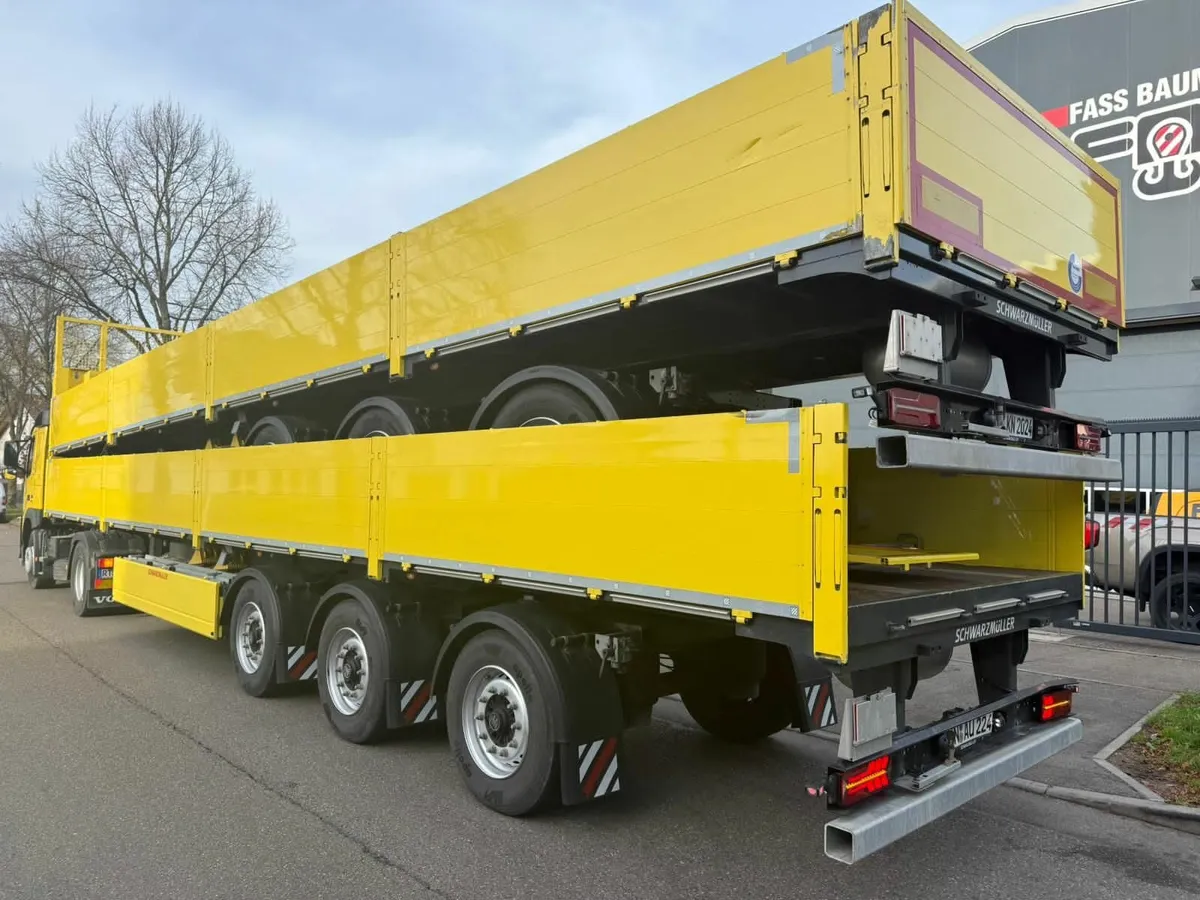

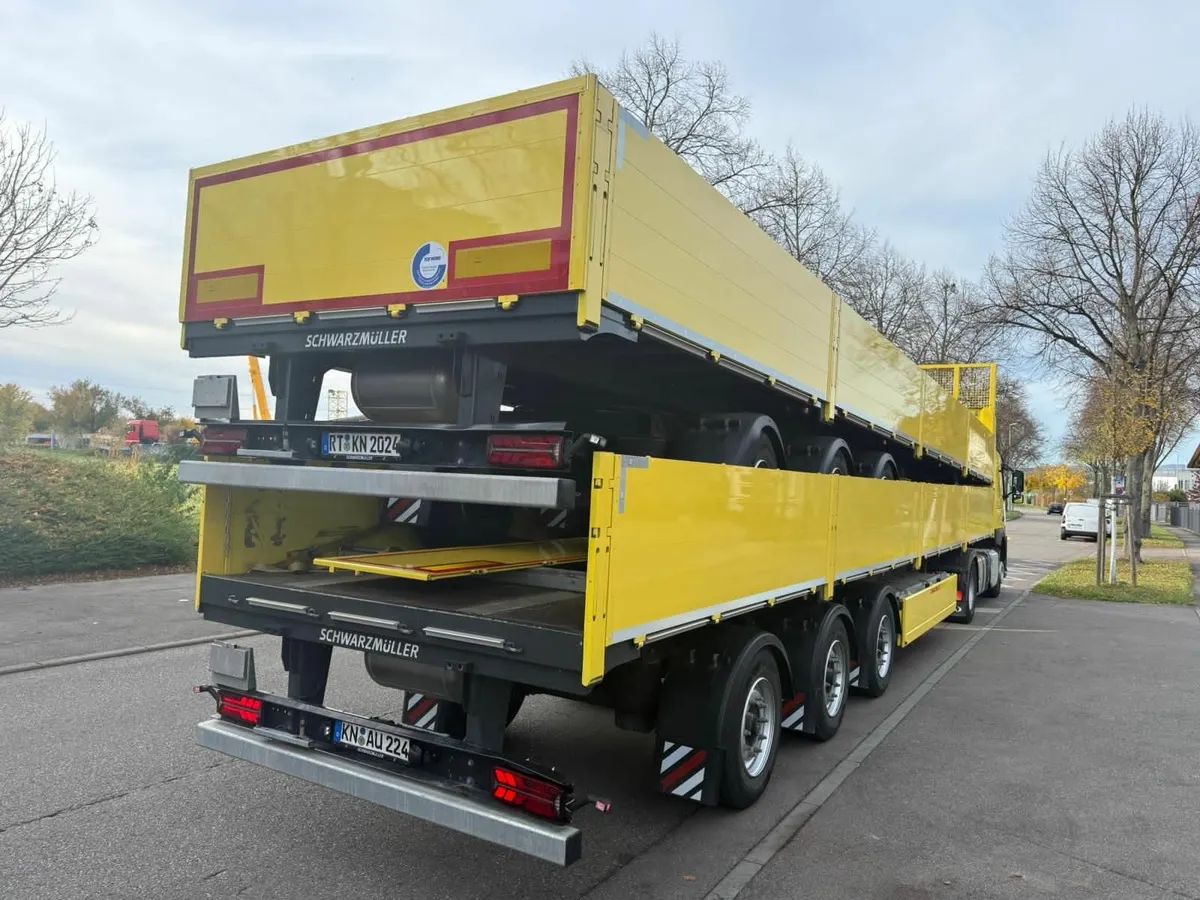

🚨 For Sale 🚨 2 no. 2024 Schwarzmüller 3-AXLE Semi-Trailers RH230 Force-steered Two identical trailers: VIN No. : VAVJS1339PH522406 VAVJS1339PH522408 Total weight (technical)39t Axle unit load (technical)27t 5th wheel load (technical)12t Inner length approx.13,500 mm Inner width 2,480 mm Total width 2,550 mm 2" king pin Semi-trailer height unloaded approx. 1,120 mm - approx. 1,200 mm with air-sprung tractor unit Perforated outer frame 4mm with hole-centre spacing approx.100mm, elongated hole 50/30mm, for lashing 3.5t per lashing point 10 pairs of 5t lashing brackets, recessed in the floor, fold-up & outwards 8 pairs of tube bolsters with plug-in sockets 80x80mm, on both sides of the outer frame 6 pieces of shaped tube bolsters with plug-in sockets 80x80mm, across the entire width, max. tensile force 2000 daN BPW EcoDisc axles, disc brakes ø430mm (22.5" disc), Load capacity 9 t per axle. Axle 1: Fixed / Lift automatically raises & lowers depending on weight, Axles 2 & 3: Bogies for forced steering. Forced steering "Tridec TR" on two turntable-steered axles, for heavy-duty use Automatic forced steering, front semi-trailer swivel platform with steering wedge. Central lubrication points for steering on the front semi-trailer swivel platform & at the rear of the bogie Speed-limited starting aid Brakes / Suspension: RDF system 2S2M, one axis sensed RSS/RSP Stability Program Spring-loaded park brake on 2 axles Aluminum Air Tanks Brake/air connections with Quattromatic quick coupling EBS/ABS socket at the front Air suspension with lift/ lower device, total stroke approx.200mm Auto adjustment to programmed driving level from 15km/h SAFETY SYSTEMS Axle load indicator via EBS Canbus signal with cab display. SmartBoard from Wabco for reading data via display (mileage, axle unit load, brake diagnostics, etc.) Aluminium forklift protection strip on the outer frame, both sides & rear. Available immediately for sale and delivery. Contact me if interested.
