Car Trailer (construction platform plant trailer)

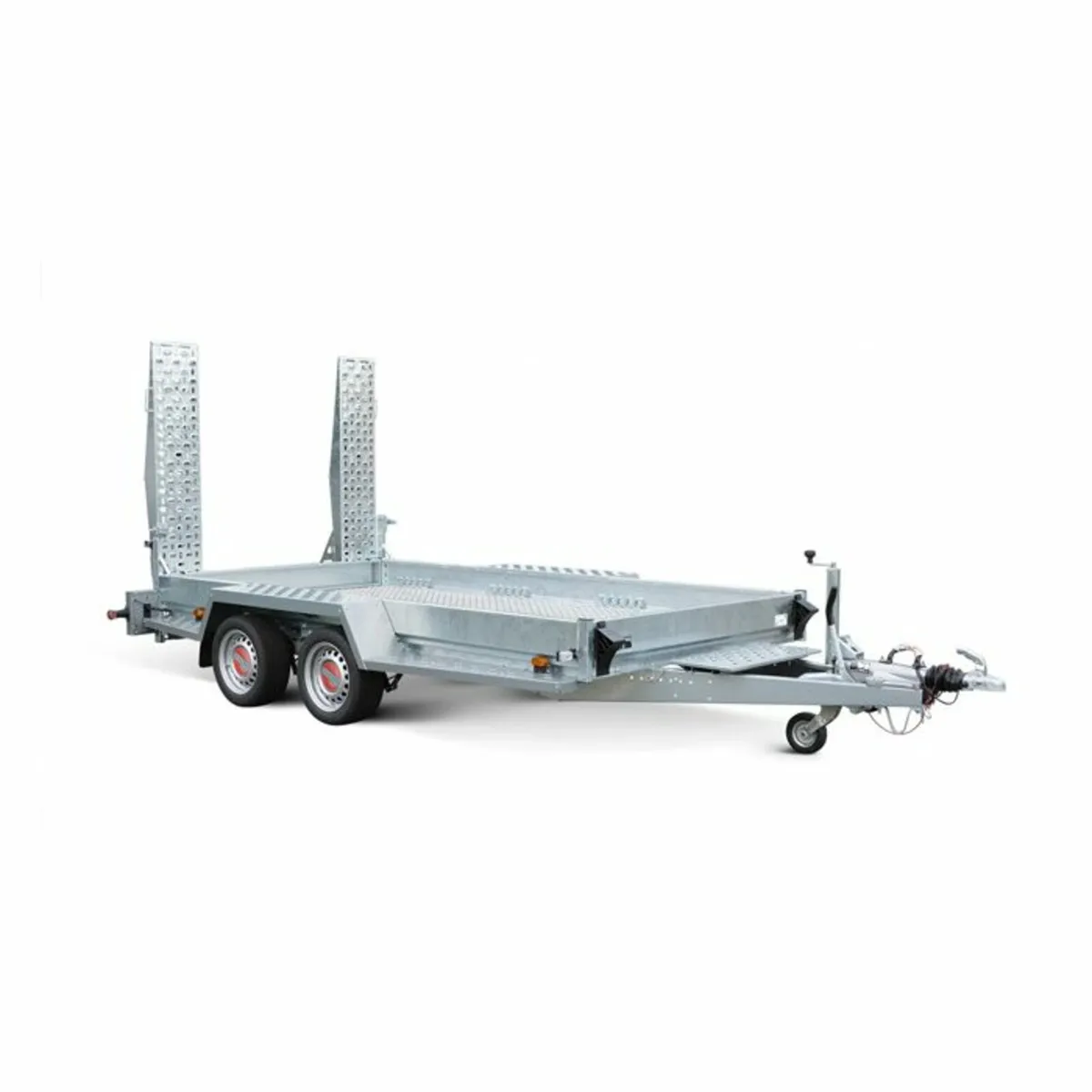

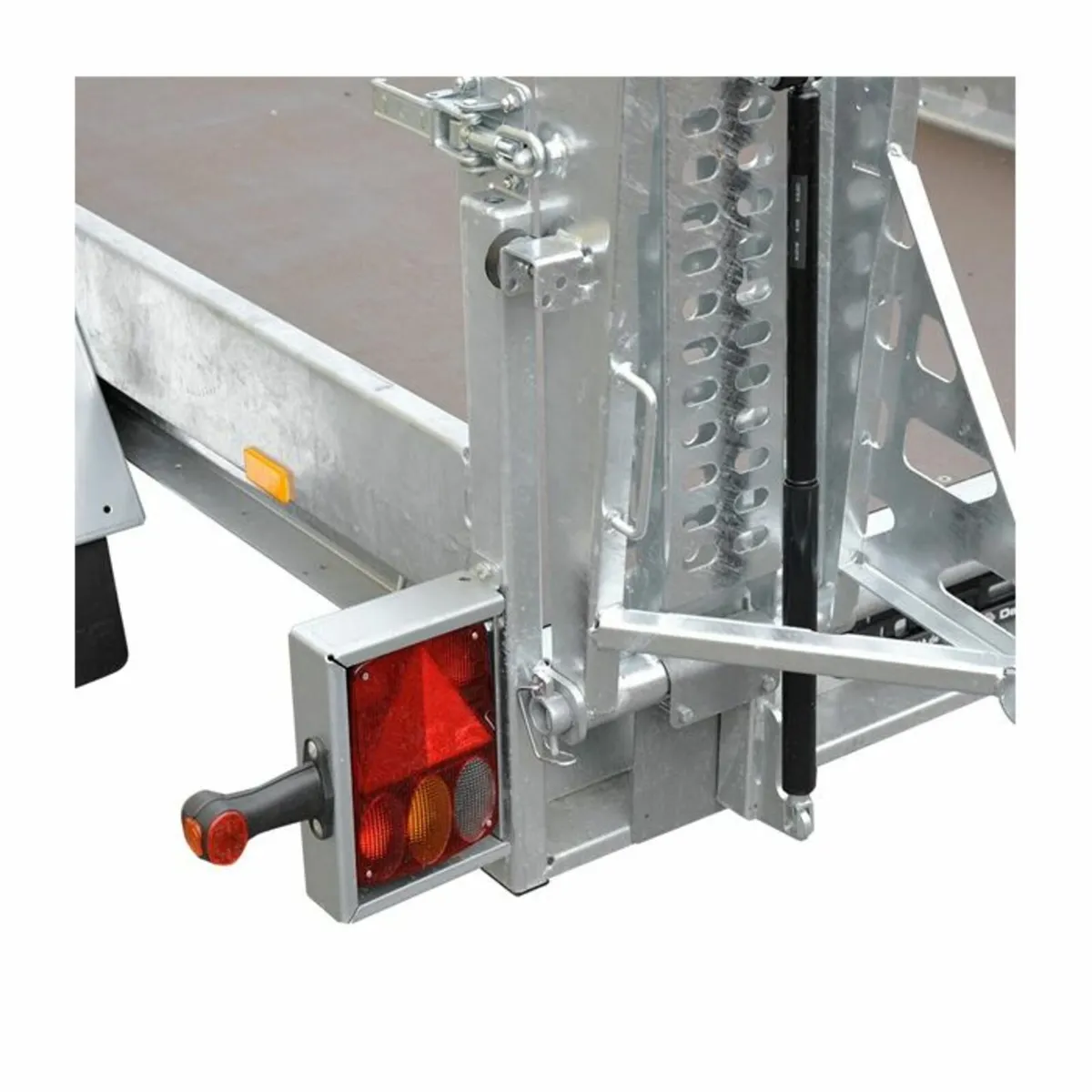

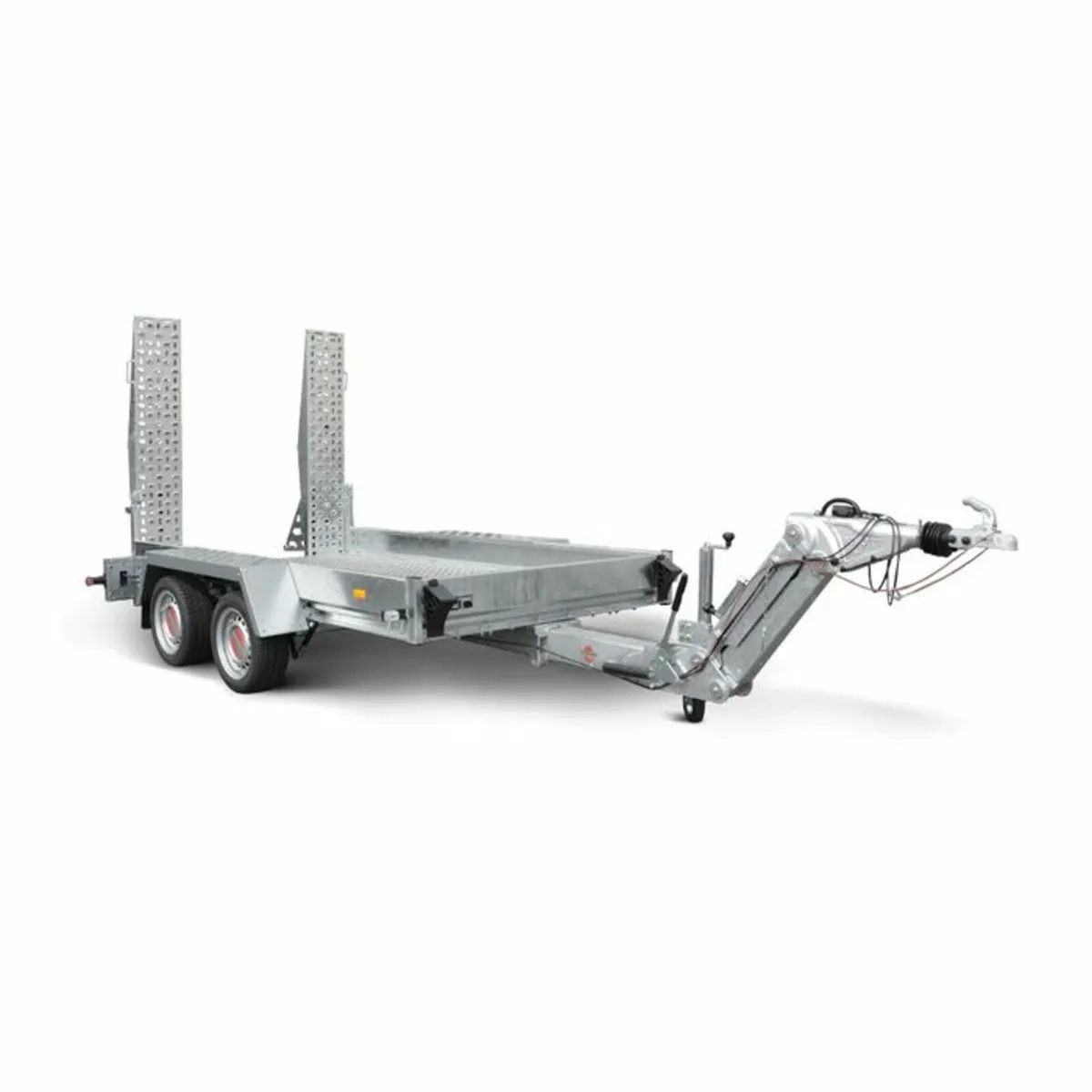

https://cartrailer.ie/product/bauma-construction-platform-plant-trailer/ With its robust construction featuring a welded and hot-dip galvanized carrier system, along with solid steel access planks, the BAUMA ensures maximum safety for every operator. Additionally, the BAUMA enhances operational efficiency with optional tread plates, access steps, and shovel storage, facilitating seamless loading and unloading processes. DIMENSIONS Platform dimensions 400 × 180 cm Outer dimensions 599 × 243 × 46 cm Loading height 46 cm LOAD & WEIGHT Payload 2650kg Total weight 3500kg MISC. Rim size 13" Low loader ADDITIONAL FEATURES Braked, Support wheel, Damper ACCESS RAMPS & SHAFTS 2 steel ramps, laterally moveable (1-100 cm), with additional pneumatic spring as lifting aid Stable support per ramp Secure tension fasteners Side wall and railing Front and side walls out of welded black plate 20 cm high welded sides CHASSIS & FRAME Optimum road handling with test track-proofed chassis with STEMA safety V-drawbar Ball head coupling with safety display Fully hot-dip galvanization Screw-welded chassis Welded and in immersion bath hot-dip galvanised frame of sturdy steel sheet 4 additional longitudinal beams ensure the optimal load distribution LASHING & SECURING 4 each welded lashing tracks, each with 1000 daN (tested according to DIN 75410-1) on the side walls of the loading surface LIGHTING EQUIPMENT Modern multi-functional lighting With backup lights With rear fog lamp With contour lights for more safety 13-pole socket, EC equipment LOADING AREA & FLOORING Continuous, anti-slip and waterproof screen printed wooden floor 18 mm thick WHEELS & AXLES 18 mm thick Maintenance-free compact wheel bearing Wheel chock with holder
